3
SELECTING THE CORRECT
JET PUMP SYSTEM
It is important to determine which jet pump system you
need. A jet pump is a centrifugal pump with a jet (ejec-
tor) assembly. Goulds Water Technology sells three types
of jet pumps:
Shallow Well Jet Pumps with built-in jet assemblies for
maximum lift of 25'. See Fig. 1
Convertible Jet Pumps can be used for Shallow wells (to
25'), with a bolt on shallow well adapter; or deep well
(over 25') applications with a jet assembly in the well.
See Fig. 1, 2 and 3.
Deep Well Jets should only be used on deep well (over
25') applications with the appropriate jet assembly.
See Fig. 2 and 3
Use a shallow well pump or a convertible pump with a
Shallow Well Adapter for wells with a maximum suction
lift of 25'. This 25' includes actual vertical lift plus friction
loss in the suction piping. Shallow well systems are iden-
tied by one (1) pipe going to the well, lake or river. They
are good for city water booster systems and pumping
from cisterns or tanks. See Typical Installations, Figs. 1, 5
and 6.
Deep well jet pumps are used for lifts greater than 25'
and must have two pipes going to the well. There are two
types of deep well jet assemblies, twin-pipe and packer
systems. Deep well pumps come in both vertical and
horizontal designs and in single and multi-stage models.
See Typical Installation Drawing, Fig. 2 and 3.
Consult with your Professional Dealer or Distributor to
select the best pump system for your application.
• Liquid temperature must not exceed 140° F (60°C).
• Protect unit from freezing
SHALLOW WELL
SYSTEM
TWIN PIPE
DEEP WELL SYSTEM
PACKER
DEEP WELL SYSTEM
Vertical
SJ or VJ
Horizontal
J, JRD, HSJ
Requires:
• Pump
• Tank
• Packer Adapter
(for well head)
• Packer Jet Assembly
• Pressure
Control Valve
(order separately for
horizontal models,
supplied with vertical
pumps).
Vertical
SJ or VJ
Horizontal
J, JRD, HSJ
Requires:
• Pump
• Tank
• Twin Pipe
Jet Assembly
• Pressure
Control Valve
(order separately for
horizontal models,
supplied with vertical
pumps).

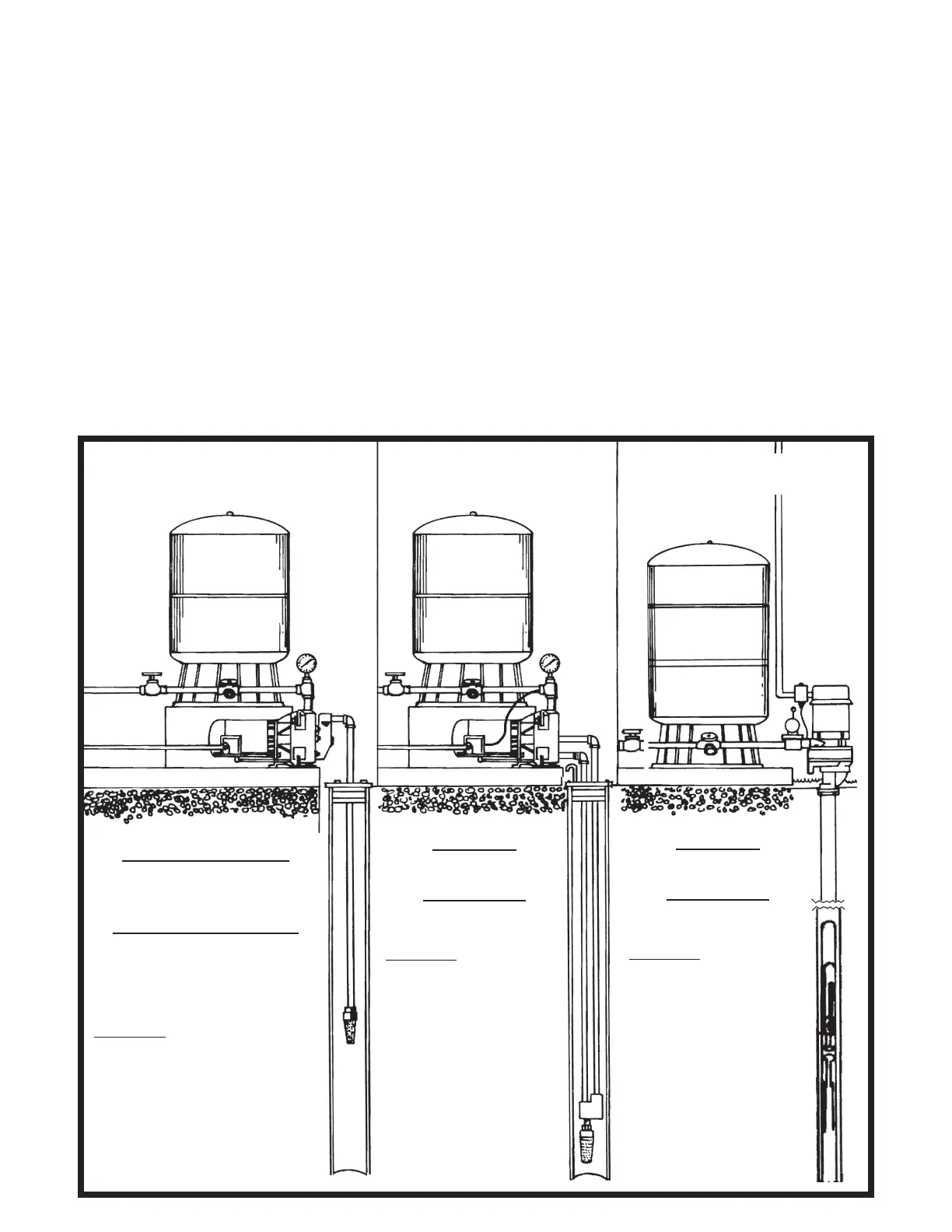

Fig. 2 Fig. 3Fig. 1
Shallow Well Only
J5S - J15S, JRS5 - JRS10
Convertible with
Shallow Well Adapter
J5 - J15, JRD5 - JRD10
➀ J5 with FH5H, J5 or JRD5
with FH5, J7 or JRD7 with FH7,
J10 or JRD10 with FH10,
J15 with FH15
Requires:
• Pump
• Tank
➀• Shallow Well Adapter (FH--)
(J+ and JRD only)
JS and JRS have built-in
jet assembly (shallow well
adapter).
SELECTING THE CORRECT
JET PUMP SYSTEM
Typical Goulds Water Technology Jet Pump InstallationsTypical Goulds Water Technology Jet Pump Installations
