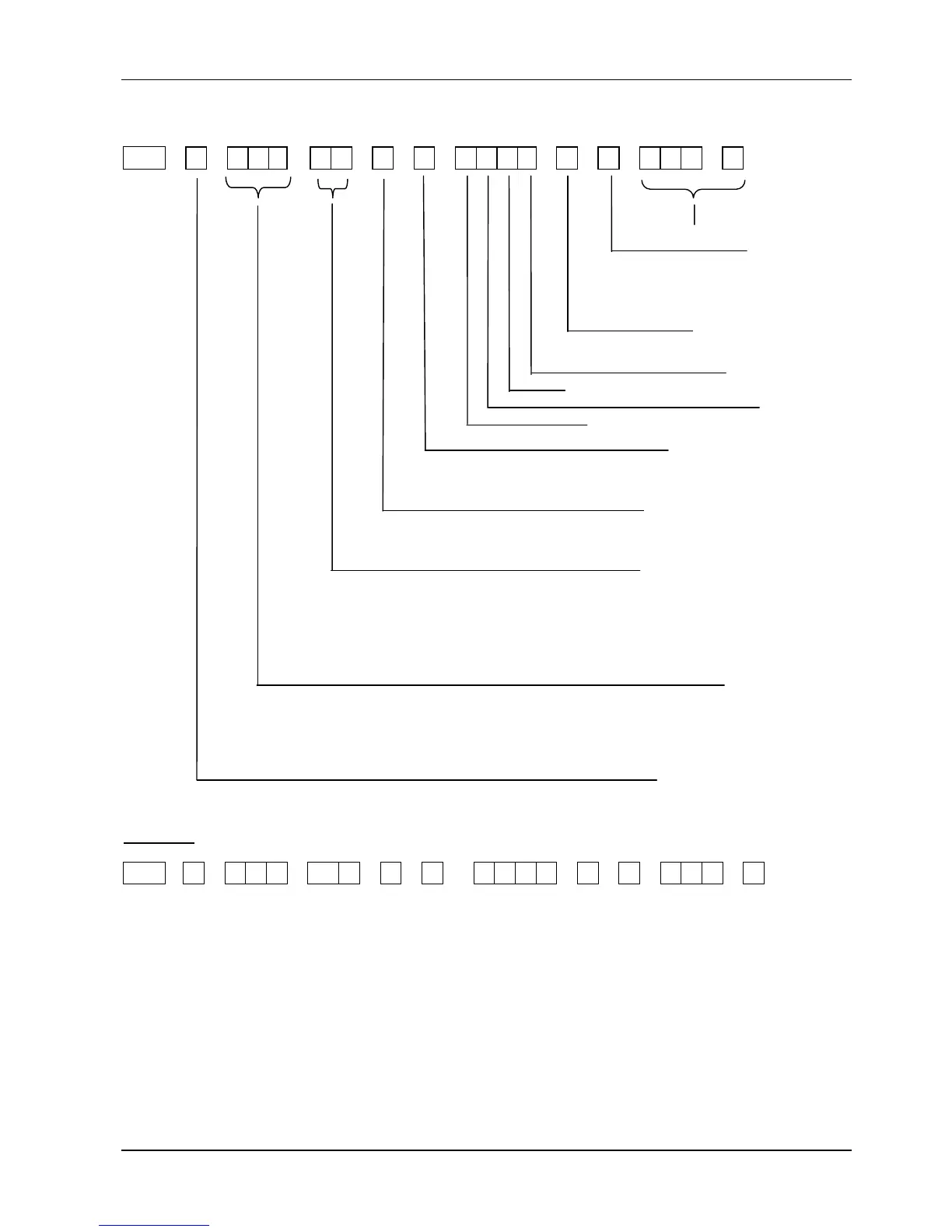

4 Type designation code
Software version
Language
1 = Western Europe resp. all lang.
(with V01.4)
3 = Eastern/Northern Europe
Hardware version
Optional components
Optional card
Relay Card (0= without / R= included)
Bus card
Display (0= without / 1= included)
EMC protection filter
A = A- Filter (industrial environment)
B = B- Filter (domestic environment)
Enclosure class (IP Class)
2= IP 21
5= IP 55
Hardware configurations
M = Motor mounted unit
W = Wall mounted unit
1= BASIC Inverter
2= SINGLE Inverter
3= MASTER Inverter
Rated output
022= 2,2 kW 055= 5,5 kW
030= 3,0 kW 075= 7,5 kW
040= 4,0 kW 110= 11kW
150=15,0kW 185=18,5kW 220=22,0kW
Nominal mains voltage
1= 1~/1~ 230VAC 3= 3~/3~ 230VAC
2= 1~/3~ 230VAC 4= 3~/3~ 380-460VAC
Example
The mentioned HYDROVAR in this example is specified with following technical data:
Nominal mains voltage: 3~/3~ 380-460VAC
Rated output: 4 kW
Hardware configurations: Motor mounted unit - MASTER Inverter
Enclosure class: IP 55
EMC-filter: B - Filter (domestic environment)
Optional components: Display, Relay Card
Hardware version: G
Language: 1 (Western Europe) respectively all languages
Software version: V01.4
HV . -
