HV 4.150 / 4.185 / 4.220

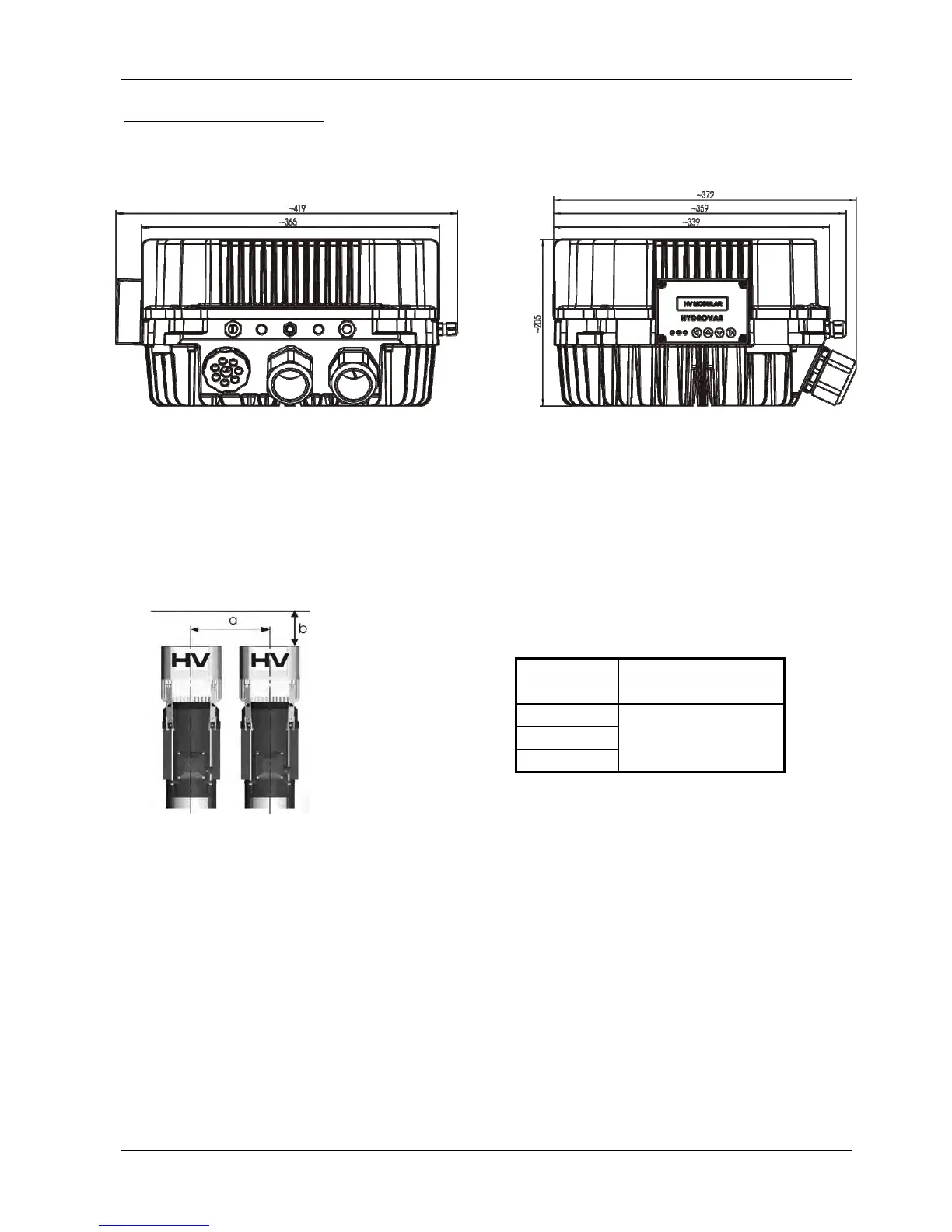

All dimensions in millimetres! Drawings are not to scale!
Lifting aids must have the proper dimensions.
Type Weight [kg]
MASTER
HV 4.150
HV 4.185
HV 4.220
14,00
a … minimum centre-distance between HYDROVAR 550 [mm]
b … expansion space for maintenance 300 [mm]
