Heat / Cooling meter integrator PolluTherm
Installation and operation instructions
M H 6111 INT PolluTherm, page 7

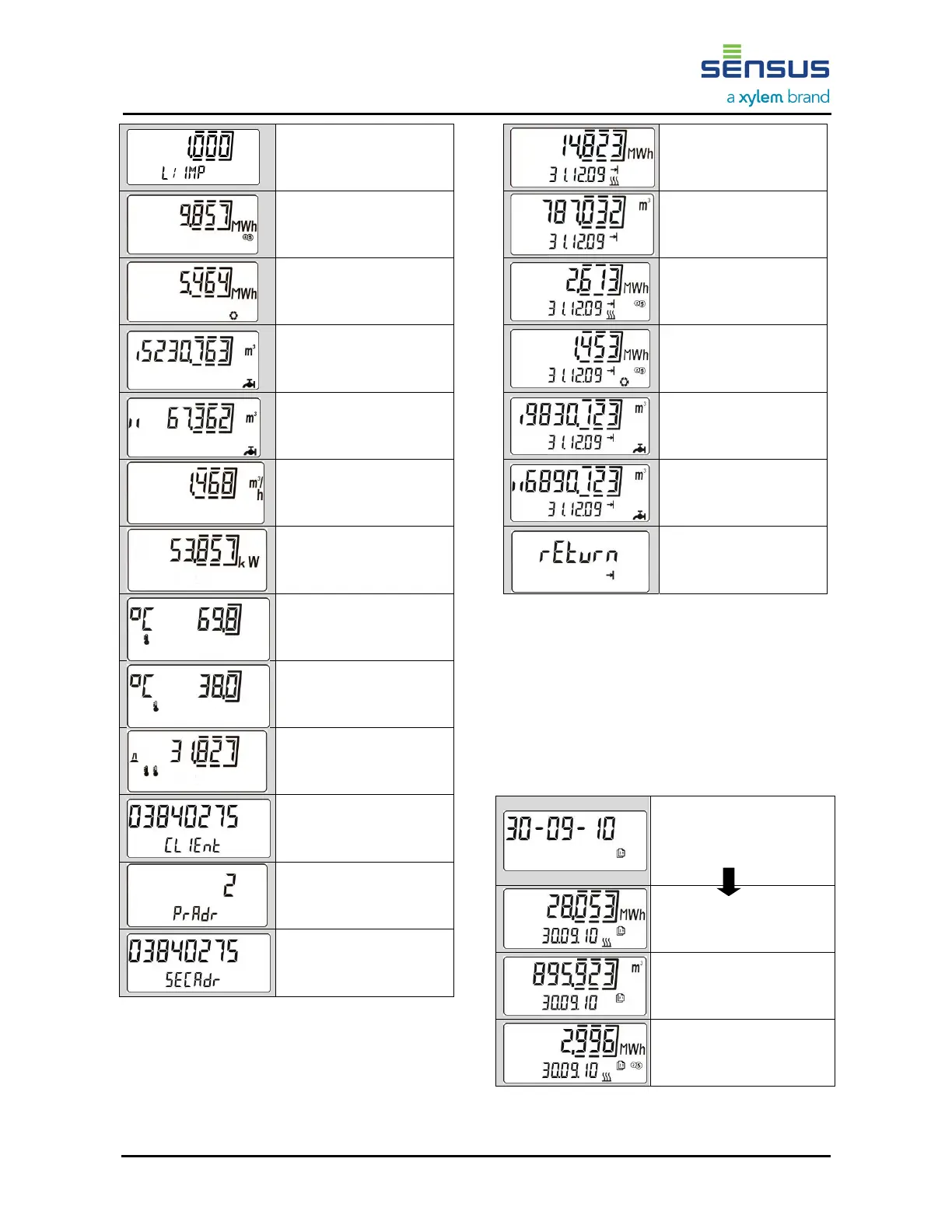

Pulse value of the flow
sensor
Tariff consumption 1 *
(if activated)
Tariff consumption cold *
(if activated)
Consumption first
external meter *
Consumption second
external meter *
Current flow rate
Current power
Temperature in warmer
line
Temperature in colder
line
Temperature difference
Customer’s reference
number
Primary M-Bus address
(factory setting: 0) *
Secondary M-Bus
address
(factory setting:
Serial number) *
8.2 Target day menu (example)
All display items are marked with an arrow
symbol. Display of all stored values on an
adjustable annual target.
Target day value for
heat and cooling energy
resp.
Target day value for
volume
Target day value for
tariff 1
(if activated) *
Target day value for
tariff cold (if activated) *
Target day value first
external meter *
Target day value
second external meter *
Return to selection
menu
(push for 2 seconds)
8.3 Archive menu (example)
All display items are marked with a calendar sheet
symbol. Starting from the current date, the values
on the turn of the past 16 months are displayed
(six-figure date, format: dd.mm.yy, below the main
display).
In addition the values for the current month can be
recalled. For this purpose “today” has to be
selected for the month.
Selection of the required
month by short keystroke,
then push key for 2
seconds
Heat and cooling energy
resp.
Volume
Tariff consumption 1
(if activated) *
To Next Page
