Yaesu FT2DR Instruction Manual

6
APRS
®
initial settings

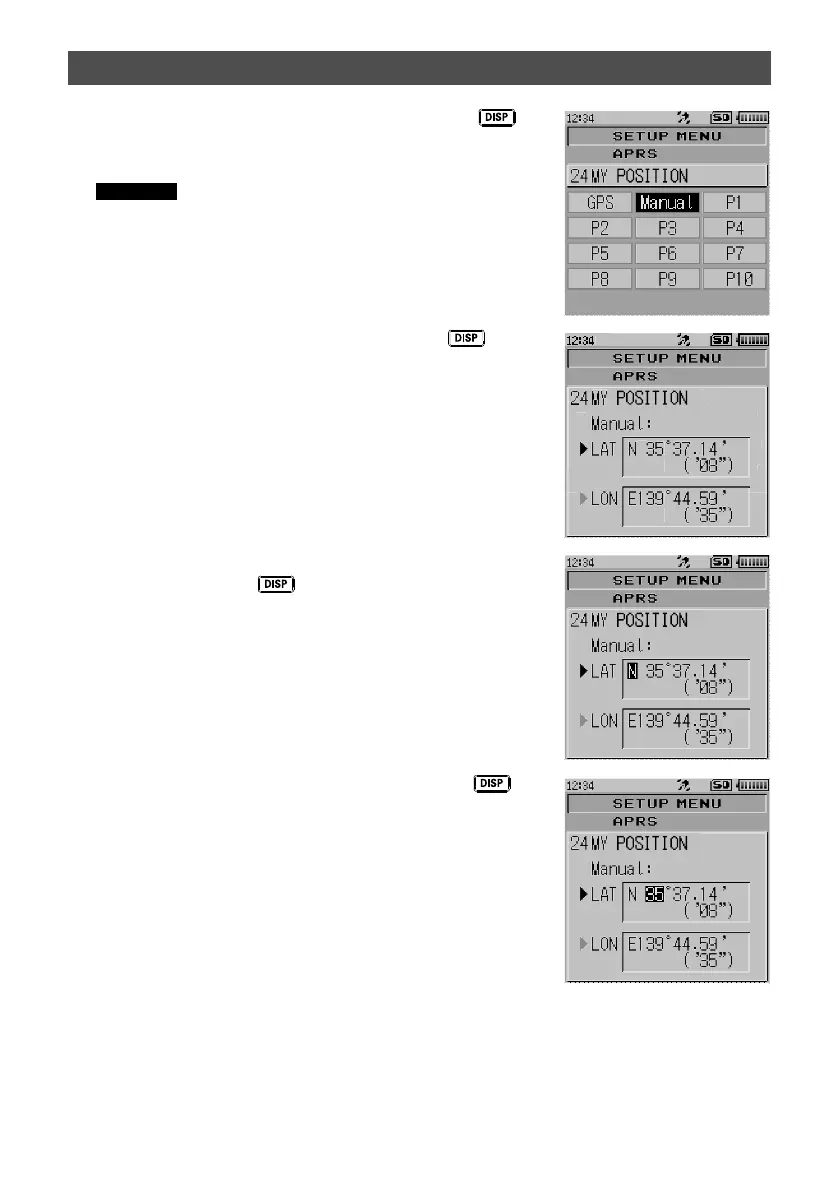

4 Turn the DIAL to select [Manual] and press the key
A screen to enter the position information of your own
station will be displayed.
Reference Factory shipping value: GPS
5 Turn the DIAL to select “LAT” and press the key
The cursor will move to the item for setting the latitude.
6 Turn the DIAL to select “N (North Latitude)” or “S (South
Latitude)” press the
key
The cursor will move to the item for setting the “degree”.
7 Turn the DIAL to select [Degree] and press the key
The cursor will move to the item for setting the “Minute”.

Yaesu FT2DR Specifications

General

Frequency Range	144-148 MHz, 430-450 MHz
GPS	Yes
Waterproof Rating	IPX5
Bluetooth	Yes
Power Output	5 W
Modes	FM, C4FM
Weight	282 g
Operating Voltage	7.4V DC
Battery	7.4 V, 2200 mAh Li-Ion
