Yaesu VX-8R/E - CONNECTOR-2 Unit (Lot.8~) VX-8 R;E and VX-8 DR;E Type

105VX-8R/E and VX-8DR/E Technical Supplement

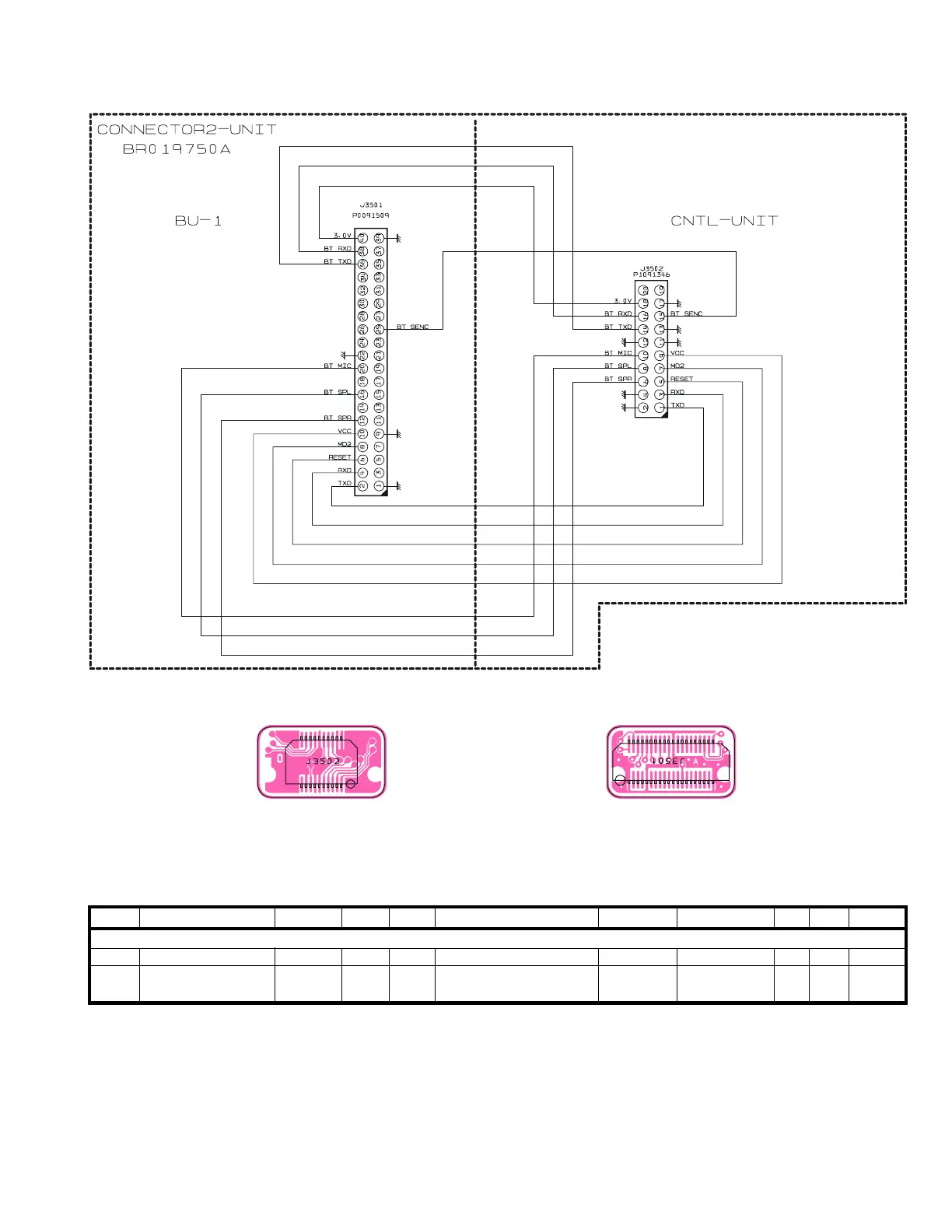

Circuit Diagram
Parts Layout
Side A Side B
CONNECTOR-2 Unit (Lot.8~)
Parts List
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
REF.
LOT.
SIDE LAY ADR.
PCB with Components CB4805001
Printed Circuit Board FR019750A 8-
J 3001 CONNECTOR AXK6S40437YG P0091509 8- B
J 3002 CONNECTOR AXK520147YG P1091346 8- A
