103VX-8R/E Technical Supplement

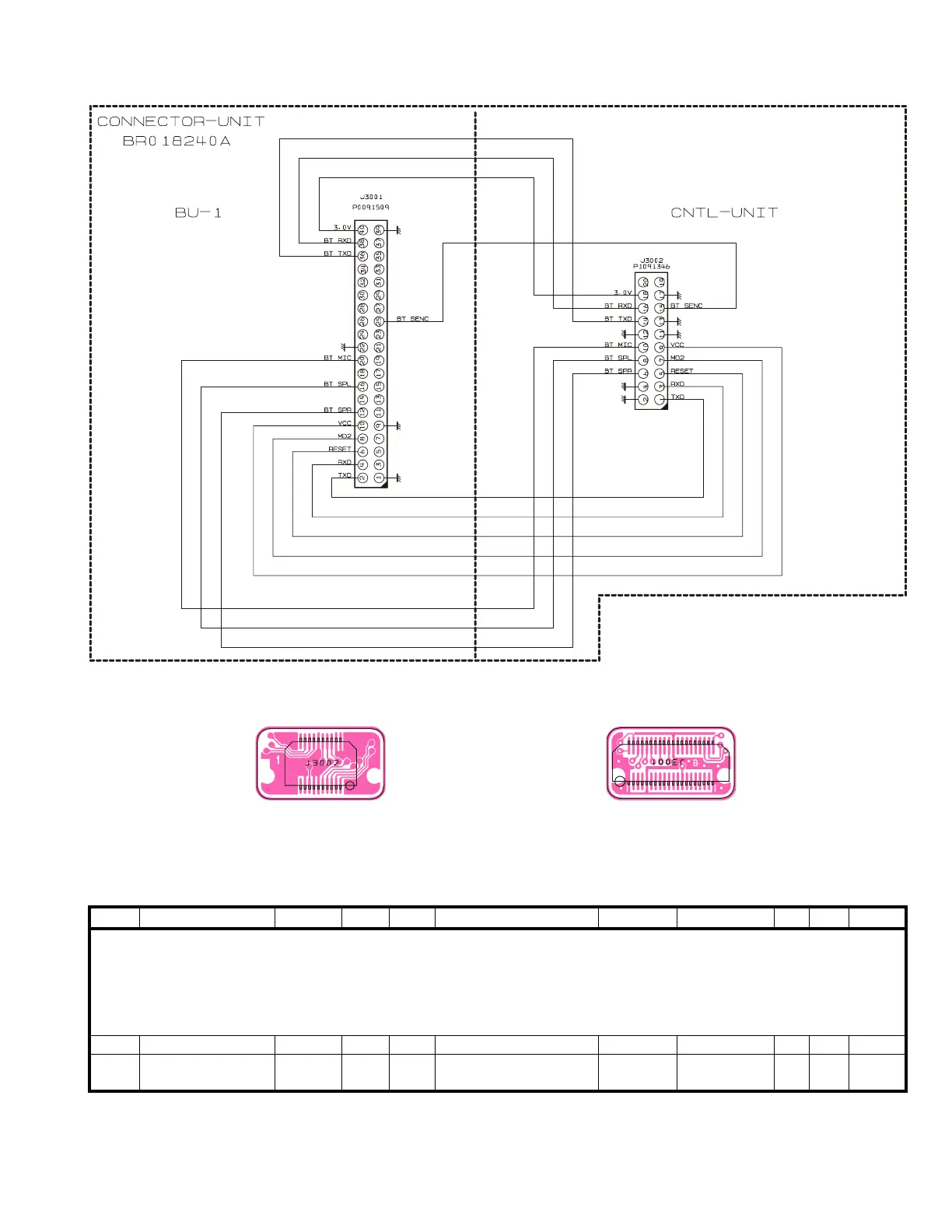

Circuit Diagram
Parts Layout
Side A Side B
CONNECTOR Unit (Lot.1~7)
Parts List
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
REF.
LOT.
SIDE
LAY ADR.
PCB with Components
The CONNECTOR Unit PCB is no longer available for lots 01 to 07.
The New CONNECTOR-2 Unit is not compatible for lots 01 to 07.
If the new CONNECTOR-2 Unit is installed, RF-2 Unit and CNTL-2 Unit must also be installed.
Printed Circuit Board FR018240B 1-
J 3001 CONNECTOR AXK6S40437YG P0091509 1- B
J 3002 CONNECTOR AXK520147YG P1091346 1- A
