Yaesu VX-8R/E - Exploded View & Miscellaneous Parts; Parts Layout; Accessories List

4 VX-8R/E and VX-8DR/E Technical Supplement

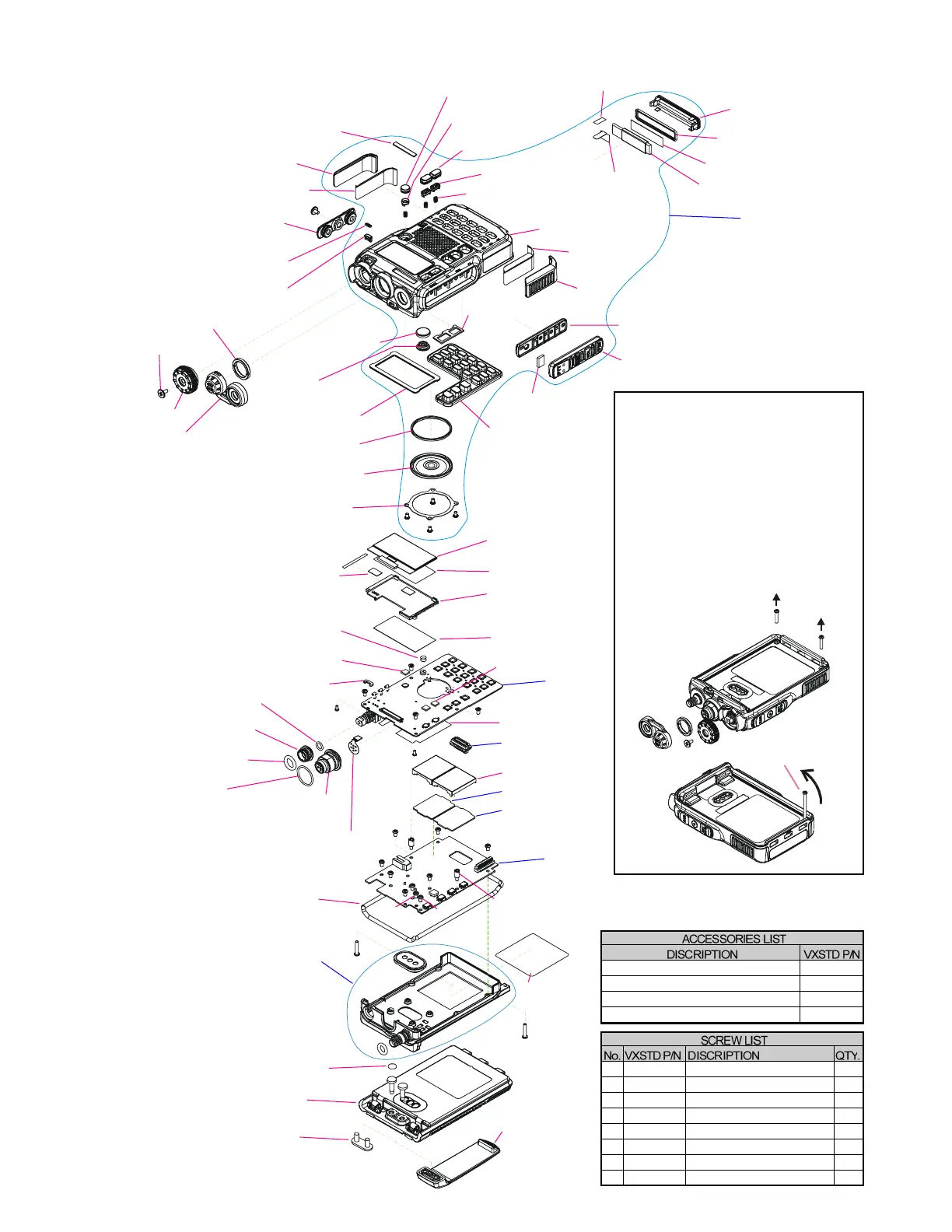

Exploded View & Miscellaneous Parts
Non-designated parts are available only as part of a
designated assembly.
1. Please order the screw M2.6X30 (P/N;
U00230001).
2. Remove the SPECIAL SCREW (A) and
ENCODER KNOB (B).
3. Remove the MIC/SP CAP (C) and RING
NUT (D).
4. Remove the two screws (E).
5. Turn the M2.6x30 screw several times to
affix the screw to the bottom right corner.
6. Press the top of the screw toward to a panel
top to remove the rear case Assy from the
front panel.
Removing the Rear Case Assy
screw M2.6X30
(A)
(B)
(C)
(D)
(E)
(E)
RA1012900
SHEET (MIC)
M4090189
SPEAKER(0.5W/16-ohm)
RA105780A
FRONT CASE
(W/ SP NET, WINDOW)
RA1016400
LIGHT GUIDE (LED)
RA1016600
HOLDER (ANT)
RA101670B (x2 pcs)
SUPPORT (ACS)
RA1016900
SUPPORT (PTT)
RA1016800
SUPPORT (POW)
RA1017100
PROTECTOR (L)
RA1014200
SHEET HOLDER (MIC)
RA1017000
PROTECTOR (R)
RA1049000
ENCODER KNOB (2PRY)
CP9295001
CHASSIS ASSY
(w/ PACKING PAD, O RING,
SMA CONNECTOR)
RA1093500
MYLAR SHEET (ANT)
RA1092400
SHEET (SW)
RA107300A
SPACER (PTT)
RA1070500
LIGHT SHEET (LCD)
RA106950A
SHEET (ACS)
RA1061400
O RING (12.5X1)
RA1066900
BLIND SHEET
RA0337300
SHEET (C012)
RA0603200
O RING (0.7X3.7)
RA1042800
RING NUT (WITCO)
RA060450B
SPECIAL NUT (M)
RA0918600
SPECIAL SCREW (2.6X5X8)
RA1053700 (x3 pcs)
COIL SPRING
RA1011800 (x2 pcs)
STUD
RA1057200
DOUBLE FACE (PAD-R)
RA1057100
DOUBLE FACE (PAD-L)
RA1017600
SHEET (LED)
RA1017500
SHEET (WIN)
RA1013900
DOUBLE FACE (ANT-A)
RA101370B
SP HOLDER
RA0603600
O RING (1X4.2)
RA1037500
O RING (6.5X2)
RA1013300
RUBBER PACKING (LED)
RA1013500
RUBBER PACKING (ANT)
RA101340B
RUBBER PACKING (SP)
RA101320A
RUBBER KEY (PTT)
RA101250A
KEY PAD
RA1017200
CAP (TOP)
RA1017300
CAP (SIDE)
RA1012700
GASKET
RA101300B (x2 pcs)
RUBBER KEY (ACS)
RA101310A
RUBBER
KEY (POW)
RA1016500
LCD HOLDER
RA1013800
SHEET (LCD)
RA1017400 (x2 pcs)
DOUBLE FACE (LCD)
RA1080500
SHIELD SHEET
Q7000614
LCD MODULE
MAIN VCO Unit
SUB VCO Unit
CONNECTOR Unit
CNTL Unit
Q9000881
BAR ANTENNA
P0091520
CONNECTOR
FR018900A
MIC-CONNECTOR Flat Cable
RF Unit

























RA1054200
CAP (BATT)
RA1053600
BELT CLIP
AAG10X001
FNB-101LI
RA1007400 (x2 pcs)
SHIELD CASE VCO
RA0951900
NAME PLATE (YAESU)
Q3000183
Q3000185
Q9500149
Q9500150
RUBBER ANTENNA YHA-64
RUBBER ANTENNA YHA-65 (USA)
AC-DC ADAPTOR NC-86B (USA)
AC-DC ADAPTOR NC-86C (EXP)








U9900240
U9900239
U9900241
U07230102
U24310020
U9900242
U9900243
U9900181
PAN HEAD TAPTITE-B 1.4X3NI #3
PAN HEAD TAPTITE-B 2X3NI #3
PAN HEAD TAPTITE-B 2X10SUS #3
PAN HEAD SCREW M2X3NI #1
BIND HEAD TAPTITE-B M3X10SUS
TAPPING SCREW 2X2.5NI
TAPPING SCREW M2X3NI
TAPTITE SCREW 2X3.5(CAP)
2
11
2
1
2
4
2
1
RA1092400 (x2 pcs)
SHEET (SW)
FR018660A
ANT Flat Cable
CP9296002 (USA)
CP9296003 (EXP)
CP9296004 (EU)
CP9296005 (AUS)
FRONT CASE ASSY
