Yaesu VX-8R/E - Parts Layout; RF Unit

26

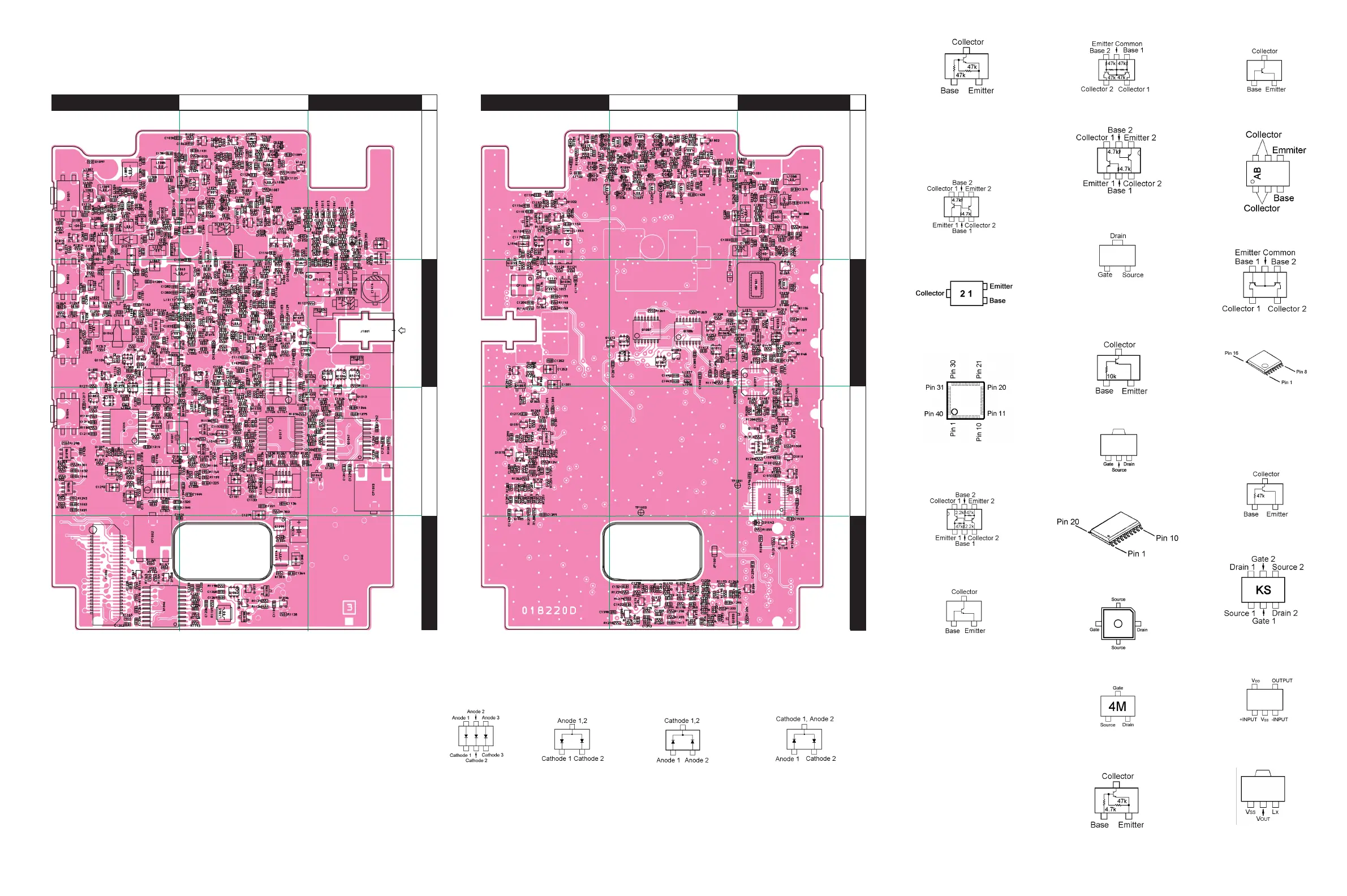

RF Unit (Lot. 1~4)
VX-8R/E Technical Supplement
EMD6 (D6)
(Q1032, 1089)
Side A
Parts Layout
Side B
AC
1
2
3
B
1
2
3
acb
4
4
2SA2029
(Q1069, 1080, 1094)
2SC4915-O (QO)
(Q1028, 1029, 1033,
1034, 1035, 1037,
1039, 1040, 1045)
2SC5226 (R22)
(Q1031, 1053)
2SC5374 (NA)
(Q1025, 1026, 1027,
1063, 1064, 1076)
2SC5555ZD (ZD)
(Q1001, 1002, 1003,
1011, 1015, 1016,
1019, 1020, 1021,
1022, 1023, 1024,
1100, 1101)
2SC5658
(Q1050, 1051, 1066,
1073, 1074, 1084, 1085)
2SK3475
(Q1042)
2SK3476
(Q1052)
2SJ364-P(4M)
(Q1055, 1060)
2SK3541
(Q 1036, 1038, 1102,
1104, 1105)
RTM002P02
(Q1065, 1067)
MB15A01PFV1-G-BND-EFE1
(Q1017, 1044)
TC74VHC595FK
(Q1086, 1087)
BA2902KN
(Q1097)
CPH6102-TL (AB)
(Q1077)
DTA114TE
(Q1041, 1043,1056, 1058)
DTC143ZE (E23)
(Q1061)
DTC144EM T2L
(Q1004, 1007, 1008
1013, 1048, 1049
1054, 1057, 1059
1072, 1075, 1083
1088, 1092, 1103
1106, 1107)
DTC144TE (96)
(Q1090)
EMB10 T2R
(Q1014, 1062, 1093)
EMB3 (B3)
(Q1005, 1006, 1068,
1070, 1078, 1081)
EMG2 (G2)
(Q1030, 1071, 1082, 1095)
XC6371A650DR
(Q1099)
UMW1
(Q1079)
NJU7007F3-TE1
(Q1096, 1098)
NJM2552V-TE1
(Q1046, 1047)
MT3S36FS (21)
(Q1009, 1010, 1018)
LV24100LP-TLM-E
(Q1012)
DAN222M
(D1010, 1025, 1050,
1060, 1062, 1065,
1067, 1068, 1076,
1086, 1095)
1SS385 (09)
D 1087
DAP222M (P)
(D1061)
1SS362 (C3)
(D1002, 1003)
DA221M
(D1063, 1064, 1072,
1073, 1074, 1075)
HN2D01FU (A1)
(D1094)
HN1J02FU (KS)
(Q1091)
