Yaesu VX-8R/E - CNTL Unit

74
CNTL Unit (Lot. 1~4)
VX-8R/E Technical Supplement
Side A

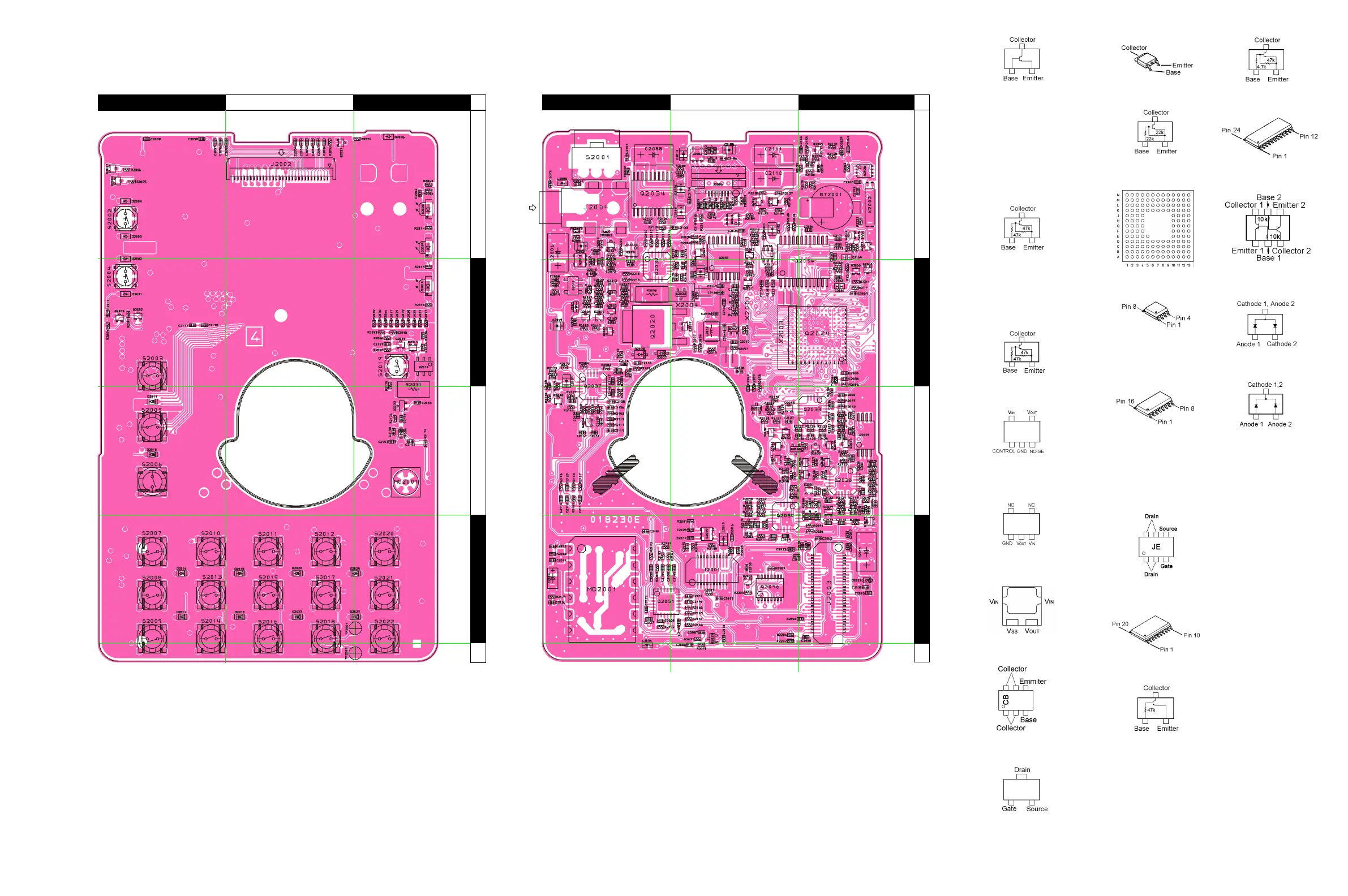

Parts Layout
Side B
C
1
2
3
B
4
ac
1
2
3
b
4
5
4
DAN222 (N)
(D2030, 2032)
5
RTM002P02
(Q2018)
2SK3541
(Q2045, 2046, 2047)
2SC5658
(Q2001, 2016, 2027, 2035,
2040, 2061, 2062)
2SA2029 (F
*
)
(Q2015, 2065)
2SC5374 (NA)
(Q2023)
2SC4915 (QY)
(Q2029)
2SD1801S
(Q2020)
BA2902KN
(Q2028, 2030, 2032,
2033, 2037)
CMX865AE4
(Q2055)
TC74VHC595FK
(Q2056)
CMX589AD5
(Q2054)
CPH6202-TL
(Q2014)
DA221 (K)
(D2005, 2006, 203, 2033)
DTC144EM (26)
(Q2002, 2003, 2004, 2005,
2007, 2019, 2021, 2036,
2038, 2039, 2041, 2042,
2043, 2044, 2049, 2052,
2057, 2059, 2060)
DTA144EM (16)
(Q2008)
DTC144TE (96)
(Q2048, 2050)
DTC143ZE (E23)
(Q2053)
DTC124EE (25)
(Q2022)
M24512-RDW6TP
(Q2025)
S-35190A-I8T1G
(Q2026)
HD64F2370VLP34V
(Q2024)
MCH6305-TL
(Q2031, 2064)
NJM2151AV
(Q2034)
NJU7231F30-TE1
(Q2010)
UMH4N
(Q2058)
XC61GN3002HR
(Q2011, 2012)
TAR5S30U (3V0)
(Q2009, 2013, 2063)
