Yaesu VX-8R/E - Page 52

52
RF-2 Unit (Lot.24~)
VX-8R/E and VX-8DR Technical Supplement
EMD6 (D6)
(Q8032, 8089)
Side A

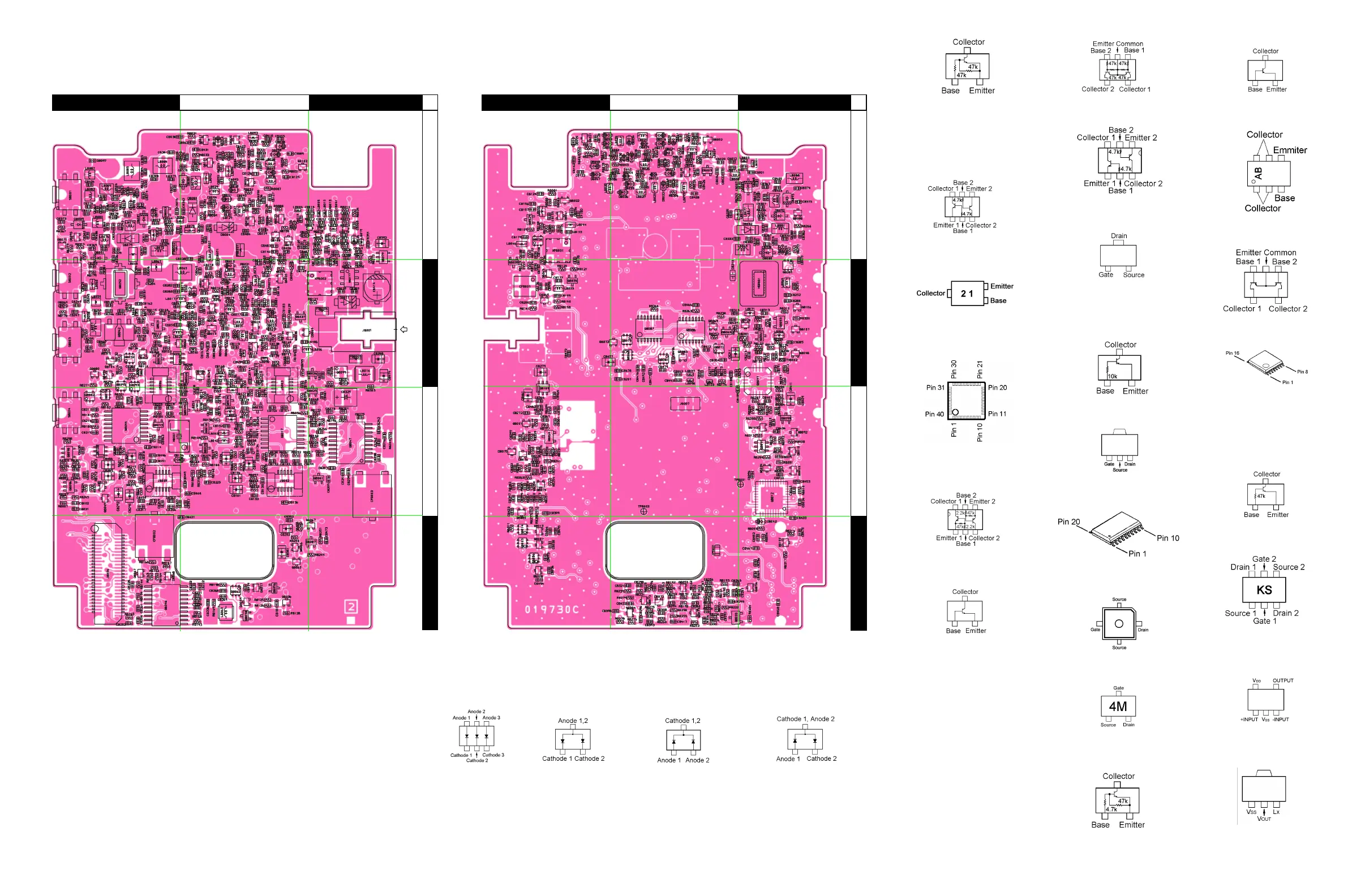

Parts Layout
Side B
AC
1
2
3
B
1
2
3
acb
4
4
2SA2029
(Q8069, 8080, 8094)
2SC4915-O (QO)
(Q8028, 8029, 8033,
8034, 8035, 8037,
8039, 8040, 8045)
2SC5226 (R22)
(Q8031, 8053)
2SC5374 (NA)
(Q8025, 8026, 8027,
8063, 8064, 8076)
2SC5555ZD (ZD)
(Q8001, 8002, 8003,
8011, 8015, 8016,
8019, 8020, 8021,
8022, 8023, 8024,
8100, 8101)
2SC5658
(Q8050, 8051, 8066,
8073, 8074, 8084, 8085)
2SK3475
(Q8042)
2SK3476
(Q8052)
2SJ364-P(4M)
(Q8055, 8060)
2SK3541
(Q8036, 8038, 8102,
8104, 8105)
RTM002P02
(Q8065, 8067)
MB15A01PFV1-G-BND-EFE1
(Q8017, 8044)
TC74VHC595FK
(Q8086, 8087)
BA2902KN
(Q8097)
CPH6102-TL (AB)
(Q8077)
DTA114TE
(Q8041, 8043,1056, 8058)
DTC143ZE (E23)
(Q8061)
DTC144EM T2L
(Q8004, 8007, 8008
8013, 8048, 8049
8054, 8057, 8059
8072, 8075, 8083
8088, 8092, 8103
8106, 8107)
DTC144TE (96)
(Q8090)
EMB10 T2R
(Q8014, 8062, 8093)
EMB3 (B3)
(Q8005, 8006, 8068,
8070, 8078, 8081)
EMG2 (G2)
(Q8030, 8071, 8082, 8095)
XC6371A650DR
(Q8099)
UMW1
(Q8079)
NJU7007F3-TE1
(Q8096, 8098)
NJM2552V-TE1
(Q8046, 8047)
MT3S36FS (21)
(Q8009, 8010, 8018)
LV24100LP-TLM-E
(Q8012)
DAN222M
(D8010, 8025, 8050,
8060, 8062, 8065,
8067, 8068, 8076,
8086, 8095)
1SS385 (09)
(D8087)
1SS385FV (09)
(D8005, 8057, 8100)
DAP222M (P)
(D8061)
1SS362 (C3)
(D8002, 8003)
DA221M
(D8063, 8064, 8072,
8073, 8074, 8075)
HN2D01FU (A1)
(D8094)
HN1J02FU (KS)
(Q8091)
