Yaesu VX-8R/E - Page 90

90
CNTL-2 Unit (Lot.16~)
VX-8R/E Technical Supplement
Side A

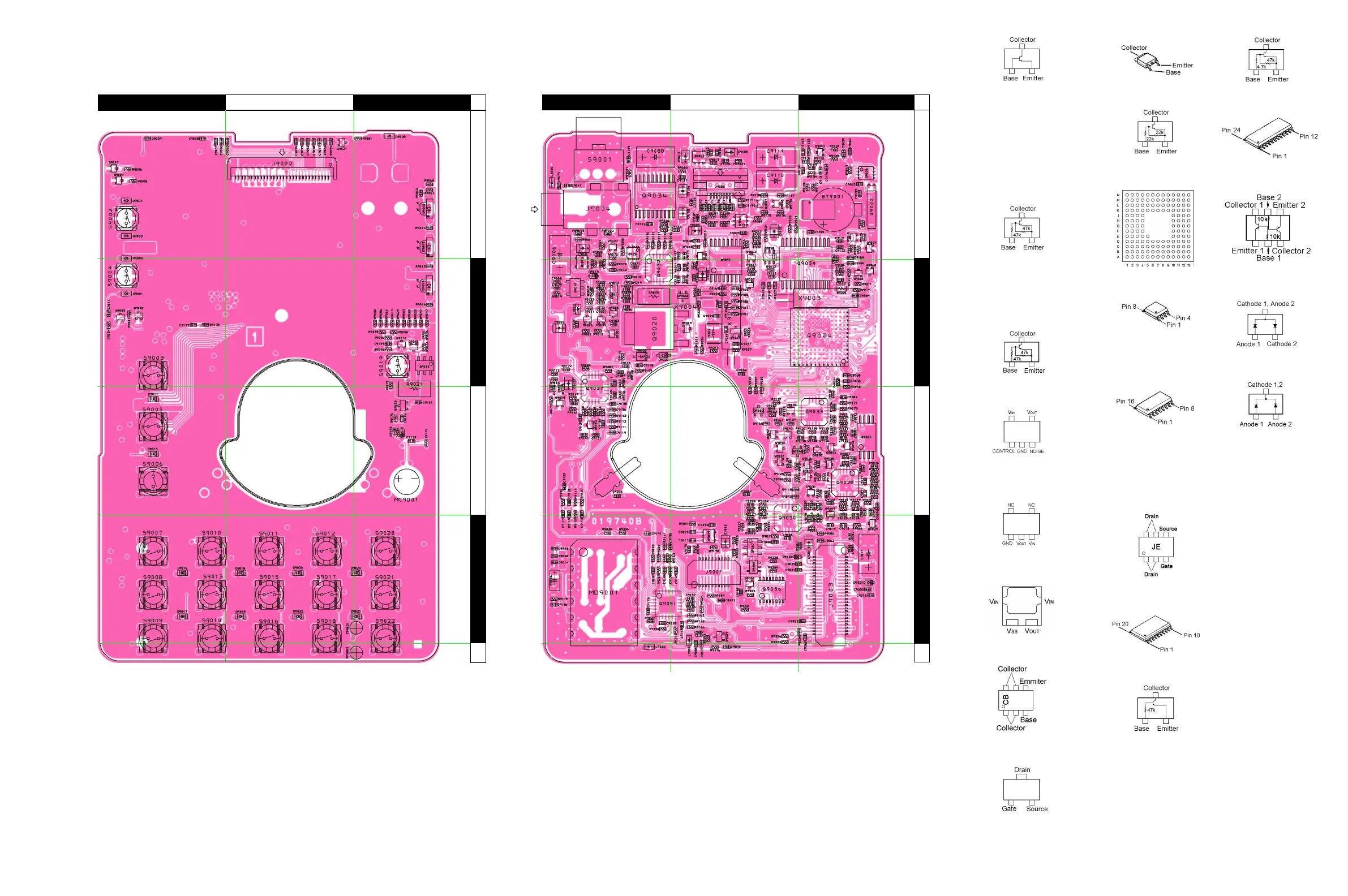

Parts Layout
Side B
C
1
2
3
B
4
ac
1
2
3
b
4
5
4
DAN222 (N)
(D9030, 9032)
5
RTM002P02
(Q2018)
2SK3541
(Q9045, 9046, 9047)
2SC5658
(Q9001, 9016, 9027, 9035,
9040, 9061, 9062)
2SA2029 (F
*
)
(Q9015, 9065)
2SC5374 (NA)
(Q9023)
2SC4915 (QY)
(Q9029)
2SD1801S
(Q9020)
BA2902KN
(Q9028, 9030, 9032,
9033, 9037)
CMX865AE4
(Q9055)
TC74VHC595FK
(Q9056)
CMX589AD5
(Q9054)
CPH6202-TL
(Q9014)
DA221 (K)
(D9005, 9006, 9031, 9033)
DTC144EM (26)
(Q9002, 9003, 9004, 9005,
9007, 9019, 9021, 9036,
9038, 9039, 9041, 9042,
9043, 9044, 9049, 9052,
9057, 9059, 9060)
DTA144EM (16)
(Q9008)
DTC144TE (96)
(Q9048, 9050)
DTC143ZE (E23)
(Q9053)
DTC124EE (25)
(Q9022)
M24512-RDW6TP
(Q9025)
S-35190A-I8T1G
(Q9026)
HD64F2370VLP34V
(Q9024)
MCH6305-TL
(Q9031, 9064)
NJM2151AV
(Q9034)
NJU7231F30-TE1
(Q9010)
UMH4N
(Q9058)
XC61GN3002HR
(Q9011, 9012)
TAR5S30U (3V0)
(Q9009, 9013, 9063)
5
