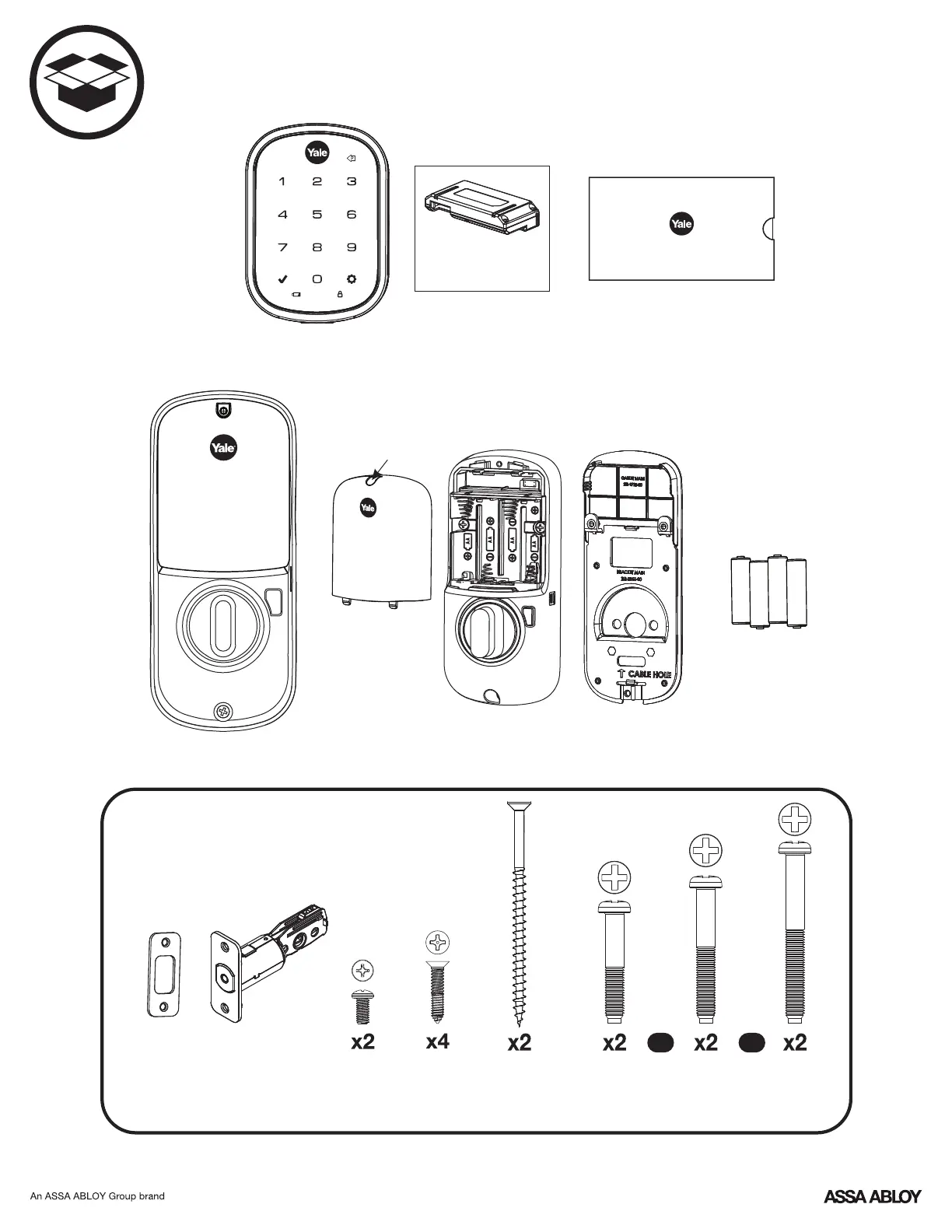

What's In The Box
Loosen screw to
remove cover
Key Free Touchscreen
Keypad
4 AA Batteries
Inside Lock Assembly
(Separates into 3 components)
Battery Cover
Inside Lock Mounting Plate
Installation Guide Envelope
(Includes this manual and
door checker with template)
Mounting Hardware
The mounting hardware box includes 16 components
Strike Plate
Adjustable
Deadbolt
OR OR
Screw Set D
Silver
for
2 to 2-1/4"
Door Thickness
Screw Set C
Black
Standard for
1-3/4"
Door Thickness
Strike Plate
and
Deadbolt Screws
Inside Lock
Screws
Optional
Security
Strike Plate
Screws
Let's Get Started
Screw Set B
Green
for
1-3/8"
Door Thickness
Optional Yale
Smart Module
