Yale Assure Lock SL Installation And Programming Instructions

P/N YRD256-MNL-0003 Rev F
7
5

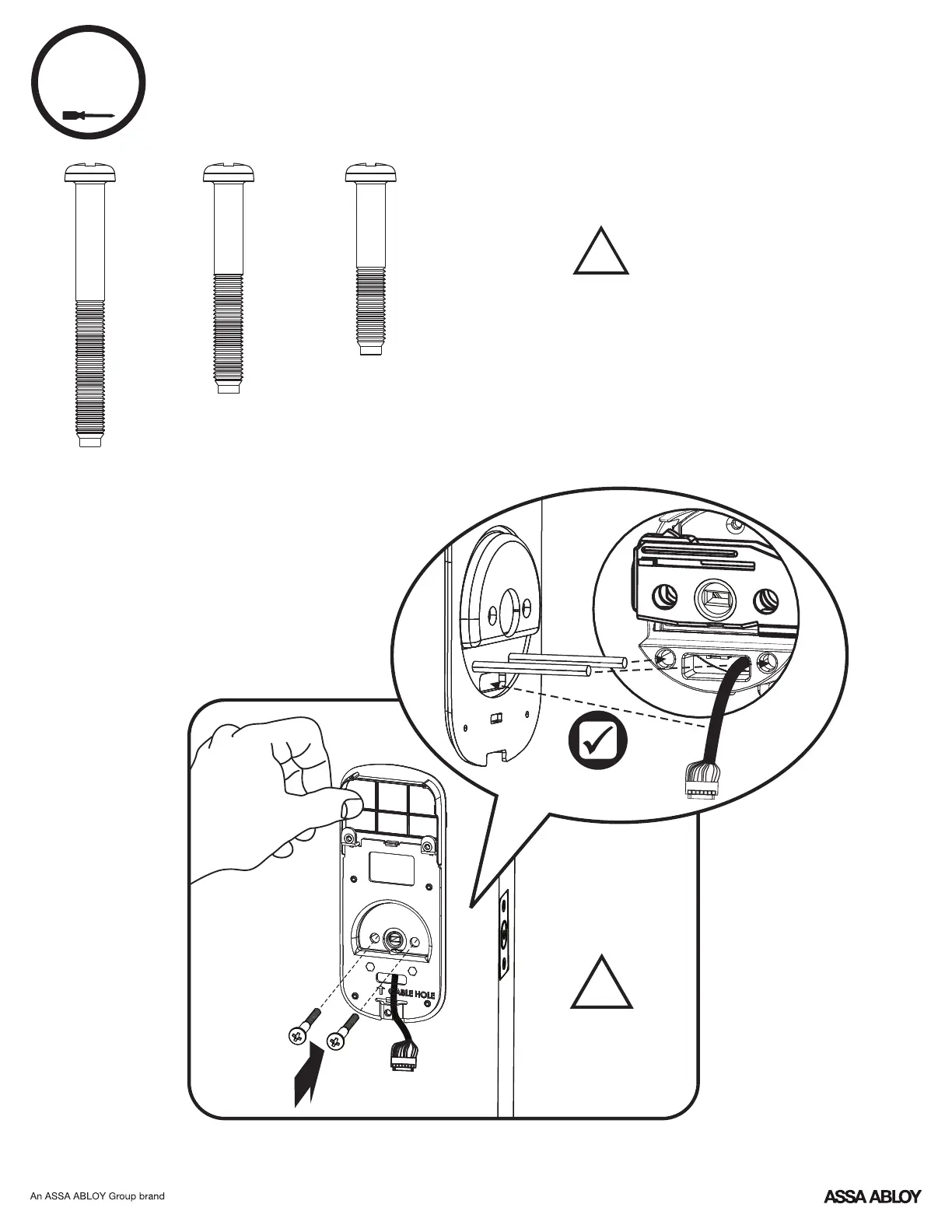

Installing Inside Mounting Plate
Actual Size
Inside of Door
Make sure keypad
and mounting plate
are straight before
tightening screws.
!
x2
Screw Set D
Silver
for
2 to 2-1/4"
Door Thickness
x2
Screw Set C
Black
Standard for
1-3/4"
Door Thickness
Actual Size
Actual Size
Insert cable
through cable hole.
Choose through bolt appropriate for
your door thickness. Verify appropriate
through bolt with the door checker.
!
Screw Set B
Green
for
1-3/8"
Door Thickness
x2

Yale Assure Lock SL Specifications

General

Type	Smart Lock
Lock Type	Deadbolt
Keyless Entry	Yes
Touchscreen	Yes
Battery	4 AA batteries
Finish Options	Satin Nickel, Oil Rubbed Bronze, Polished Brass
Battery Life	Up to 1 year
Backlit Keypad	Yes
Voice Assistant Compatibility	Yes
Auto-Lock	Yes
Guest Access	Yes
Connectivity	Bluetooth
Compatibility	Apple HomeKit, Amazon Alexa, Google Assistant, SmartThings
Installation	Standard door installation
User Codes	Up to 25
Voice Control	Yes (with compatible voice assistant)
Remote Access	Yes (with module)
Security	BHMA Grade 2 Certified
