Yale Assure Lock SL Installation And Programming Instructions

P/N YRD256-MNL-0003 Rev F
x2
3
Actual Size
*Deadbolt latch position is based
on backset. Choose position
appropriate for your door.
Reference Door Checker
measurements E and F.
default
*2-3/8" Backset
*2-3/4" Backset

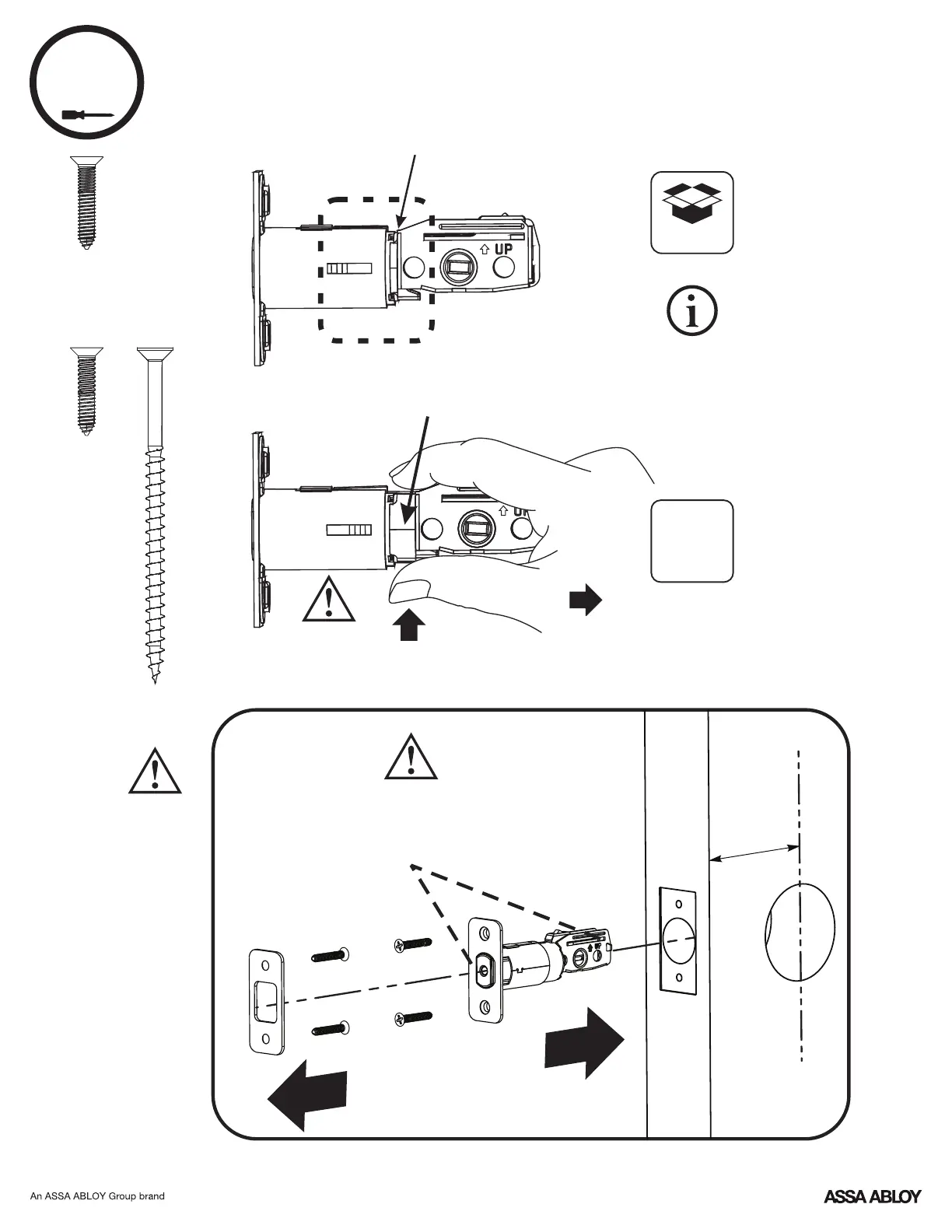

Installing Latch & Strike Plate
Press
Pull
Bolt must be in retracted
(unlocked) position. Note horizontal
orientation of tailpiece slot and UP
orientation of deadbolt latch.
Backset
Actual Size
x2
Choose
standard
strike plate
screws or
security
screws.
Actual Size
O
optional
Bolt must be
in retracted
(unlocked)
position.
x2
5

Yale Assure Lock SL Specifications

General

Type	Smart Lock
Lock Type	Deadbolt
Keyless Entry	Yes
Touchscreen	Yes
Battery	4 AA batteries
Finish Options	Satin Nickel, Oil Rubbed Bronze, Polished Brass
Battery Life	Up to 1 year
Backlit Keypad	Yes
Voice Assistant Compatibility	Yes
Auto-Lock	Yes
Guest Access	Yes
Connectivity	Bluetooth
Compatibility	Apple HomeKit, Amazon Alexa, Google Assistant, SmartThings
Installation	Standard door installation
User Codes	Up to 25
Voice Control	Yes (with compatible voice assistant)
Remote Access	Yes (with module)
Security	BHMA Grade 2 Certified
