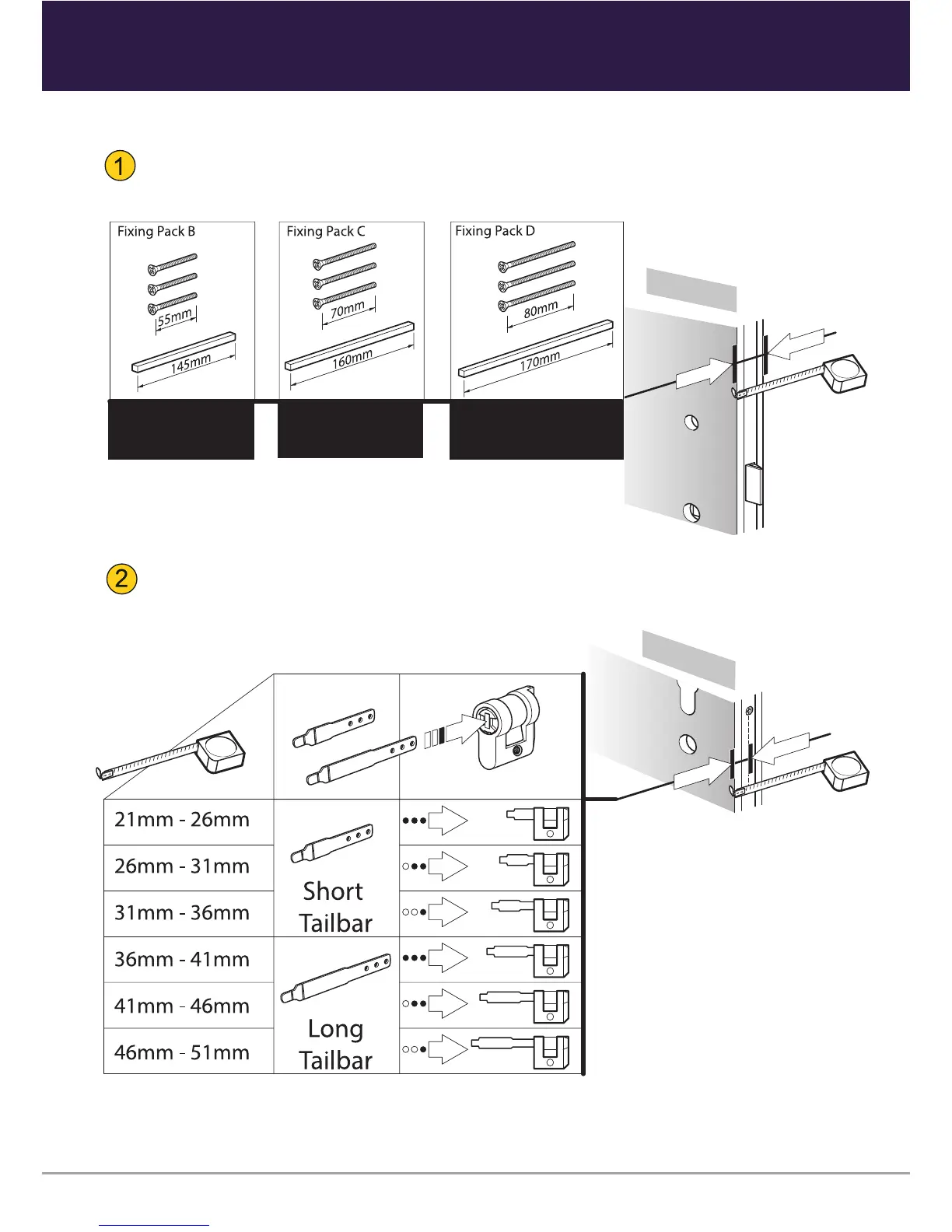

Measuring Your Door
•
Measure the thickness of the door to select the correct xing pack.
44-50mm
58-65mm
70mm
Door thickness
Door thickness Door thickness
Measure the distance between the centre of the lock
and the inside of the door to select the correct tailbar.
