Yale Conexis L1 - Installing The Actuator

8

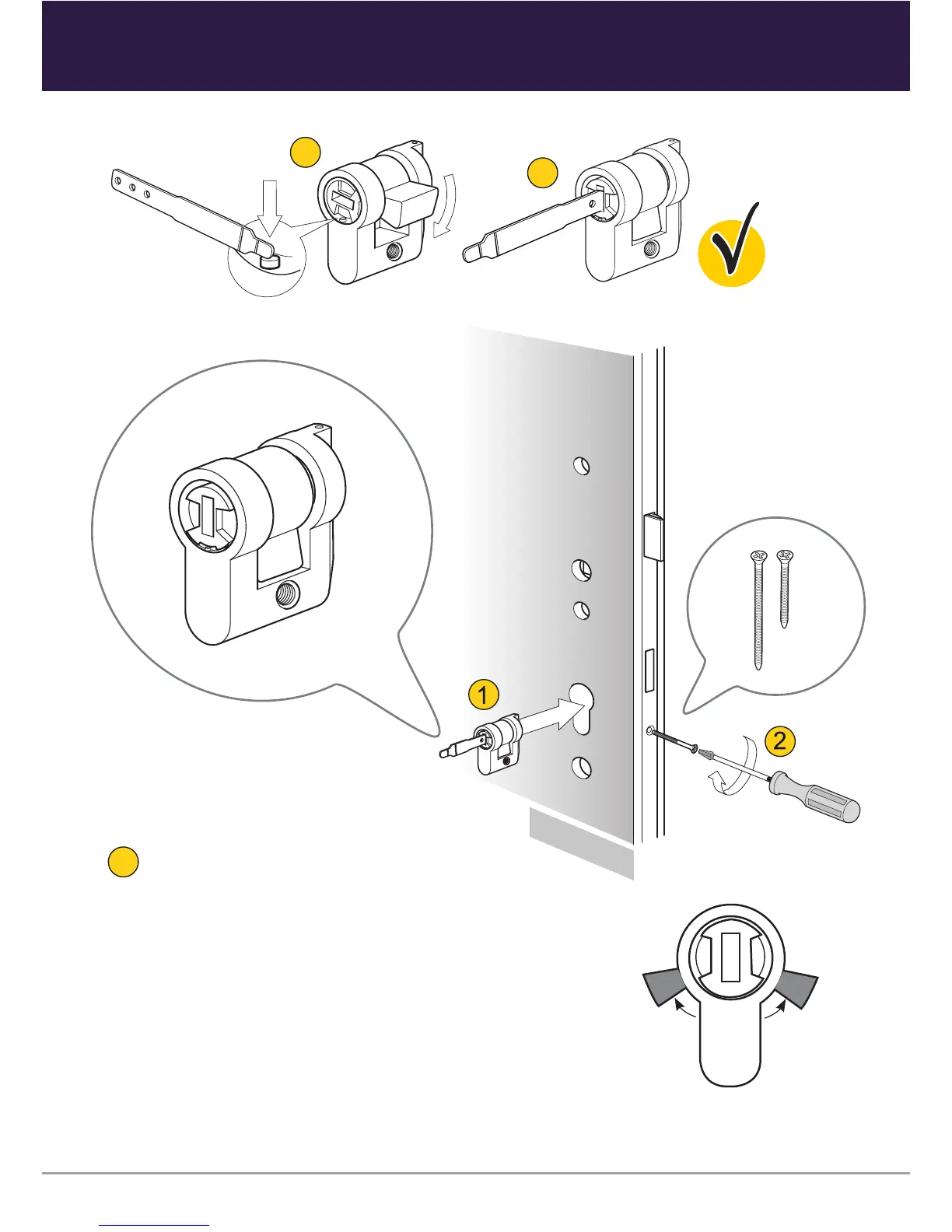

Installing The Actuator
•
INSIDE
INSIDE
Choose suitable
size screw for door
3
Once installed in the door, turn the tailbar
left and right, do not turn past angle shown
on diagram. Does it move freely?
Yes, if it moves freely, please proceed.
No, remove the actuator from door and
realign until it moves freely.
Tip: You may need to reset the actuator
so that the tailbar is in the vertical position
before continuing.
1
2
INSIDE
1
2
INSIDE
1
2
INSIDE
A
B
