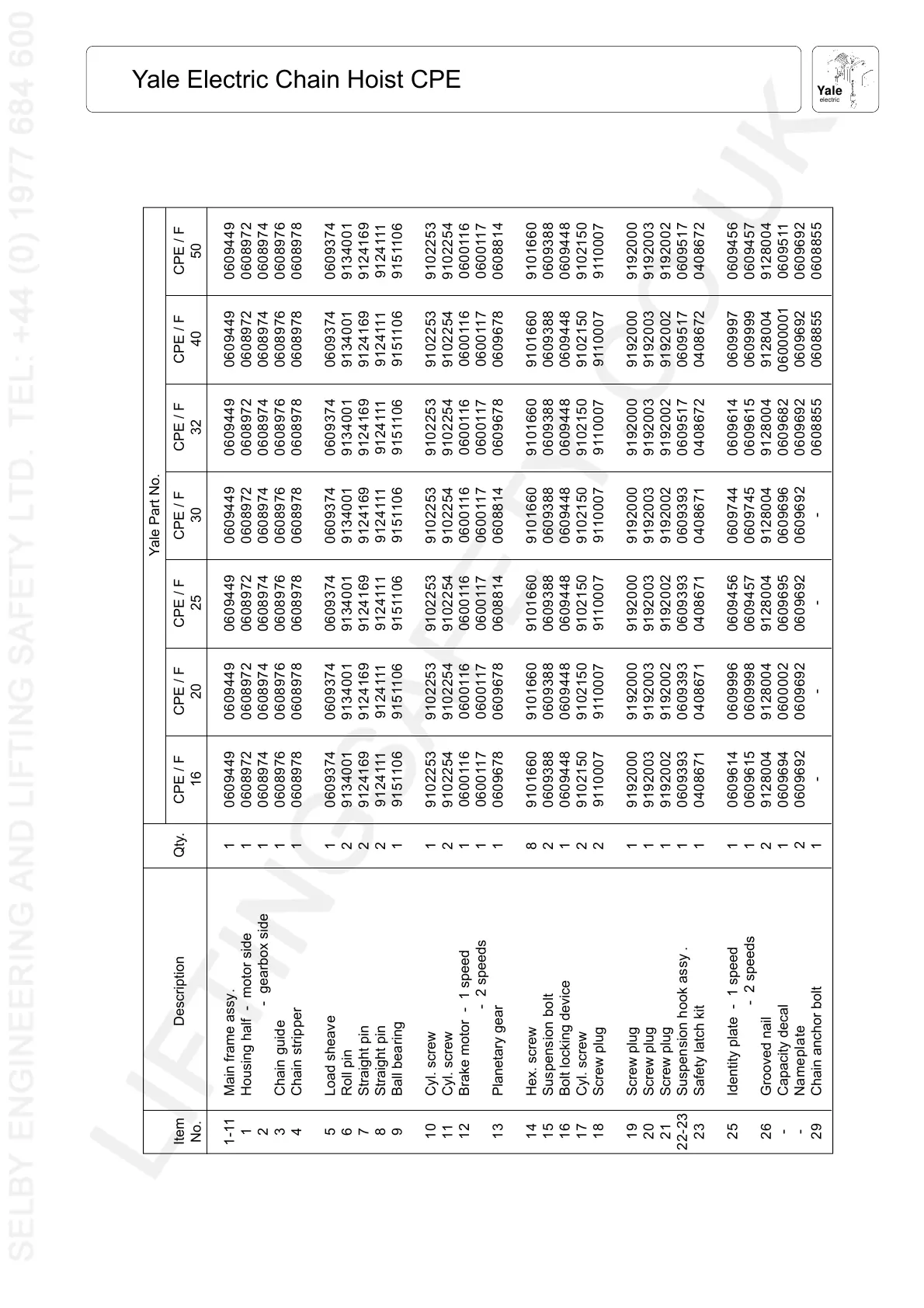

Yale CPE Series User Manual

Yale Electric Chain Hoist CPE
electric
Yale
13
Yale Part No.
Item Description Qty. CPE / F CPE / F CPE / F CPE / F CPE / F CPE / F CPE / F
No. 16 20 25 30 32 40 50
1-11 Main frame assy.10609449 0609449 0609449 0609449 0609449 0609449 0609449
1 Housing half - motor side 1 0608972 0608972 0608972 0608972 0608972 0608972 0608972
2 - gearbox side 1 0608974 0608974 0608974 0608974 0608974 0608974 0608974
3 Chain guide 1 0608976 0608976 0608976 0608976 0608976 0608976 0608976
4 Chain stripper 1 0608978 0608978 0608978 0608978 0608978 0608978 0608978
5 Load sheave 1 0609374 0609374 0609374 0609374 0609374 0609374 0609374
6 Roll pin 2 9134001 9134001 9134001 9134001 9134001 9134001 9134001
7 Straight pin 2 9124169 9124169 9124169 9124169 9124169 9124169 9124169
8 Straight pin 2 9124111 9124111 9124111 9124111 9124111 9124111 9124111
9 Ball bearing 1 9151106 9151106 9151106 9151106 9151106 9151106 9151106
10 Cyl. screw 1 9102253 9102253 9102253 9102253 9102253 9102253 9102253
11 Cyl. screw 2 9102254 9102254 9102254 9102254 9102254 9102254 9102254
12 Brake motor - 1 speed 1 0600116 0600116 0600116 0600116 0600116 0600116 0600116
- 2 speeds 1 0600117 0600117 0600117 0600117 0600117 0600117 0600117
13 Planetary gear 1 0609678 0609678 0608814 0608814 0609678 0609678 0608814
14 Hex. screw 8 9101660 9101660 9101660 9101660 9101660 9101660 9101660
15 Suspension bolt 2 0609388 0609388 0609388 0609388 0609388 0609388 0609388
16 Bolt locking device 1 0609448 0609448 0609448 0609448 0609448 0609448 0609448
17 Cyl. screw 2 9102150 9102150 9102150 9102150 9102150 9102150 9102150
18 Screw plug 2 9110007 9110007 9110007 9110007 9110007 9110007 9110007
19 Screw plug 1 9192000 9192000 9192000 9192000 9192000 9192000 9192000
20 Screw plug 1 9192003 9192003 9192003 9192003 9192003 9192003 9192003
21 Screw plug 1 9192002 9192002 9192002 9192002 9192002 9192002 9192002
22-23 Suspension hook assy .10609393 0609393 0609393 0609393 0609517 0609517 0609517
23 Safety latch kit 1 0408671 0408671 0408671 0408671 0408672 0408672 0408672
25 Identity plate - 1 speed 1 0609614 0609996 0609456 0609744 0609614 0609997 0609456
- 2 speeds 1 0609615 0609998 0609457 0609745 0609615 0609999 0609457
26 Grooved nail 2 9128004 9128004 9128004 9128004 9128004 9128004 9128004
- Capacity decal 1 0609694 0600002 0609695 0609696 0609682 06000001 0609511
- Nameplate 2 0609692 0609692 0609692 0609692 0609692 0609692 0609692
29 Chain anchor bolt 1 ----0608855 0608855 0608855
