Yale CPE Series

Yale Electric Chain Hoist CPE
electric
Yale
21
1
3
5
7
9
11
10

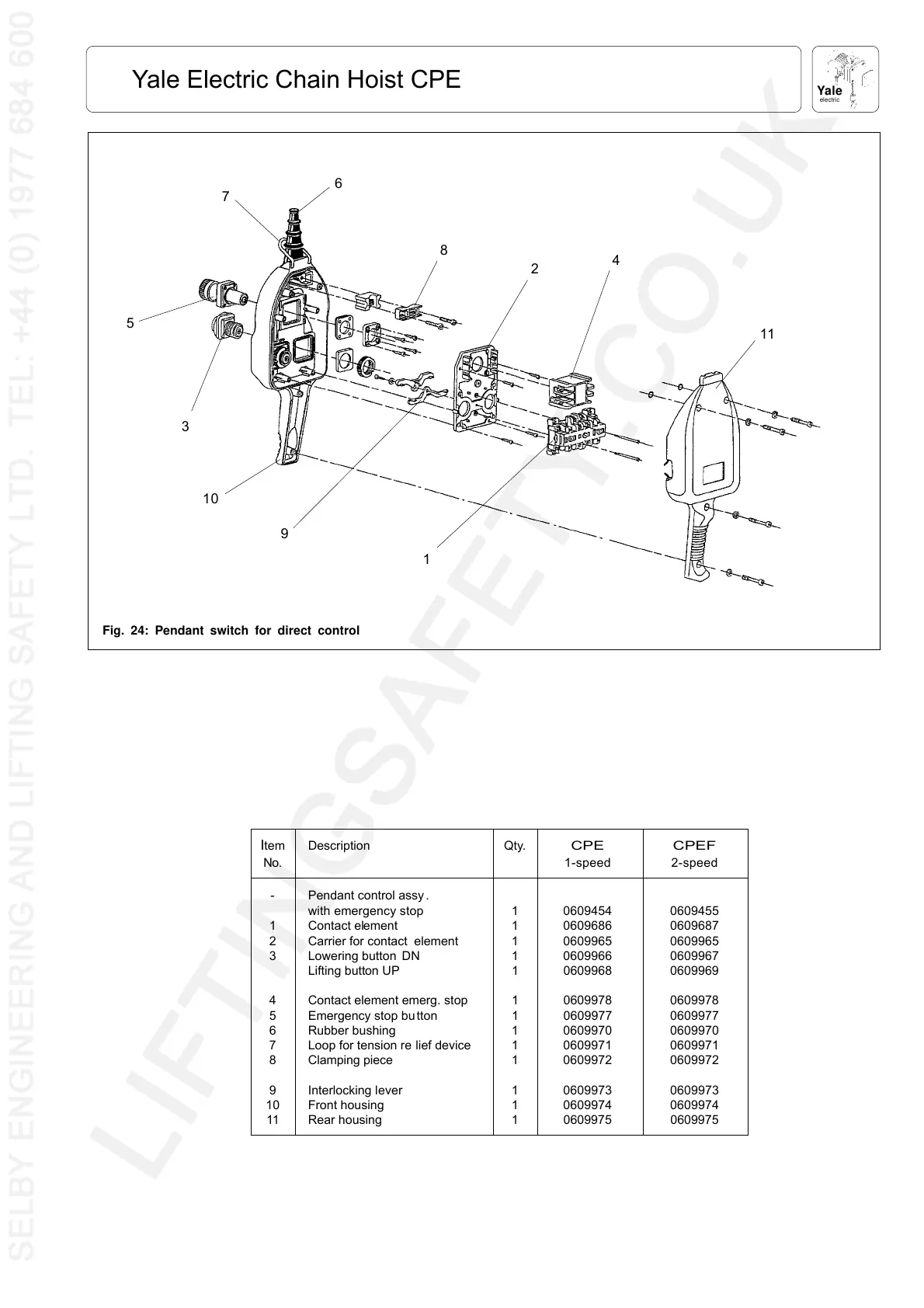

Fig. 24: Pendant switch for direct control
6
8
2
4
I
tem Description Qty. CPE CPEF
No. 1-speed 2-speed
- Pendant control assy .
with emergency stop 1 0609454 0609455
1 Contact element 1 0609686 0609687
2 Carrier for contact element 1 0609965 0609965
3 Lowering button DN 1 0609966 0609967
Lifting button UP 1 0609968 0609969
4 Contact element emerg. stop 1 0609978 0609978
5 Emergency stop bu tton 1 0609977 0609977
6 Rubber bushing 1 0609970 0609970
7 Loop for tension re lief device 1 0609971 0609971
8 Clamping piece 1 0609972 0609972
9Interlocking lever 1 0609973 0609973
10 Front housing 1 0609974 0609974
11 Rear housing 1 0609975 0609975
