Yale Electric Chain Hoist CPE
electric
Yale
25

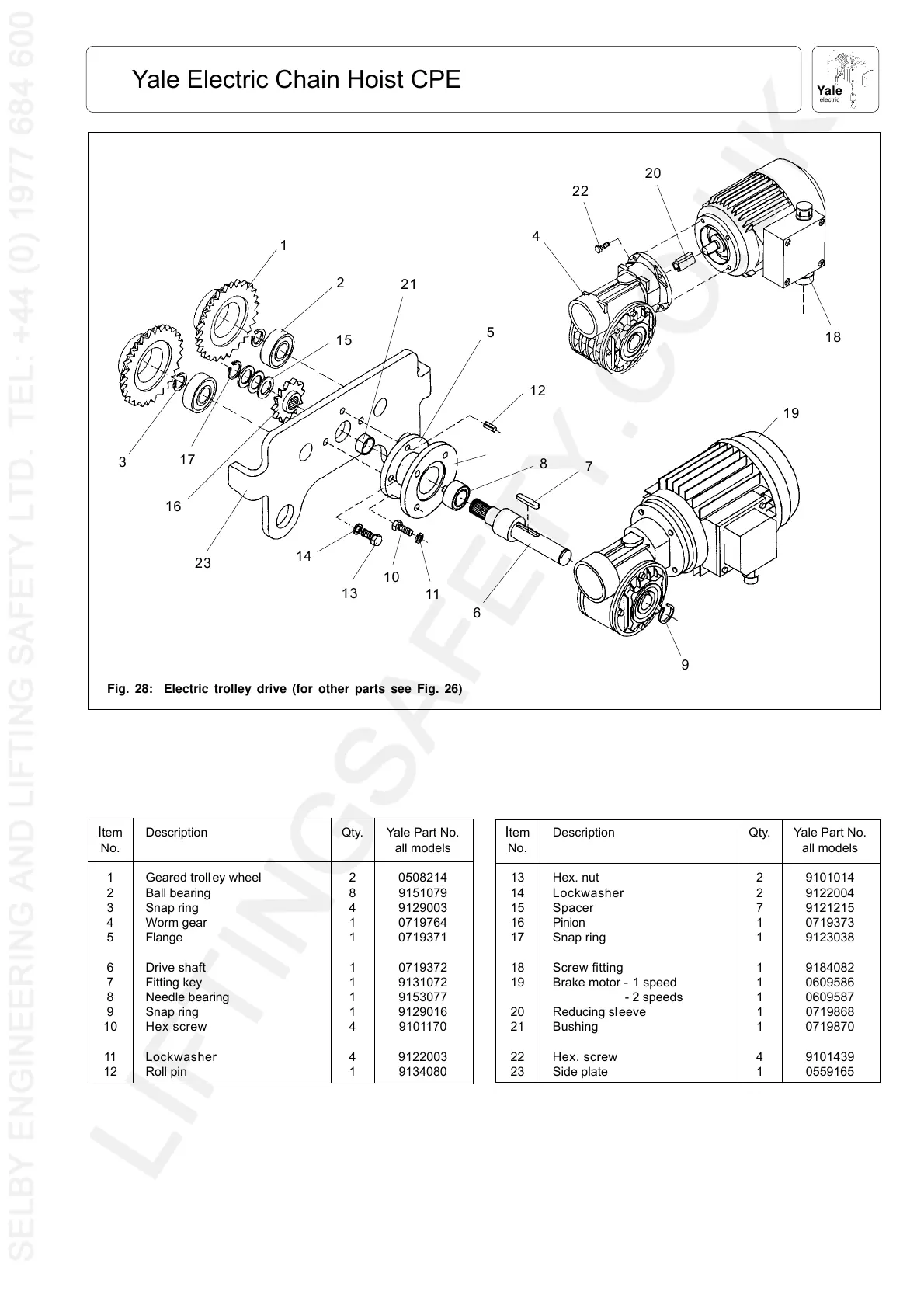

Fig. 28: Electric trolley drive (for other parts see Fig. 26)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
I
tem Description Qty. Yale Part No.
No. all models
1 Geared troll ey wheel 2 0508214
2 Ball bearing 8 9151079
3 Snap ring 4 9129003
4 Worm gear 1 0719764
5 Flange 1 0719371
6Drive shaft 1 0719372
7Fitting key 1 9131072
8 Needle bearing 1 9153077
9 Snap ring 1 9129016
10 Hex screw 4 9101170
11 Lockwasher 4 9122003
12 Roll pin 1 9134080
Item Description Qty. Yale Part No.
No. all models
13 Hex. nut 2 9101014
14 Lockwasher 2 9122004
15 Spacer 7 9121215
16 Pinion 1 0719373
17 Snap ring 1 9123038
18 Screw fitting 1 9184082
19 Brake motor - 1 speed 1 0609586
- 2 speeds 1 0609587
20 Reducing sleeve 1 0719868
21 Bushing 1 0719870
22 Hex. screw 4 9101439
23 Side plate 1 0559165
