Yale Electric Chain Hoist CPE
Yale
electric
26
Pendant switch for direct control Pendant switch for contactor control
Item Description Qty. Hoist 1G Hoist 2G Hoist 2G Hoist 1G Hoist 1G Hoist 2G Hoist 2G Hoist 1G
No. Trolley 1G Trolley 2G Trolley 1G Trolley 2G Trolley 1G Trolley 2G Trolley 1G Trolley 2G
1-18 Control switch assy . 1 0609610 0609611 0609832 0609833 0609612 0609613 0609806 0609807
1 Contact element hoist 1 0609686 0609687 0609687 0609686 0600032 0600034 0600034 0600032
Contact element hoist 1 - - - - 0600033 - - 0600033
2 Contact element trolley 1 0600022 0600029 0600022 0600029 0600032 0600034 0600032 0600034
Contact element trolley1 ----0600033 - 0600033 -
3 -button DN, hoist 1 0600023 0600030 0600030 0600023 0600023 0600030 0600030 0600023
4 -button UP, hoist 1 0600024 0600031 0600031 0600024 0600024 0600031 0600031 0600024
5 -button LEFT, trolley 1 0600023 0600030 0600023 0600030 0600023 0600030 0600023 0600030
6 -button RIGHT, trolley 1 0600024 0600031 0600024 0600031 0600024 0600031 0600024 0600031
7 Contact element em. stop 1/2* 0609978 0600032
8-10 Housing assy. without
contacts and buttons 1 0600028 0600035
8 Front housing 1 on request
9 Housing centre part 1 on request
10 Rear housing 1 on request
11 Rubber bushing 1 0600025
12 Clamping piece 1 0609972
13 Interlocking lever 2 0609973
14 Dust cap 1 0600026
15 Rubber bushing support 1 0600027
16 Emergency stop bu tton 1 0609977
* for contactor control only 1G = 1 speed; 2G = 2 speeds

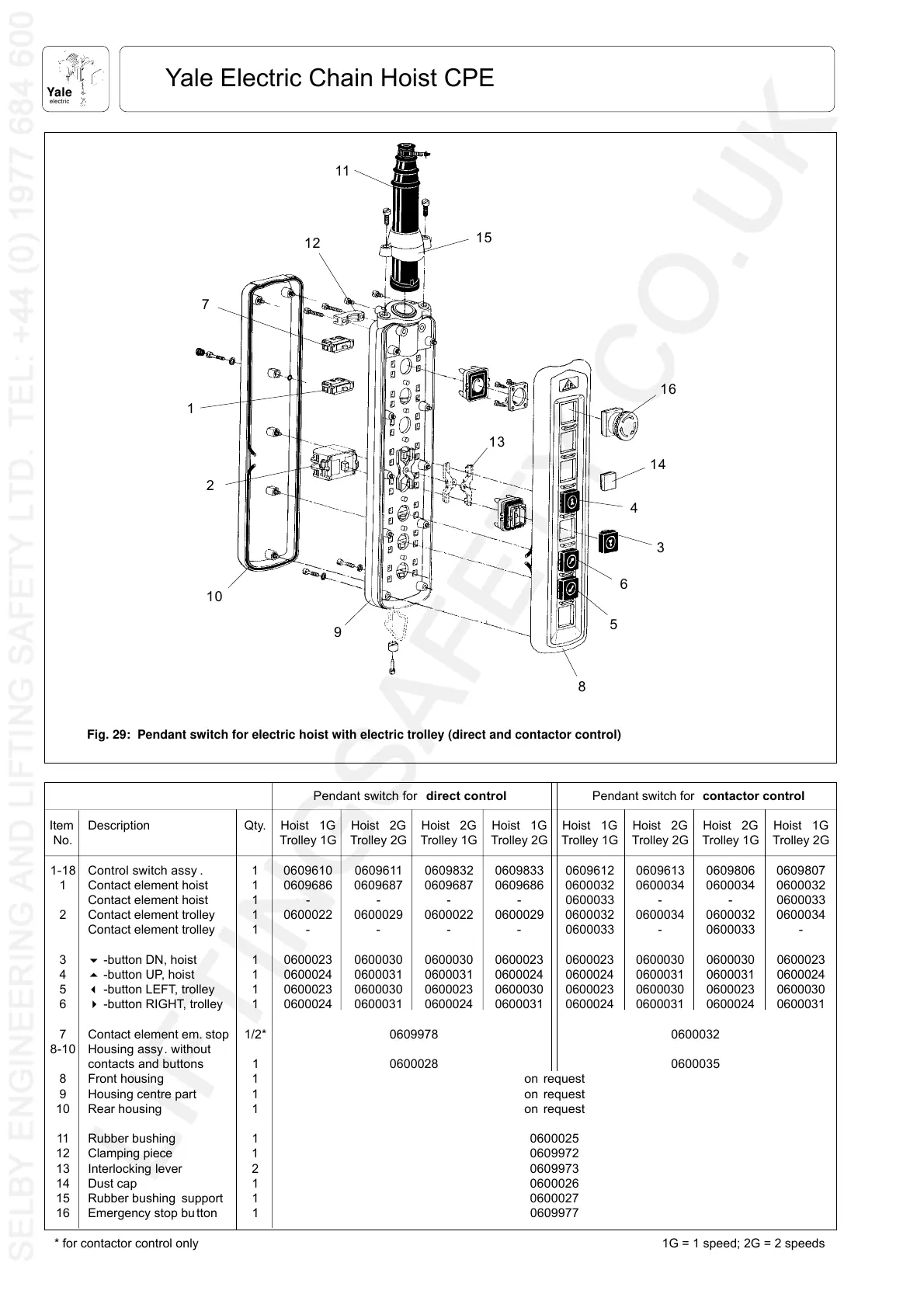

Fig. 29: Pendant switch for electric hoist with electric trolley (direct and contactor control)
