Yale CPE Series User Manual

Yale Electric Chain Hoist CPE
electric
Yale
23
I
tem Description Qty. Yale Part No.
No. all models
1Side plate10559163
2Side plate10559167
3Roll pin 4 9134120
4Crossbar - beam range A 2 0559169
Crossbar - beam range B 2 0559170
5 Round nut 4 0559168
6Washer 4 9121213
7 Hex. nut 4 9115156
2
5
8
6
8
6
8
8
6
1
9
5
15
15
13
6
11
9
5
4
4
5
11
10
3
9
7
10
7
12
7
14

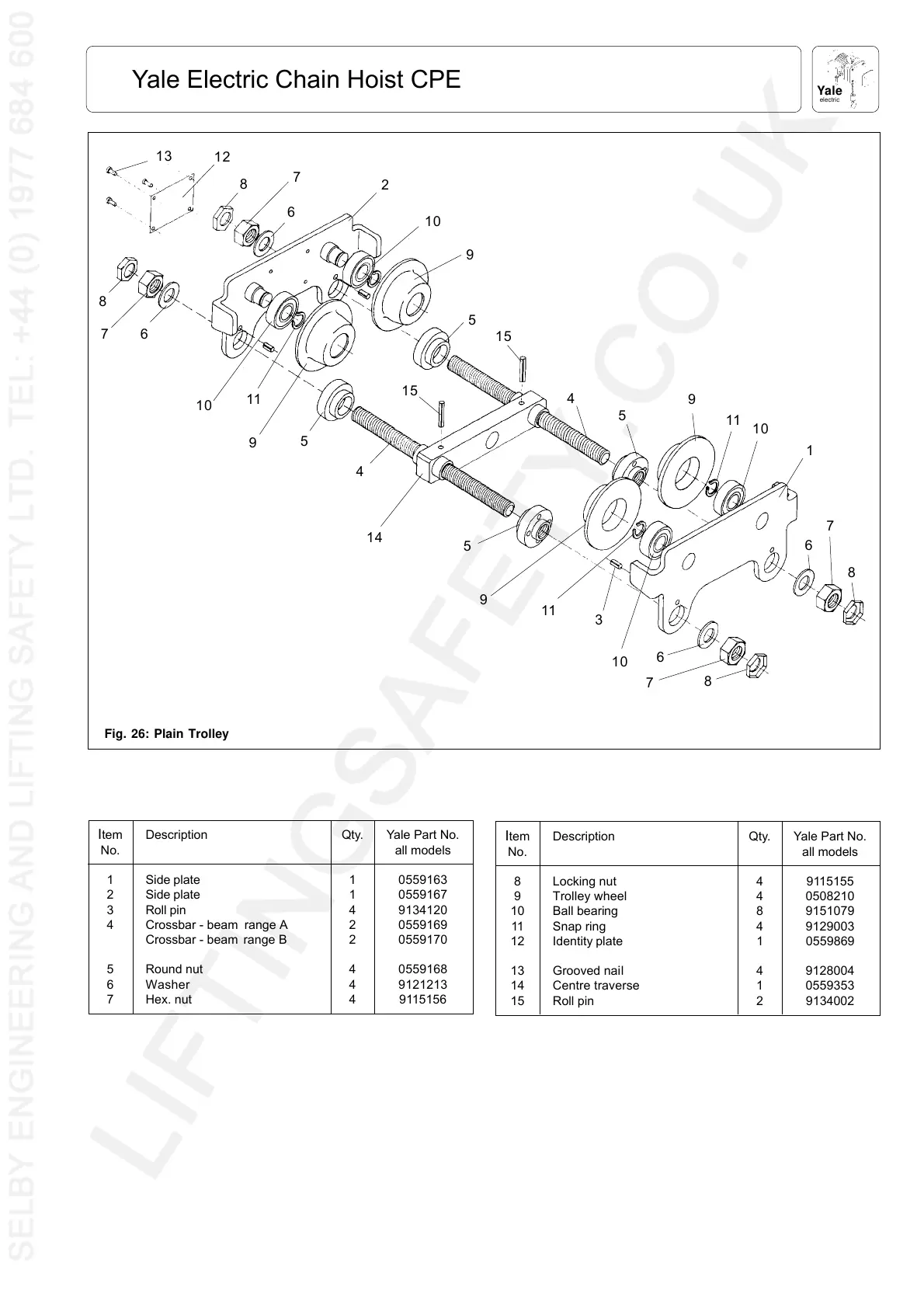

Fig. 26: Plain Trolley
9
10
7
10
11
Item Description Qty. Yale Part No.
No. all models
8 Locking nut 4 9115155
9Trolley wheel 4 0508210
10 Ball bearing 8 9151079
11 Snap ring 4 9129003
12 Identity plate 1 0559869
13 Grooved nail49128004
14 Centre traverse 1 0559353
15 Roll pin 2 9134002
