Yale CPE Series User Manual

Yale Electric Chain Hoist CPE
Yale
electric
28
Item Description Qty. Yale Part No.
No. all models
1Plate 1 0719741
2 Screw 2 9103005
3 Housing 1 0609878
4 Screw 4 9107023
5Carrier 1 0609877
6 Screw 2 9108018
7Screwed fitting 3 9184082
8 Counter-nut 3 9184086
9Screwed fitting 1 9184088
10 Counter-nut 1 9184087
11 Terminal 11 0609811
12 Ground terminal 2 0609812
13 Name tag 110609813
Name tag 210609814
Name tag 310609815
Name tag 410609816
Name tag 510609848
Name tag 910609872
Name tag 10 1 0609873
Name tag 11 1 0609874
Name tag L1 1 0609817
Name tag L2 1 0609818
Name tag PE 1 0609819
Name tag 3 0609821
2
7
26
9
27
12
11
13
16
3
4
5
6
12
20
23
25
24
22
20
21
21
17
19

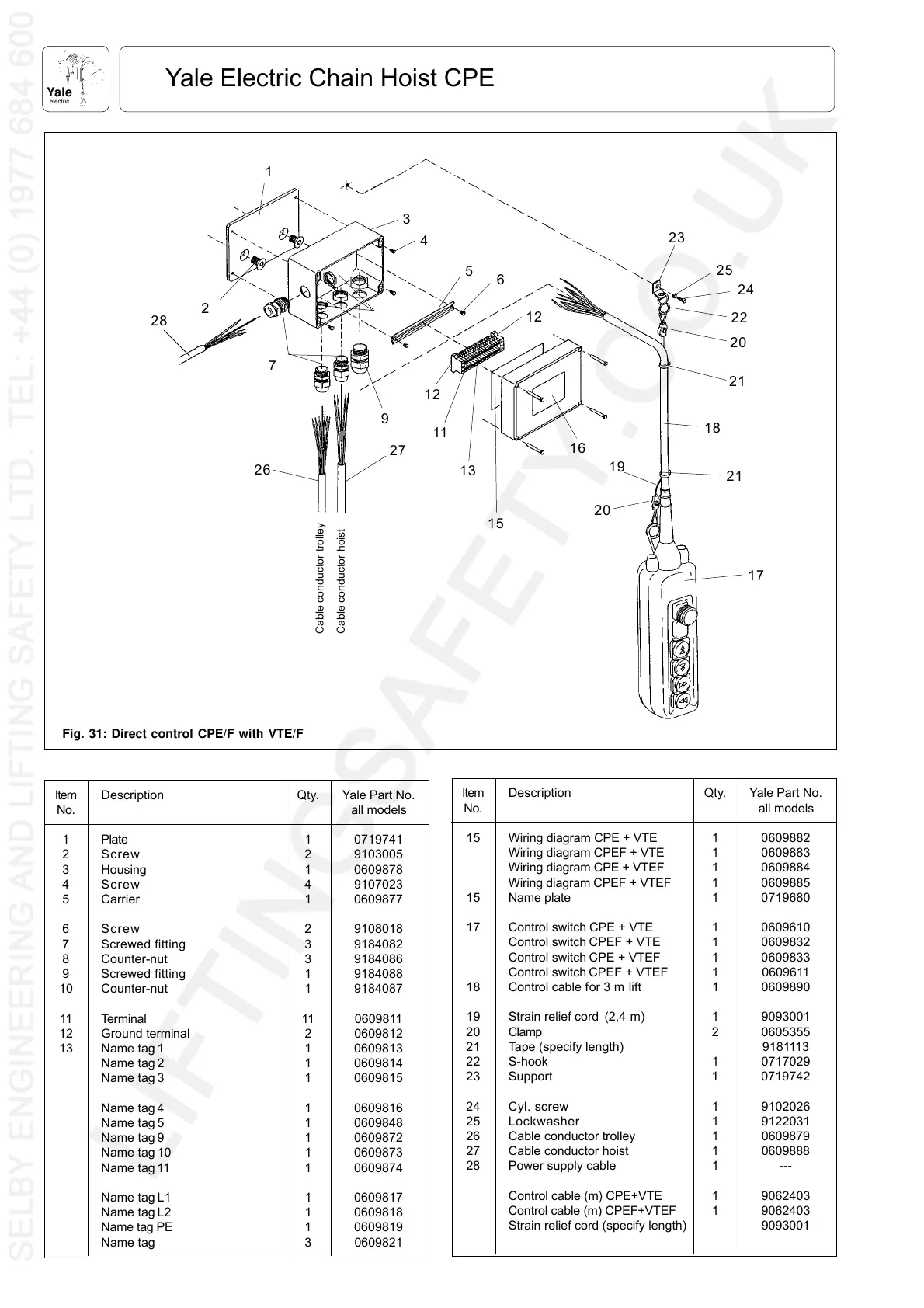

Fig. 31: Direct control CPE/F with VTE/F
1
15
18
Cable conductor trolley
Cable conductor hoist
Zuleitung
Item Description Qty. Yale Part No.
No. all models
15 Wiring diagram CPE + VTE 1 0609882
Wiring diagram CPEF + VTE 1 0609883
Wiring diagram CPE + VTEF 1 0609884
Wiring diagram CPEF + VTEF 1 0609885
15 Name plate 1 0719680
17 Control switch CPE + VTE 1 0609610
Control switch CPEF + VTE 1 0609832
Control switch CPE + VTEF 1 0609833
Control switch CPEF + VTEF 1 0609611
18 Control cable for 3 m lift 1 0609890
19 Strain relief cord (2,4 m) 1 9093001
20 Clamp 2 0605355
21 Tape (specify length) 9181113
22 S-hook 1 0717029
23 Support 1 0719742
24 Cyl. screw 1 9102026
25 Lockwasher 1 9122031
26 Cable conductor trolley 1 0609879
27 Cable conductor hoist 1 0609888
28 Power supply cable 1 ---
Control cable (m) CPE+VTE 1 9062403
Control cable (m) CPEF+VTEF 1 9062403
Strain relief cord (specify length) 9093001
28
