Yale Electric Chain Hoist CPE
electric
Yale
27
Cable conductor
trolley
Item Description Qty. Yale Part No.
No. all models
1Plate 1 0719732
2 Screw 2 9103005
3 Housing 1 0719722
4 Mounting plate 1 0719721
5 Screw 4 9108018
6Screw fitting 4 9184082
7 Counter-nut 4 9184086
8Contactor 2 0609558
9 Screw 8 9107005
10 Transformer 1 0719760
11 Screw 4 9107011
12 Fine-wire fuse 1 9190129
13 Fuse terminal 2 0609808
14 Fine-wire fuse 2 9190130
15 Terminal 8 0609811
16 Ground terminal 2 0609812
17 Name tag 110609813
Name tag 210609814
Name tag 310609815
Name tag 510609848
Name tag 610609849
Name tag L1 1 0609817
Name tag L2 1 0609818
Name tag L3 1 0609819
Name tag PE 1 0609820
* only CPEF + VTEF
13
11
19
26
28
27
23
24
24
32
12
1
3
31
6
Zuleitung
Cable conductor
hoist

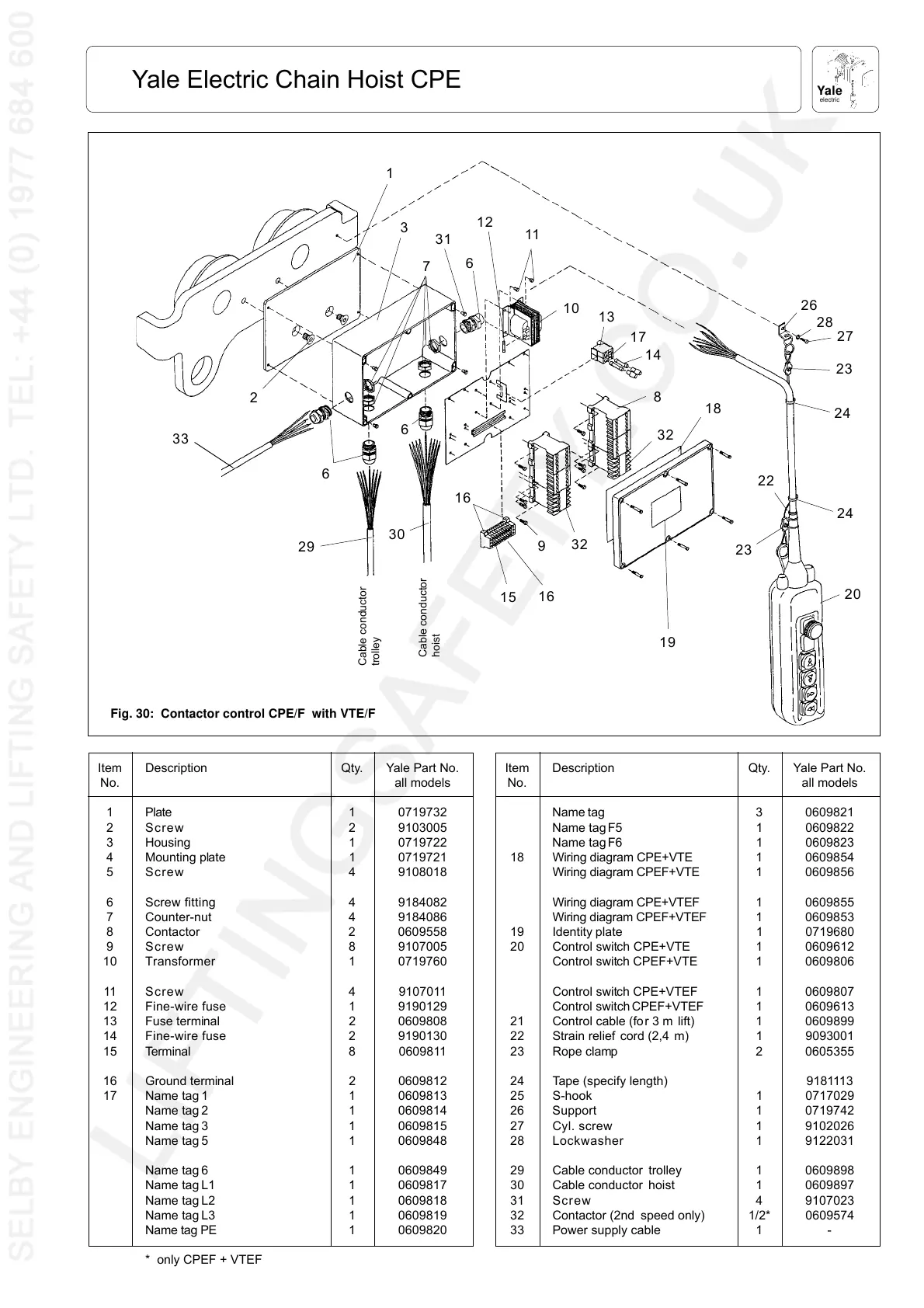

Fig. 30: Contactor control CPE/F with VTE/F
7
14
17
10
2
6
6
29
30
16
9
15
16
20
23
22
18
8
32
Item Description Qty. Yale Part No.
No. all models
Name tag 3 0609821
Name tag F5 1 0609822
Name tag F6 1 0609823
18 Wiring diagram CPE+VTE 1 0609854
Wiring diagram CPEF+VTE 1 0609856
Wiring diagram CPE+VTEF 1 0609855
Wiring diagram CPEF+VTEF 1 0609853
19 Identity plate 1 0719680
20 Control switch CPE+VTE 1 0609612
Control switch CPEF+VTE 1 0609806
Control switch CPE+VTEF 1 0609807
Control switch CPEF+VTEF10609613
21 Control cable (for 3 m lift) 1 0609899
22 Strain relief cord (2,4 m) 1 9093001
23 Rope clamp20605355
24 Tape (specify length) 9181113
25 S-hook 1 0717029
26 Support 1 0719742
27 Cyl. screw 1 9102026
28 Lockwasher 1 9122031
29 Cable conductor trolley10609898
30 Cable conductor hoist 1 0609897
31 Screw 4 9107023
32 Contactor (2nd speed only) 1/2* 0609574
33 Power supply cable 1 -
