Yale CPE Series User Manual

Yale Electric Chain Hoist CPE
Yale
electric
24
1
10
15
11
6
3
2
12
8
9
7
6

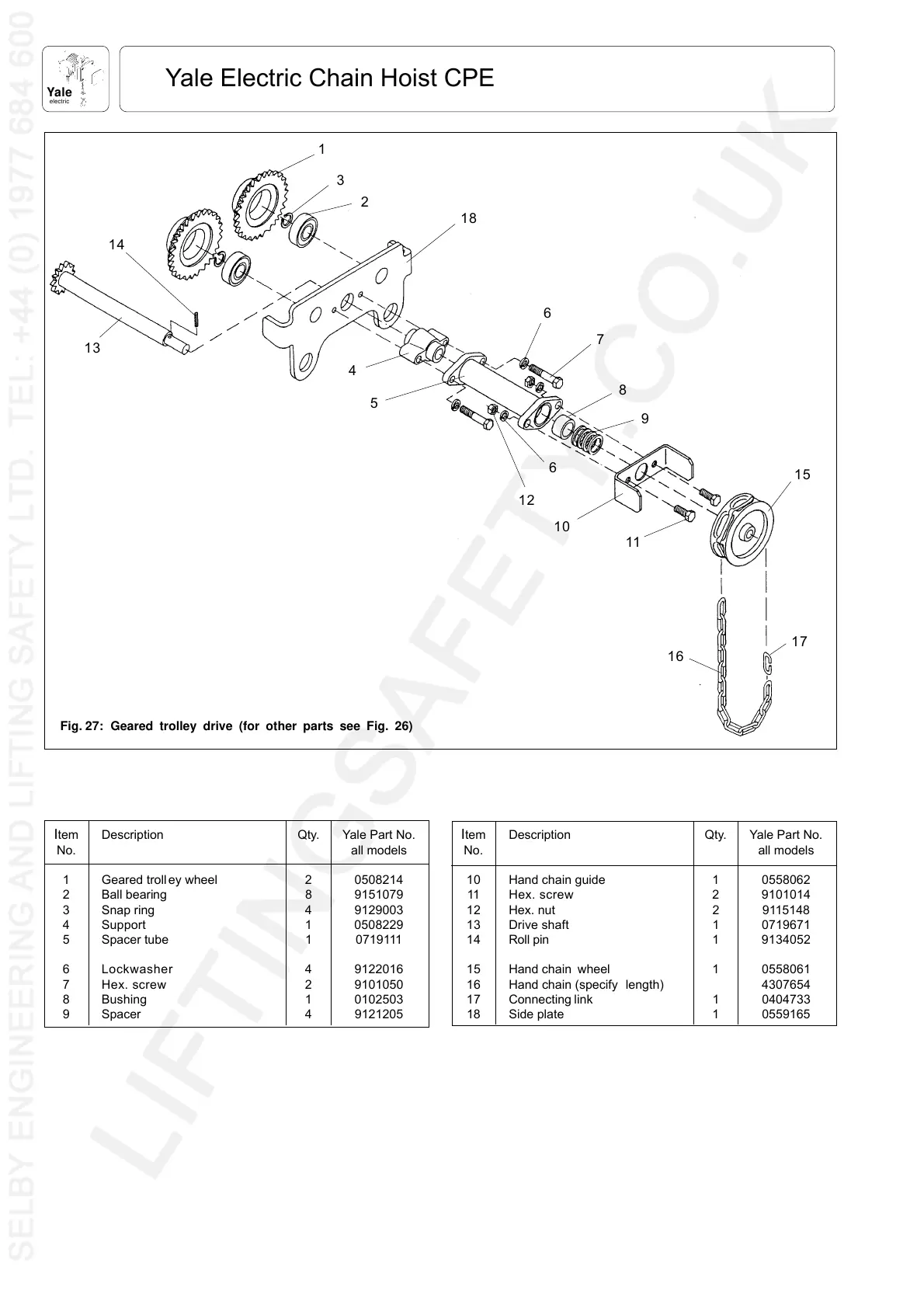

Fig. 27: Geared trolley drive (for other parts see Fig. 26)
17
16
5
4
18
13
14
I
tem Description Qty. Yale Part No.
No. all models
1 Geared troll ey wheel 2 0508214
2 Ball bearing 8 9151079
3 Snap ring 4 9129003
4 Support 1 0508229
5 Spacer tube 1 0719111
6 Lockwasher 4 9122016
7 Hex. screw 2 9101050
8 Bushing 1 0102503
9 Spacer 4 9121205
Item Description Qty. Yale Part No.
No. all models
10 Hand chain guide 1 0558062
11 Hex. screw 2 9101014
12 Hex. nut 2 9115148
13 Drive shaft 1 0719671
14 Roll pin 1 9134052
15 Hand chain wheel 1 0558061
16 Hand chain (specify length) 4307654
17 Connecting link 1 0404733
18 Side plate 1 0559165

Yale CPE Series Specifications

General

Brand	Yale
Model	CPE Series
Category	Chain Hoists
Language	English
