1. MOUNTING PLATE
2. BATTERY CONNECTOR (RED)
3. CONTROLLER
4. HORN
5. WASHER
6. LOCKWASHER
7. CAPSCREW
8. CAPSCREW
9. CAPSCREW
10. NUT
11. FUSE (175 AMP)
12. FUSE (5 AMP)
13. BOLT
14. LOCKWASHER
15. NUT
16. DISPLAY
17. IGNITION SWITCH

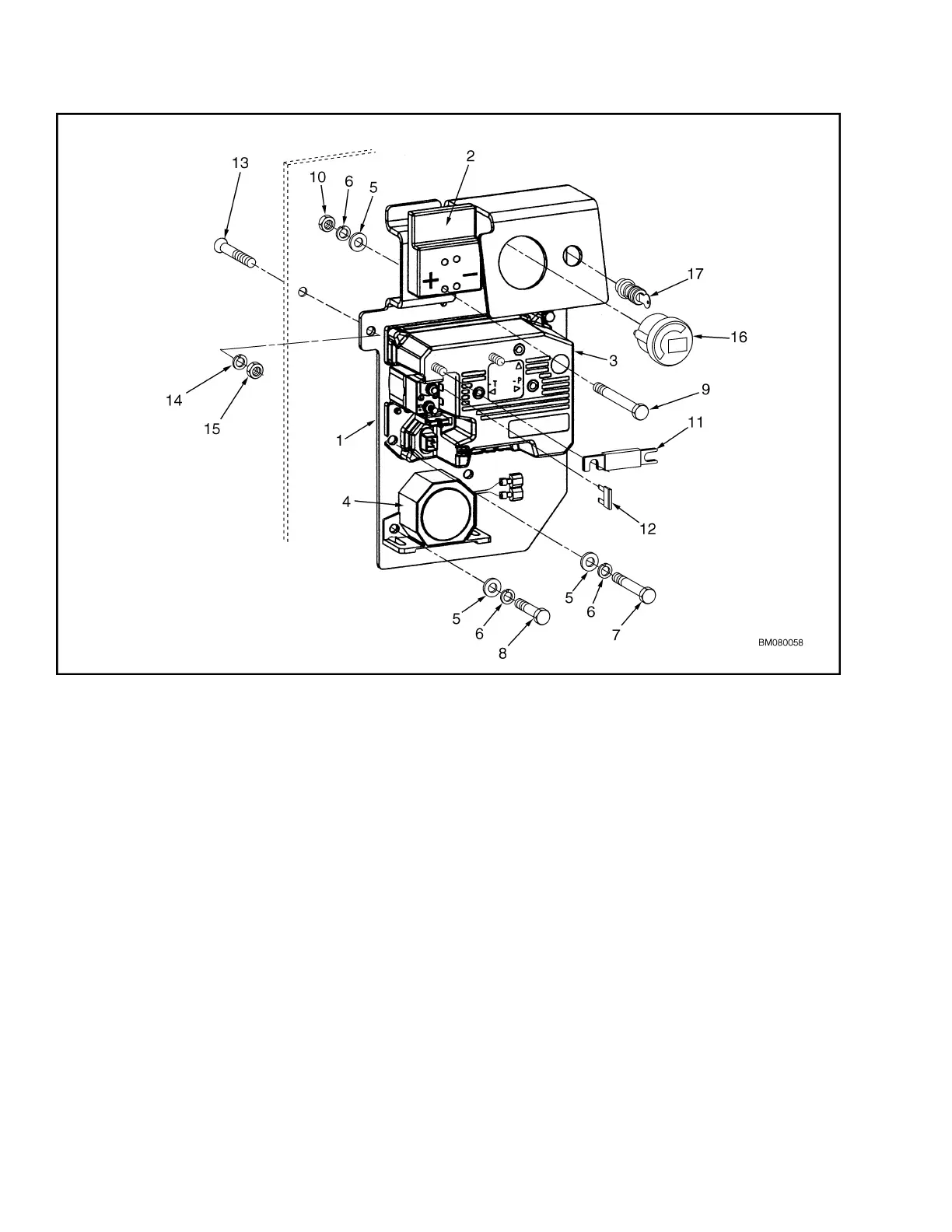

Figure 6. Control Panel (MPB040-E)
Repairs 2200 YRM 1007
