1. MOUNTING PLATE
2. CONTROLLER
3. CAPSCREW
4. CONTACTOR
5. BATTERY CONNECTOR MOUNT
6. WIRE CLAMP
7. LOCKWASHER
8. CONVERTER (12 V TRUCKS ONLY)
9. CAPSCREW
10. CAPSCREW
11. WASHER
12. WASHER
13. LOCKWASHER
14. CAPSCREW
15. NUT
16. DISPLAY
17. IGNITION SWITCH
18. CAPSCREW
19. LOCKWASHER
20. NUT
21. FUSE (250 AMP)
22. HORN

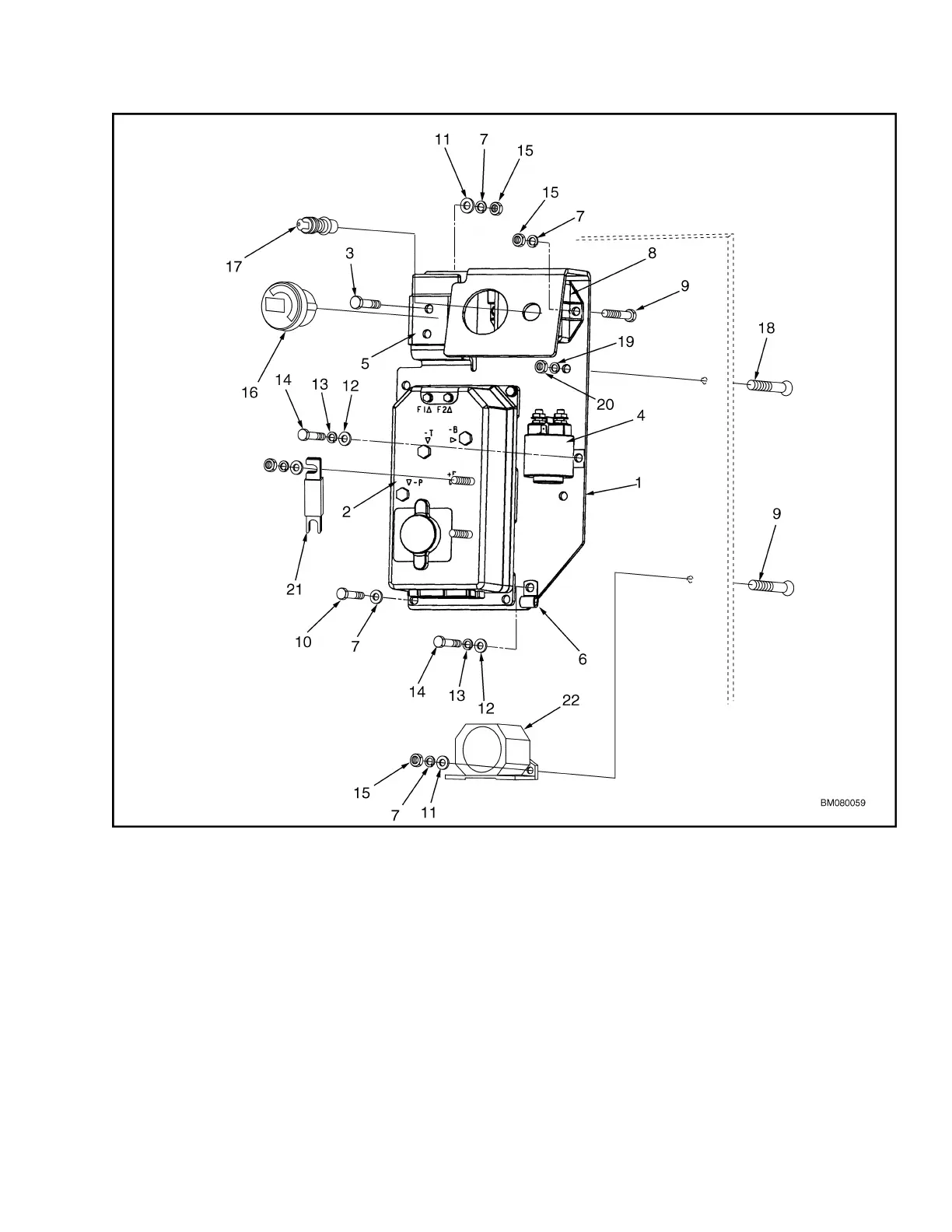

Figure 7. Control Panel (MPW045/050-E, MSW020/025-E, and MSW025/030-F)
2200 YRM 1007 Repairs
