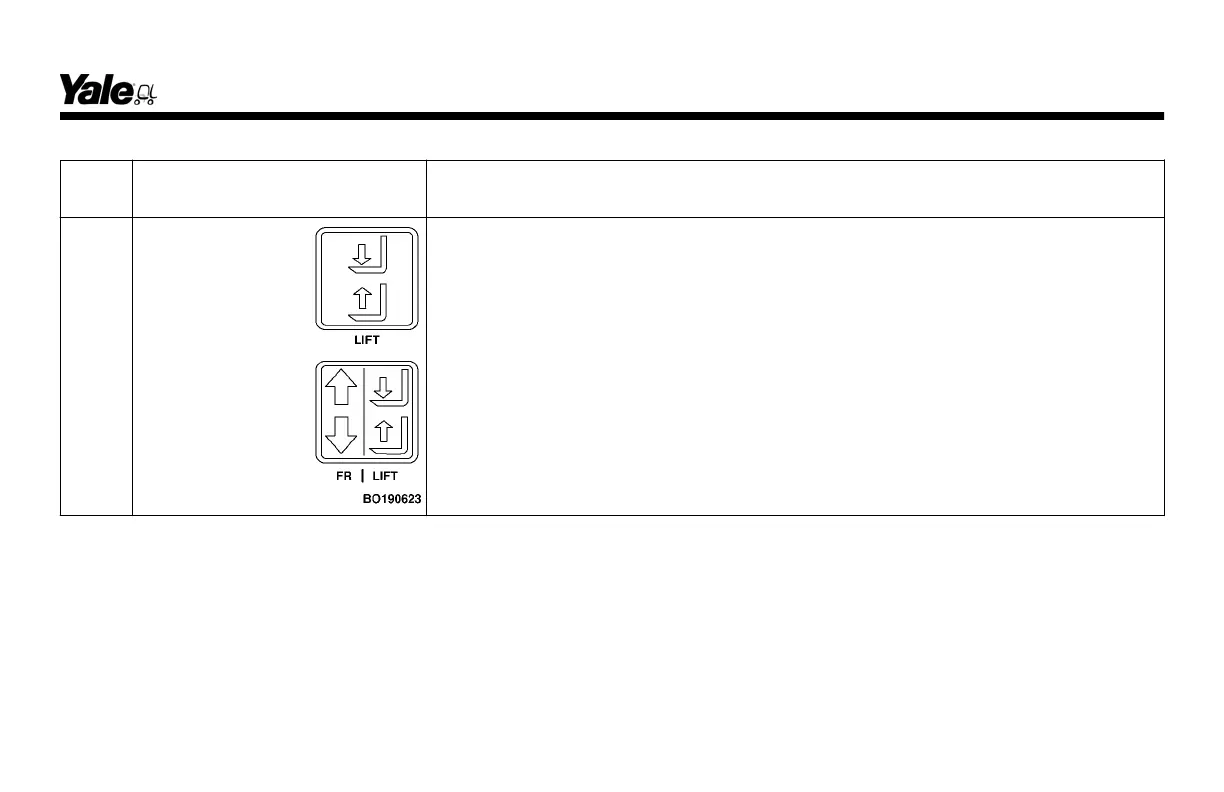

Table 4. Operator Controls (See Figure 8) (Continued)
Item
No.
Item Function
8 Lift/Lower Control
Lever
NOTE: Manual hydraulic
control levers are standard on the trucks covered in this
manual (see Figure 8). Two optional controls are available for the hydraulic func-
tions: electronic hydraulic mini-levers (see Figure 8) and a joystick (see Figure 10
and Table 5).
NOTE: To operate the mini-levers, the operator must be on the seat and the arm
rest must be in the down position.
The lift/lower control lever can be either the first manual lever or first mini-lever to
the right of the operator's seat. Pull backward toward the operator to raise the car-
riage and forks. Push forward to lower the carriage and forks.
