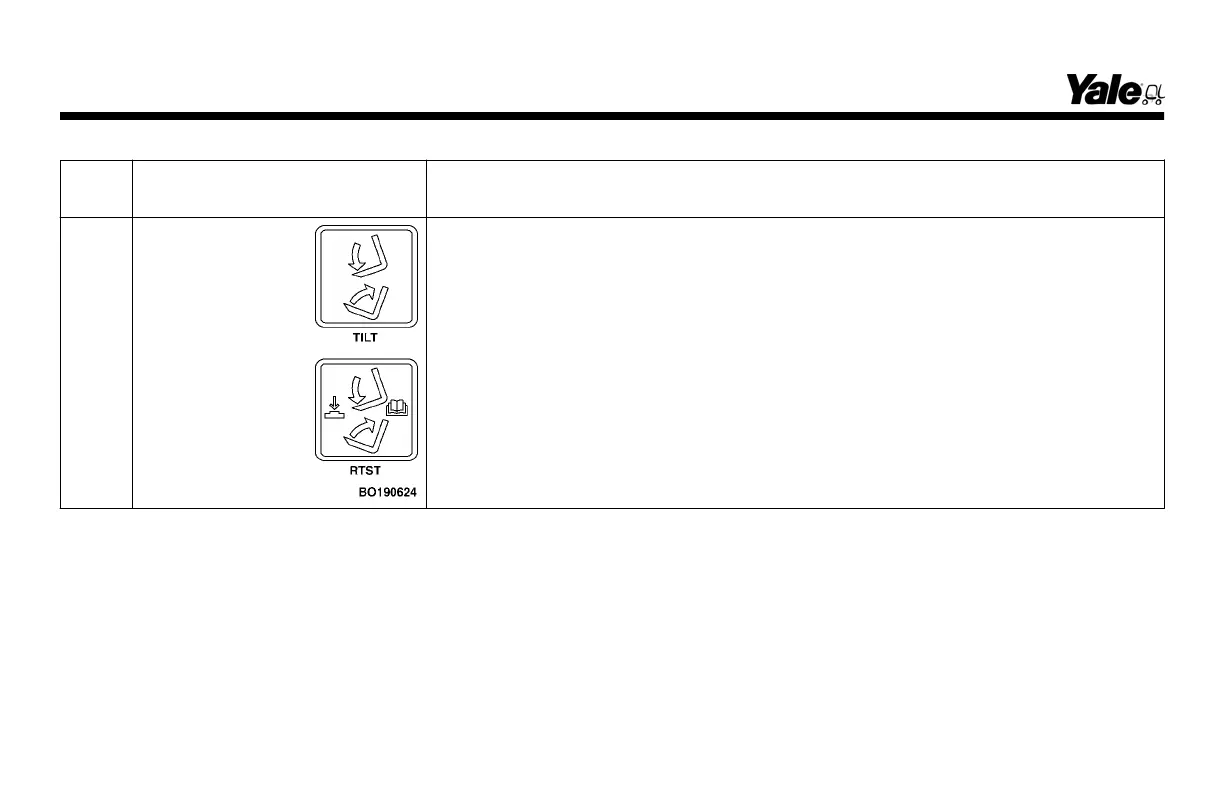

Table 4. Operator Controls (See Figure 8) (Continued)
Item
No.
Item Function
9 Tilt Control Lever NOTE: Manual hydraulic
control levers are standard on the trucks covered in this
manual (see Figure 8). Two optional controls are available for the hydraulic func-
tions: electronic hydraulic mini-levers (see Figure 8) and a joystick (see Figure 10
and Table 5).
NOTE: To operate the mini-levers, the operator must be positioned in the seat
and the arm rest must be in the down position.
The tilt control lever can be either the second manual lever or second mini-lever to
the right of the operator's seat. Push the lever forward to tilt the mast and forks
forward. Pull the lever backward toward the operator to tilt the mast and forks
backward.
