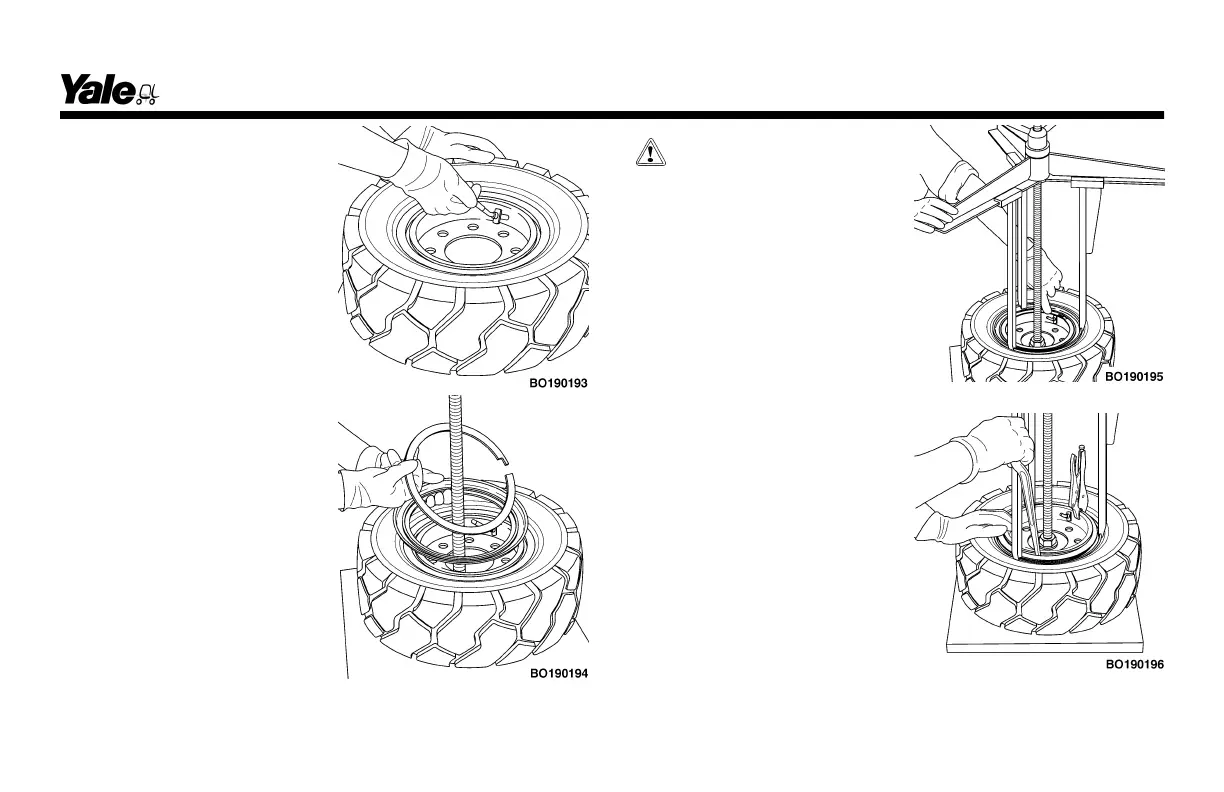

5. For TBS, with separate
valve stems, place the wheel
and tire assembly on a flat sur-
face. Turn the valve a 1/4 turn
to lock the collar under the
edges of the rim valve slot.
6. Raise the tire and position
the base and threaded stem of
the press through the hole in
the center of the wheel. Insert
in wheel assembly, the follow-
ing parts:
Advance band (four-piece
wheel only)
Loose flange
Locking ring
7. Position the advance band.
Ensure that it does not go in
too far and damage the valve.
Position the arms of the press
onto the loose flange.
CAUTION
DO NOT compress the bead
too far and cause the rubber
sealing ring to become dis-
torted and damage the valve
stem.
Push down on press to
depress the tire beads until the
locking ring groove is fully
exposed.
8. Insert tire tool into the lock-
ing ring groove, and a vise grip
on other end. Remove vise
grip. Release the press and
check that all component parts
are correctly positioned.
Replace the valve core.
9. Inflate tire to 103 kPa
(15 psi). Tap wheel with a mal-
let to ensure all components
are correctly sealed. Remove the press from wheel and tire
assembly.
Maintenance
187
