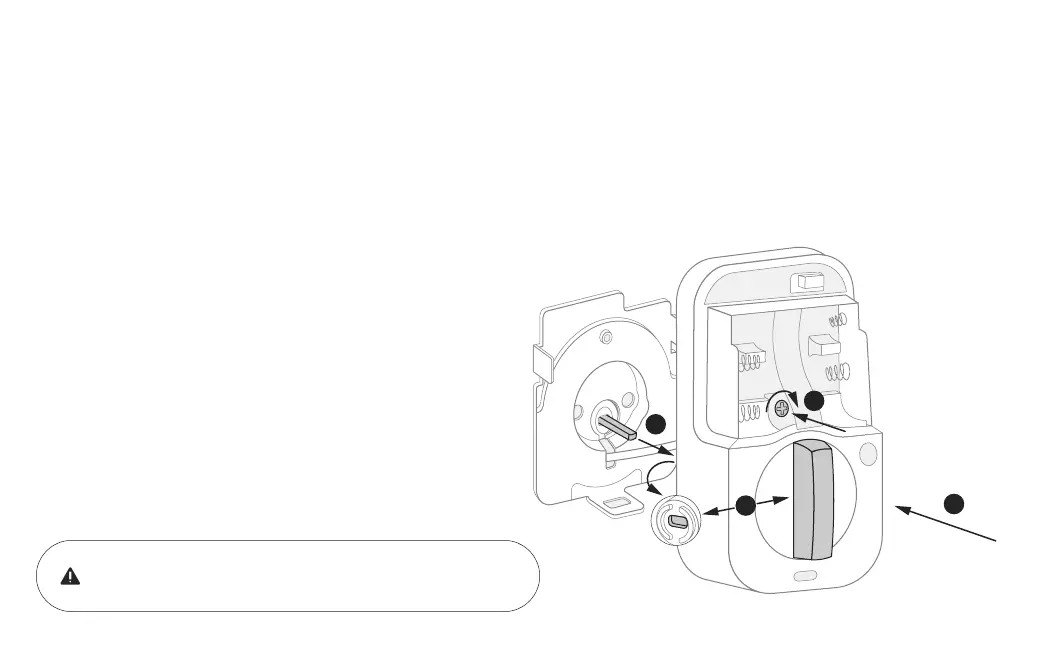

1. Make sure the tailpiece slot is in horizontal position. Use the
thumbturn to adjust if needed.
2. Slide the tailpiece through the designated slot on the back of the
thumbturn.
3. Press the lock against the mounting plate, adjusting its position until
it clicks into place and the bottom of the lock is held in place.
4. Tighten the one pre-installed screw.
3
When fully tightened, lock should be flush to door.
6
Install Interior Lock
2
1
4
To Next Page
