Yamaha 2009 Diversion XJ6S User Manual

PERIODIC MAINTENANCE
3-30
EAS20630

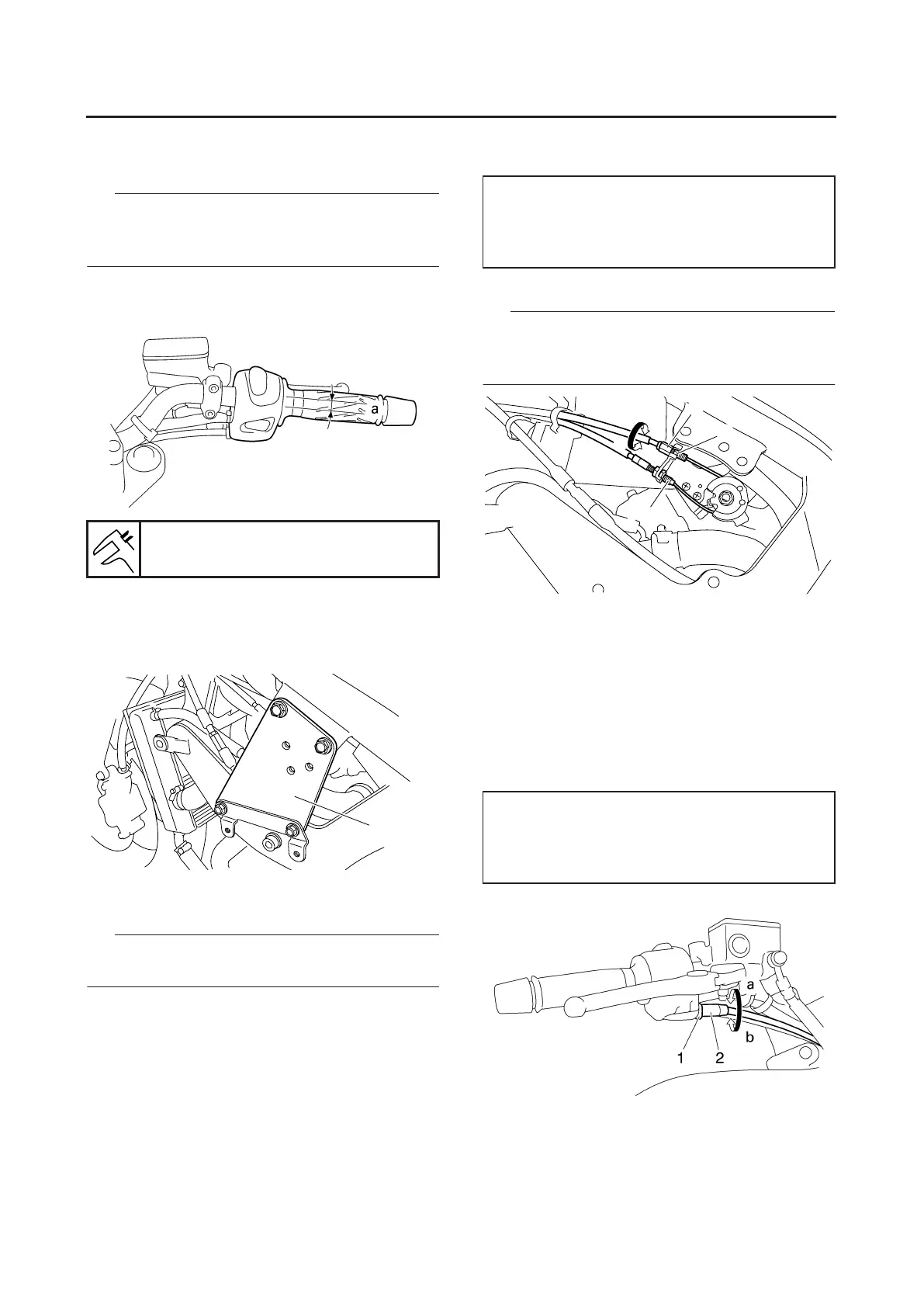

ADJUSTING THE THROTTLE CABLE FREE
PLAY
TIP
Prior to adjusting the throttle cable free play, the
engine idling speed and throttle bodies synchro-
nization should be adjusted properly.
1. Check:
●
Throttle cable free play “a”
Out of specification → Adjust.
2. Remove:
●
Left side panel
Refer to “GENERAL CHASSIS” on page 4-1.
●
Gusset “1”
3. Adjust:
●
Throttle cable free play
TIP
When the throttle is opened, the accelerator ca-
ble “1” is pulled.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
Throttle body side
a. Loosen the adjusting nut “2” on the decelera-
tor cable.
b. Turn the locknut “3” in direction “a” or “b” to
take up any slack on the decelerator cable.
c. Tighten the adjusting nut.
TIP
If the specified throttle cable free play cannot be
obtained on the throttle body side of the cable,
use the adjusting nut on the handlebar side.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
Handlebar side
a. Loosen the locknut “1”.
b. Turn the adjusting nut “2” in direction “a” or
“b” until the specified throttle cable free play
is obtained.
c. Tighten the locknut.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
4. Install:
●
Gusset “1”
Throttle cable free play
3.0 – 5.0 mm (0.12 – 0.20 in)
1
Direction “a”
Throttle cable free play is increased.
Direction “b”
Throttle cable free play is decreased.
Direction “a”
Throttle cable free play is increased.
Direction “b”
Throttle cable free play is decreased.
a
b
1
2
3
❄❉❂❋✦❇ ✦✣  

Yamaha 2009 Diversion XJ6S Specifications

General

Year	2009
Manufacturer	Yamaha
Model	Diversion XJ6S
Category	Motorcycle
Displacement	600 cc
Bore x Stroke	65.5 mm x 44.5 mm
Compression Ratio	12.2:1
Fuel System	Fuel Injection
Ignition	TCI
Transmission	6-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Rear Suspension	Swingarm
Front Tire	120/70 ZR17
Rear Tire	160/60 ZR17
Length	2, 120 mm
Width	770 mm
Height	1, 210 mm
Seat Height	785 mm
Wheelbase	1, 440 mm
Ground Clearance	140 mm
Fuel Capacity	17.3 liters
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-cylinder
Power	77.5 hp @ 10, 000 rpm
Front Brake	Dual disc
Rear Brake	245 mm disc
