Yamaha 2009 Diversion XJ6S User Manual

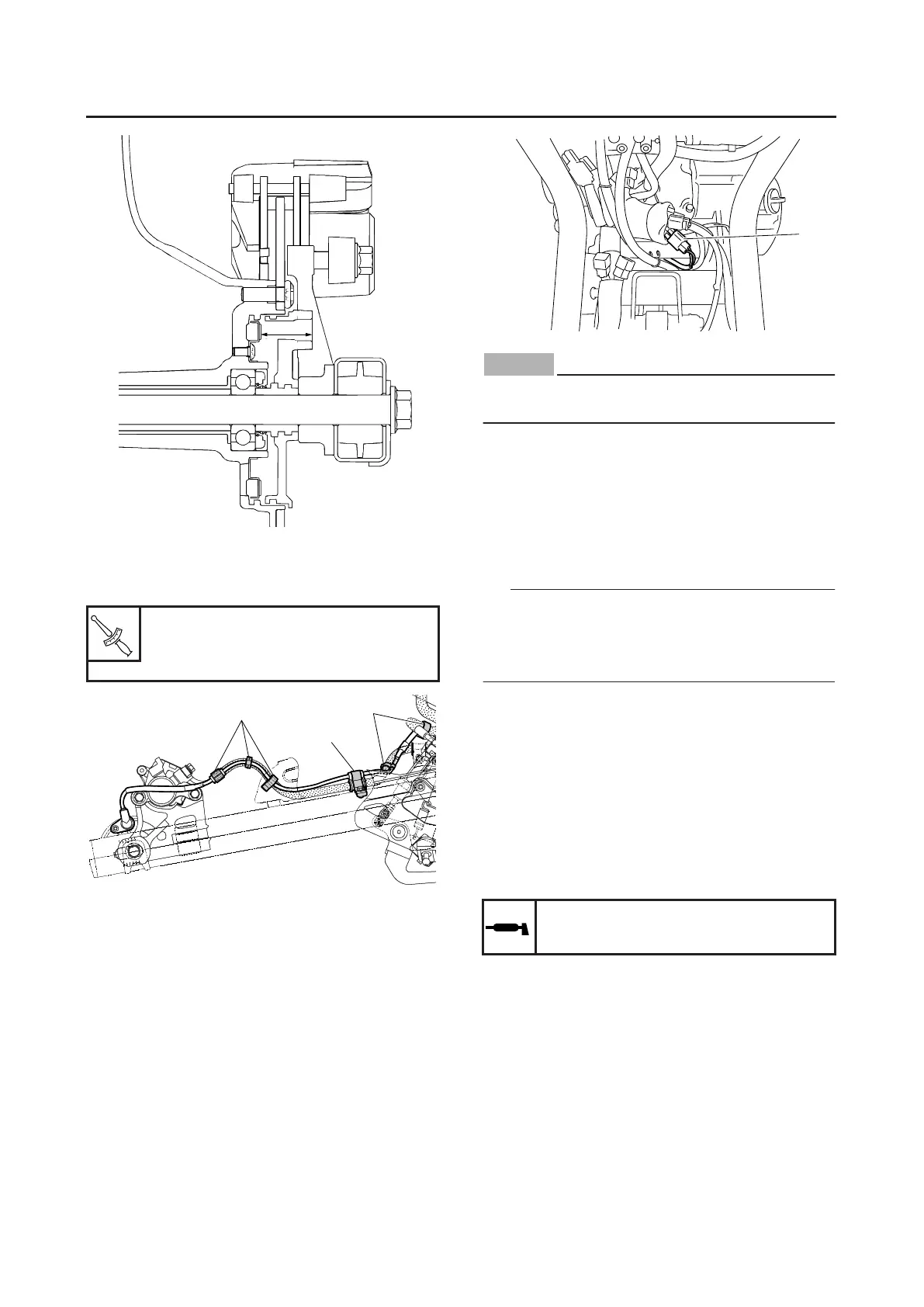

REAR WHEEL
4-21
6. Install:
●
Rear wheel sensor lead holder “3”
● Clamp “4”
7. Connect:
●
Rear wheel sensor coupler “5”
NOTICE
ECA14500
To route the rear wheel sensor lead, refer to
“CABLE ROUTING” on page 2-43.
8. Check:
●
Rear wheel sensor installation
Check if the wheel sensor housing is installed
properly.
EAS22150
ADJUSTING THE REAR WHEEL STATIC
BALANCE
TIP
●
After replacing the tire, wheel or both, the rear
wheel static balance should be adjusted.
●
Adjust the rear wheel static balance with the
brake disc and rear wheel drive hub installed.
1. Adjust:
● Rear wheel static balance
Refer to “ADJUSTING THE FRONT WHEEL
STATIC BALANCE” on page 4-12.
EAS22160
INSTALLING THE REAR WHEEL
1. Lubricate:
●
Wheel axle
●
Wheel bearings
●
Oil seal lips
2. Install:
●
Collar
●
Rear brake caliper assembly
●
Rear wheel
●
Indicator plate
● Washer
●
Rear wheel axle
3. Adjust:
●
Drive chain slack
Refer to “ADJUSTING THE DRIVE CHAIN
SLACK” on page 3-18.
Rear wheel sensor lead holder
bolt
7 Nm (0.7 m·kgf, 5.1 ft·lbf)
a
T
R
.
.
3
4
4
Recommended lubricant
Lithium-soap-based grease
5
❄❉❂❋✧❇ ✥✤  

Yamaha 2009 Diversion XJ6S Specifications

General

Year	2009
Manufacturer	Yamaha
Model	Diversion XJ6S
Category	Motorcycle
Displacement	600 cc
Bore x Stroke	65.5 mm x 44.5 mm
Compression Ratio	12.2:1
Fuel System	Fuel Injection
Ignition	TCI
Transmission	6-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Rear Suspension	Swingarm
Front Tire	120/70 ZR17
Rear Tire	160/60 ZR17
Length	2, 120 mm
Width	770 mm
Height	1, 210 mm
Seat Height	785 mm
Wheelbase	1, 440 mm
Ground Clearance	140 mm
Fuel Capacity	17.3 liters
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-cylinder
Power	77.5 hp @ 10, 000 rpm
Front Brake	Dual disc
Rear Brake	245 mm disc
