Yamaha 2009 Diversion XJ6S User Manual

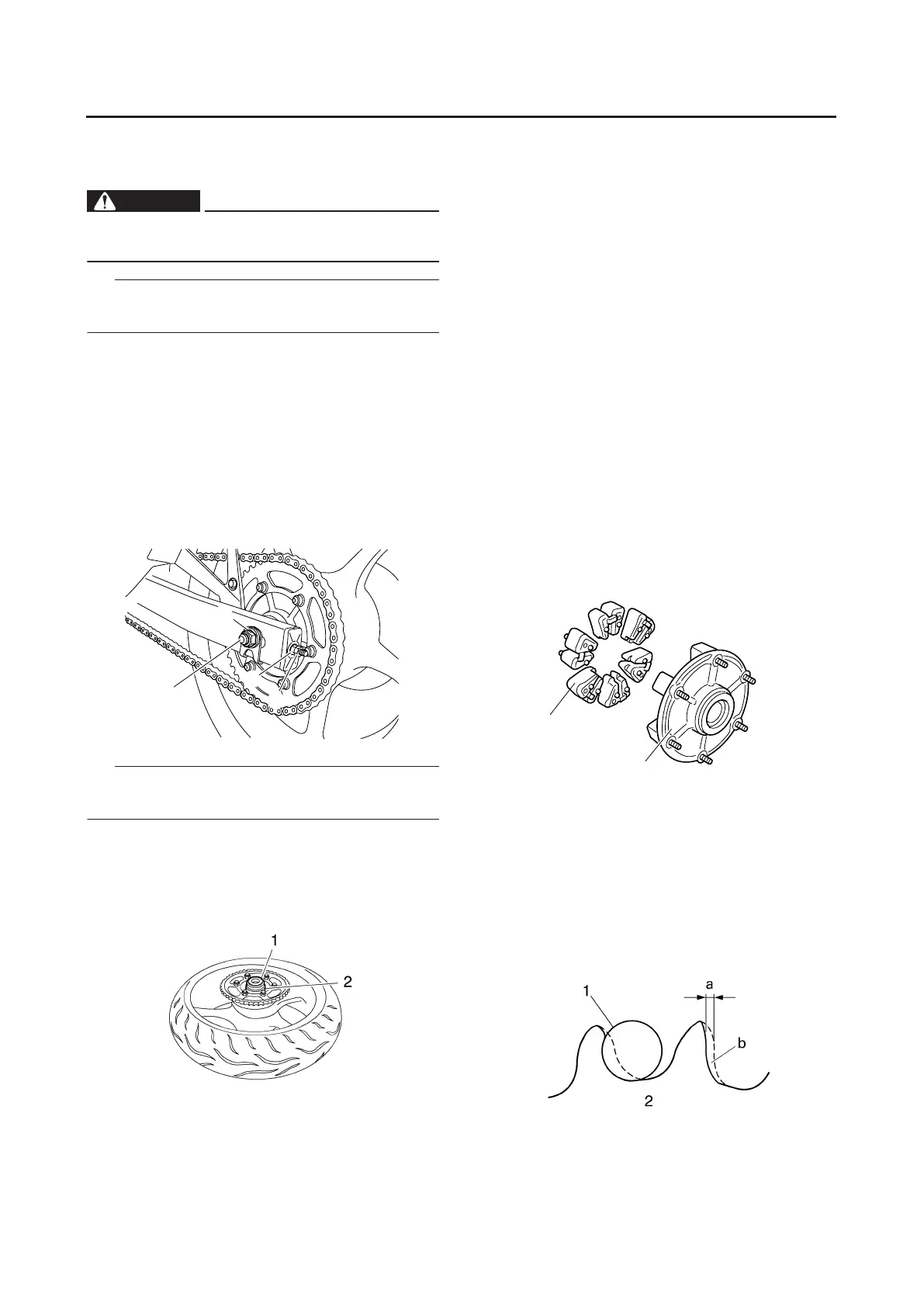

REAR WHEEL
4-18
EAS22040
REMOVING THE REAR WHEEL
1. Stand the vehicle on a level surface.
WARNING
EWA13120
Securely support the vehicle so that there is
no danger of it falling over.
TIP
Place the vehicle on the centerstand so that the
rear wheel is elevated.
2. Loosen:
●
Locknut “1”
●
Adjusting nut “2”
3. Remove:
●
Wheel axle nut “3”
●
Rear wheel axle “4”
●
Indicator plate
● Washer
●
Rear wheel
●
Rear brake caliper assembly
TIP
Push the rear wheel forward and remove the
drive chain from the rear wheel sprocket.
4. Remove:
●
Left collar “1”
●
Rear wheel drive hub “2”
●
Rear wheel drive hub damper
●
Right collar (XJ6S)
EAS22090
CHECKING THE REAR WHEEL
1. Check:
●
Wheel axle
●
Rear wheel
●
Wheel bearings
●
Oil seals
Refer to “CHECKING THE FRONT WHEEL”
on page 4-8.
2. Check:
●
Tire
●
Rear wheel
Damage/wear → Replace.
Refer to “CHECKING THE TIRES” on page
3-16 and “CHECKING THE WHEELS” on
page 3-16.
3. Measure:
●
Radial wheel runout
●
Lateral wheel runout
Refer to “CHECKING THE FRONT WHEEL”
on page 4-8.
EAS22110
CHECKING THE REAR WHEEL DRIVE HUB
1. Check:
●
Rear wheel drive hub “1”
Cracks/damage → Replace.
●
Rear wheel drive hub dampers “2”
Damage/wear → Replace.
EAS22120
CHECKING AND REPLACING THE REAR
WHEEL SPROCKET
1. Check:
●
Rear wheel sprocket
More than 1/4 tooth “a” wear → Replace the
rear wheel sprocket.
Bent teeth → Replace the rear wheel sprock-
et.
1
2
3
4
b. Correct
1. Drive chain roller
2. Rear wheel sprocket
1
2
❄❉❂❋✧❇ ✤✫  

Yamaha 2009 Diversion XJ6S Specifications

General

Year	2009
Manufacturer	Yamaha
Model	Diversion XJ6S
Category	Motorcycle
Displacement	600 cc
Bore x Stroke	65.5 mm x 44.5 mm
Compression Ratio	12.2:1
Fuel System	Fuel Injection
Ignition	TCI
Transmission	6-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Rear Suspension	Swingarm
Front Tire	120/70 ZR17
Rear Tire	160/60 ZR17
Length	2, 120 mm
Width	770 mm
Height	1, 210 mm
Seat Height	785 mm
Wheelbase	1, 440 mm
Ground Clearance	140 mm
Fuel Capacity	17.3 liters
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-cylinder
Power	77.5 hp @ 10, 000 rpm
Front Brake	Dual disc
Rear Brake	245 mm disc
