OIL PUMP
5-40
EAS24920
OIL PUMP

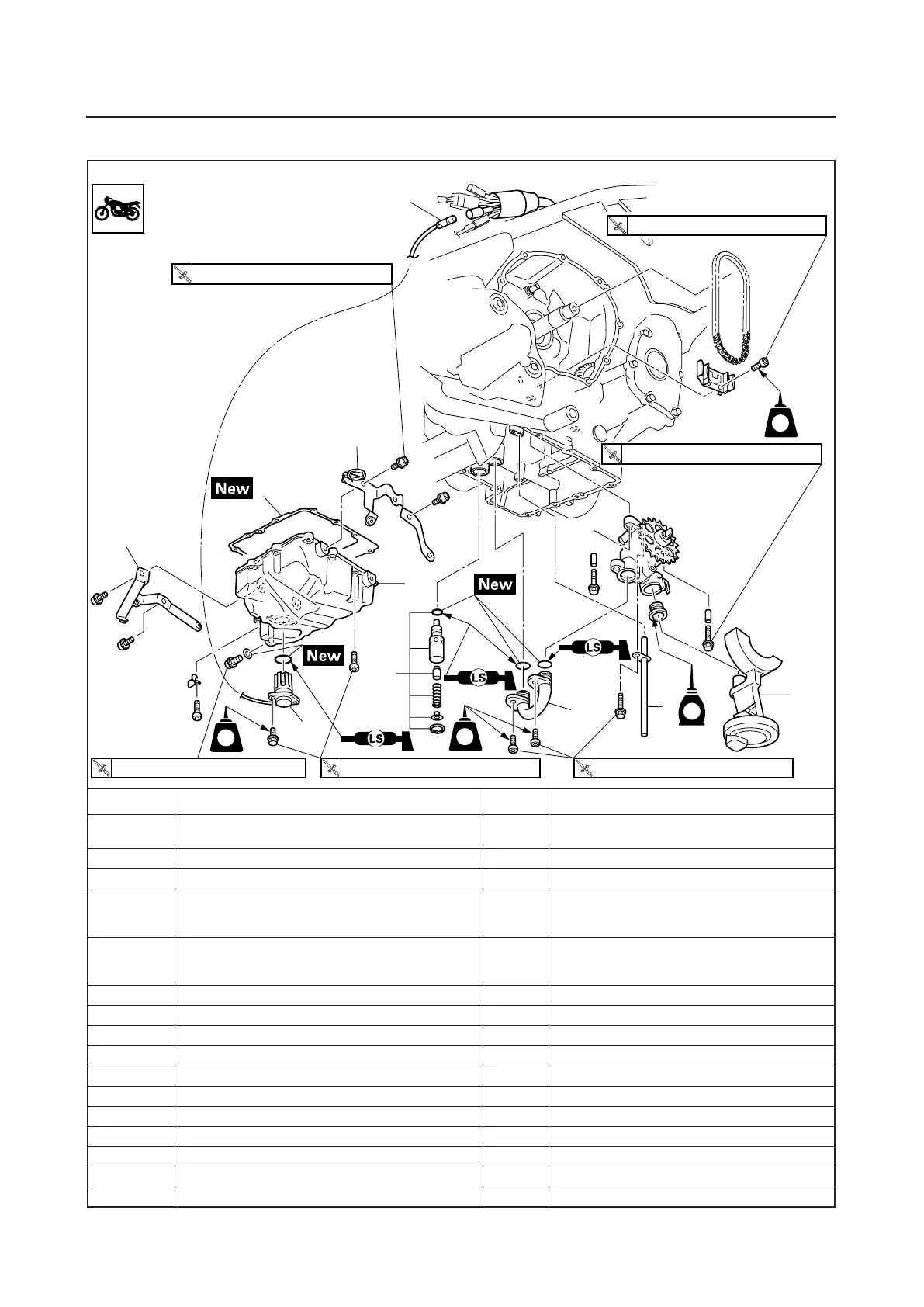

Removing the oil pan and oil pump
Order Job/Parts to remove Q’ty Remarks
Seat
Refer to “GENERAL CHASSIS” on page
4-1.
Fuel tank Refer to “FUEL TANK” on page 7-1.
Clutch assembly Refer to “CLUTCH” on page 5-47.
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-24.
Coolant
Drain.
Refer to “CHANGING THE COOLANT” on
page 3-27.
Exhaust pipe assembly Refer to “ENGINE REMOVAL” on page 5-1.
Water pump Refer to “WATER PUMP” on page 6-9.
1 Oil level switch lead coupler 1 Disconnect.
2 Oil pan 1
3 Oil pan gasket 1
4 Oil strainer 1
5 Oil level switch 1
6 Bottom cowling bracket 2
7 Oil delivery pipe 1
8 Relief valve assembly 1
9 Oil pipe 1
E
10 Nm (1.0 m • kgf, 7.2 ft • Ibf)
1
2
3
4
5
6
6
7
8
9
LT
LT
LT
12 Nm (1.2 m • kgf, 8.7 ft • Ibf) 43 Nm (4.3 m • kgf, 30 ft • Ibf)
12 Nm (1.2 m • kgf, 8.7 ft • Ibf)
12 Nm (1.2 m • kgf, 8.7 ft • Ibf)
10 Nm (1.0 m • kgf, 7.2 ft • Ibf)
❄❉❂❋❇ ✧✣  
