ABS (ANTI-LOCK BRAKE SYSTEM)
4-49
EAS22760
ABS (ANTI-LOCK BRAKE SYSTEM)
EAS4B56003

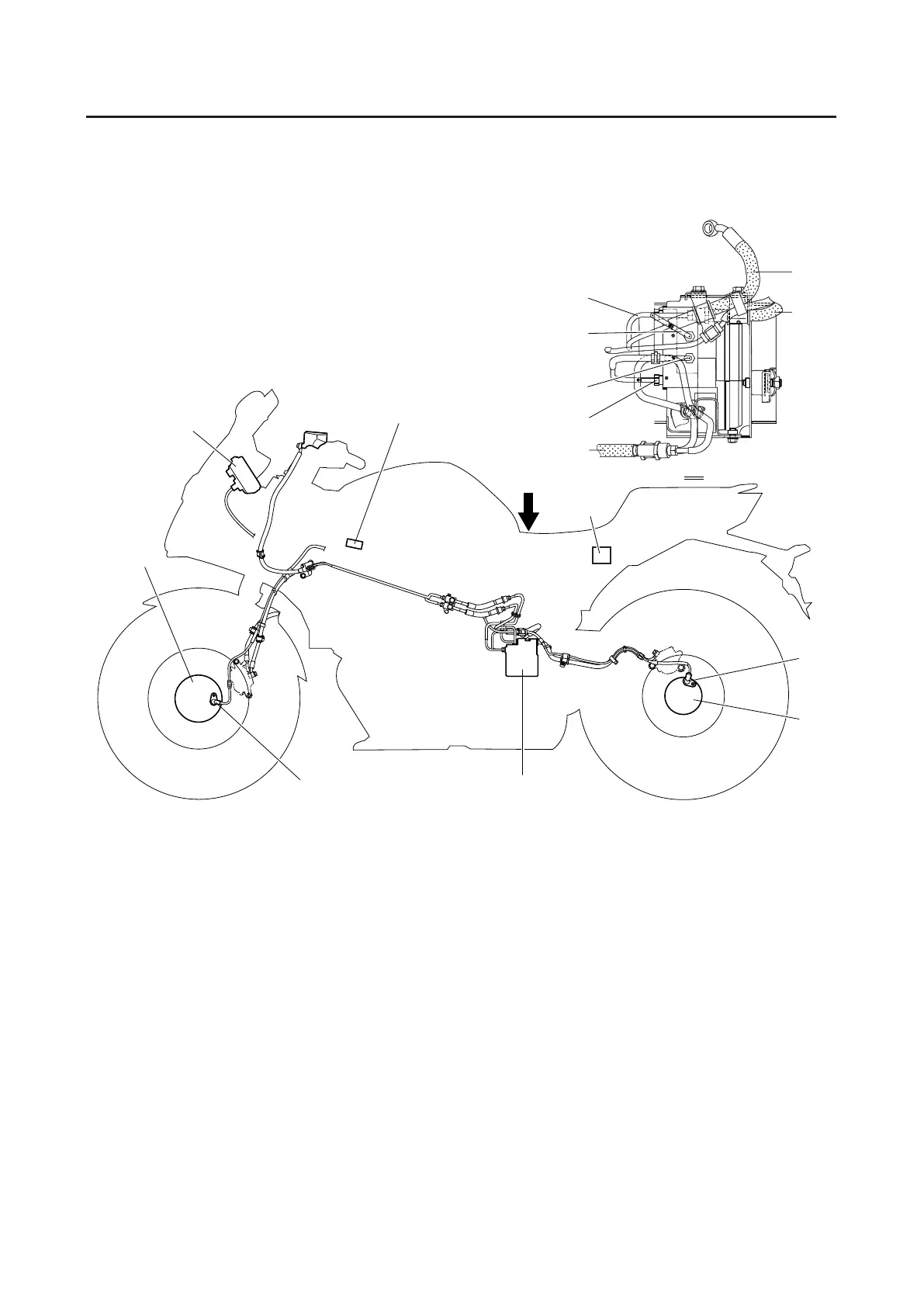

ABS COMPONENTS CHART
1
2
4
3
5
6
7
12
10
14
15
9
11
13
8
A
A
1. Hydraulic unit assembly
2. ABS warning light
3. Rear wheel sensor rotor
4. Rear wheel sensor
5. Front wheel sensor
6. Front wheel sensor rotor
7. ABS test coupler
8. Fuse box
9. Brake pipe/joint assembly (hydraulic unit to front
brake calipers)
10. Brake pipe/joint assembly (hydraulic unit to rear
brake caliper)
11. Brake pipe/joint assembly (front brake master
cylinder to hydraulic unit)
12. Brake pipe/joint assembly (rear brake master
cylinder to hydraulic unit)
13. Front brake hose (front brake master cylinder to
hydraulic unit)
14. Rear brake hose (rear brake master cylinder to
hydraulic unit)
15. Rear brake hose (hydraulic unit to rear brake
caliper)
❄❉❂❋✧❇ ✧✬  
