TRANSMISSION
5-82
EAS26300

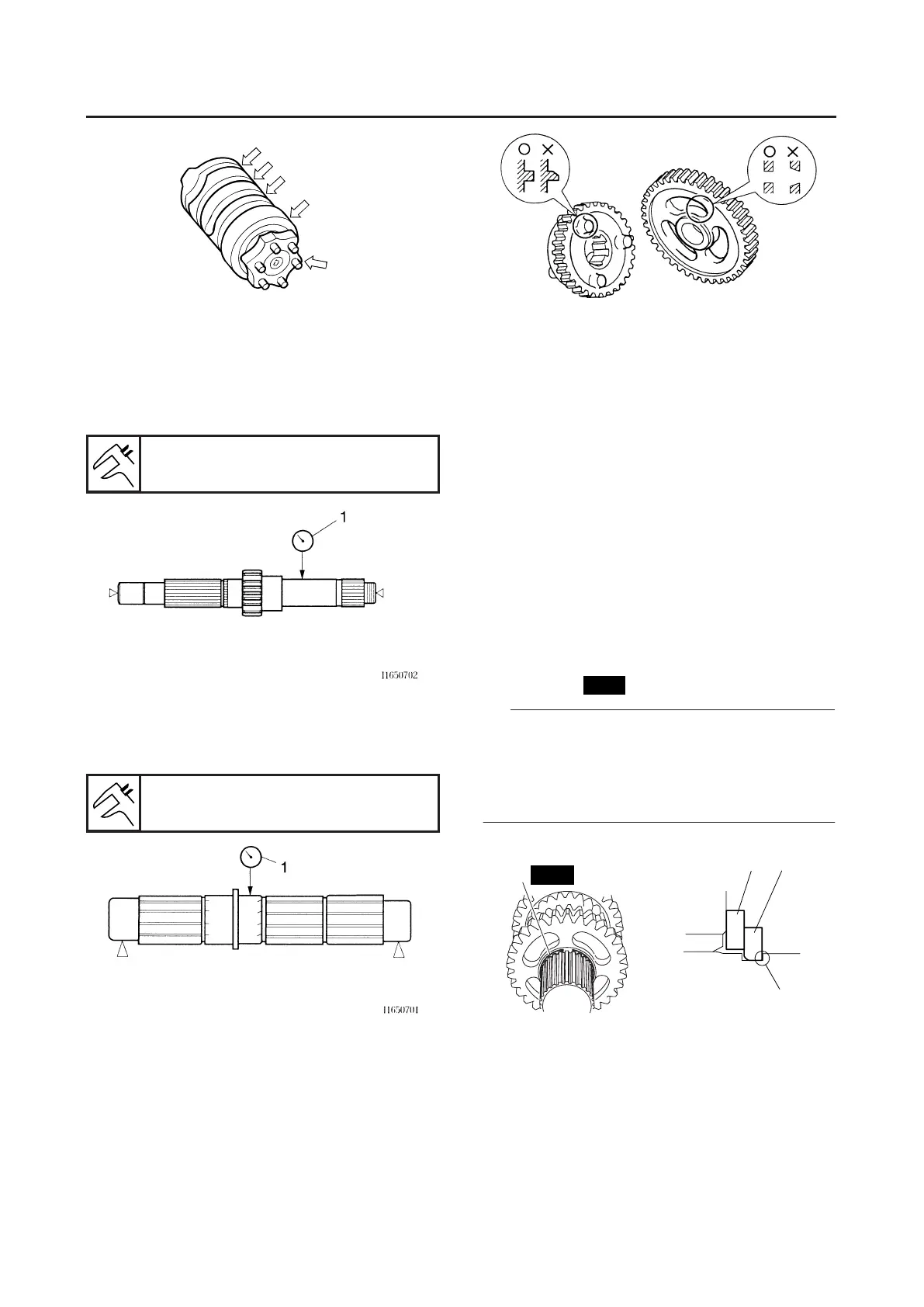

CHECKING THE TRANSMISSION
1. Measure:
●
Main axle runout
(with a centering device and dial gauge “1”)
Out of specification → Replace the main axle.
2. Measure:
● Drive axle runout
(with a centering device and dial gauge “1”)
Out of specification → Replace the drive axle.
3. Check:
●
Transmission gears
Blue discoloration/pitting/wear → Replace
the defective gear(s).
●
Transmission gear dogs
Cracks/damage/rounded edges → Replace
the defective gear(s).
4. Check:
●
Transmission gear engagement
(each pinion gear to its respective wheel
gear)
Incorrect → Reassemble the transmission
axle assemblies.
5. Check:
●
Transmission gear movement
Rough movement → Replace the defective
part(s).
6. Check:
●
Circlips
Bends/damage/looseness → Replace.
EAS20S13007
ASSEMBLING THE MAIN AXLE AND DRIVE
AXLE
1. Install:
●
Toothed washer “1”
●
Circlip “2”
TIP
●
Be sure the circlip sharp-edged corner “a” is
positioned opposite side to the toothed washer
and gear. (For main axle)
●
Install the circlip so that both ends “b” rest on
the sides of a spline “c” with both axles aligned.
Main axle runout limit
0.02 mm (0.0008 in)
Drive axle runout limit
0.02 mm (0.0008 in)
a
b
c
New
1
2
2
New
a
❄❉❂❋❇ ✫✥  
