SPEC

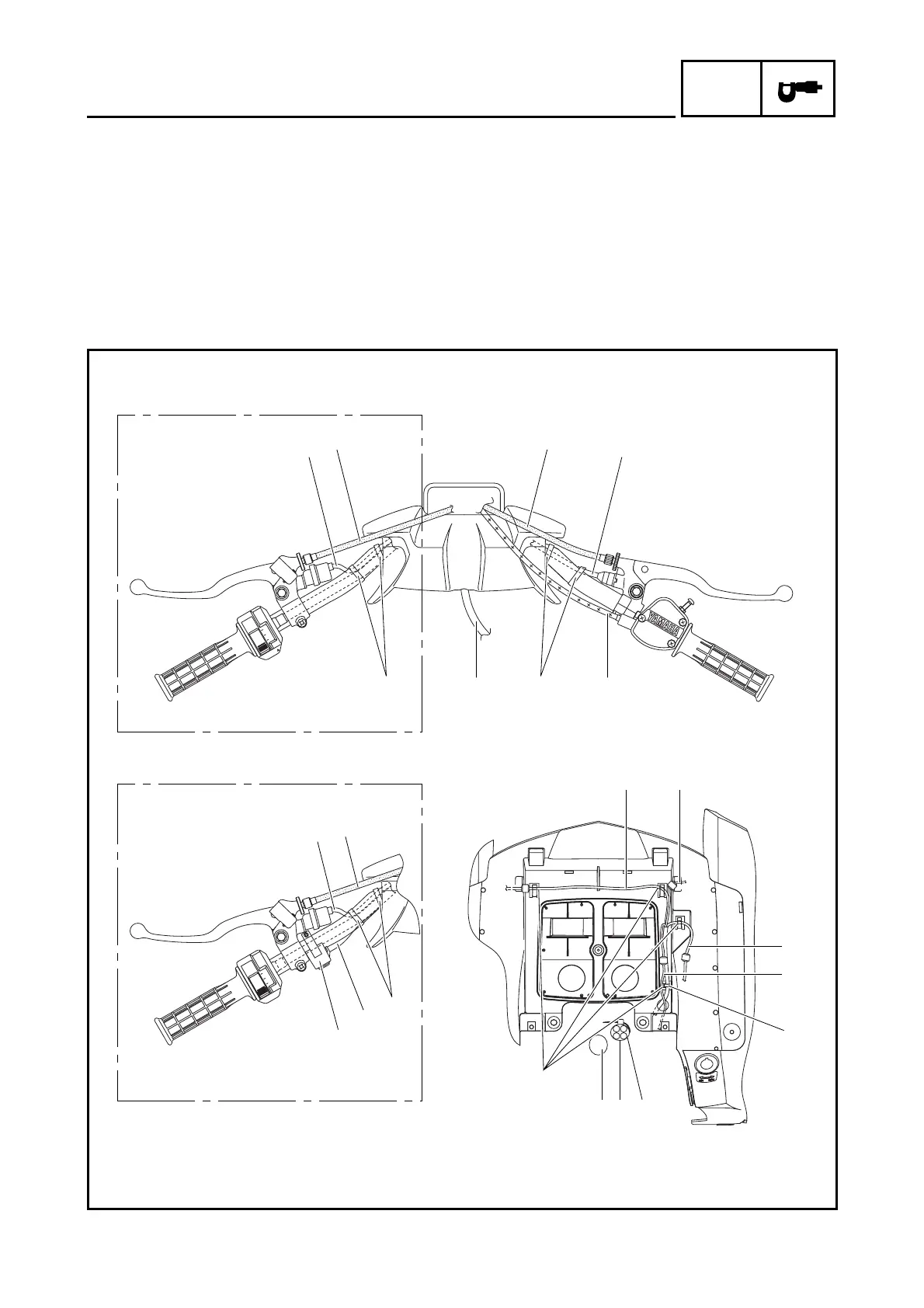

CABLE ROUTING
È Fasten the front brake switch lead with two plas-
tic bands.
É Fasten the rear brake switch lead and handlebar
switch lead with two plastic bands.
Ê Fasten the rear brake switch lead, handlebar
switch lead, and horn switch lead with two plas-
tic bands. (for Europe)
Ë Do not pull the wire harness after fastening it.
Ì When installing the front fender, do not pinch the
coupler cover.
Í Pass the leads and wire harness through the
guides on the front fender as shown.
