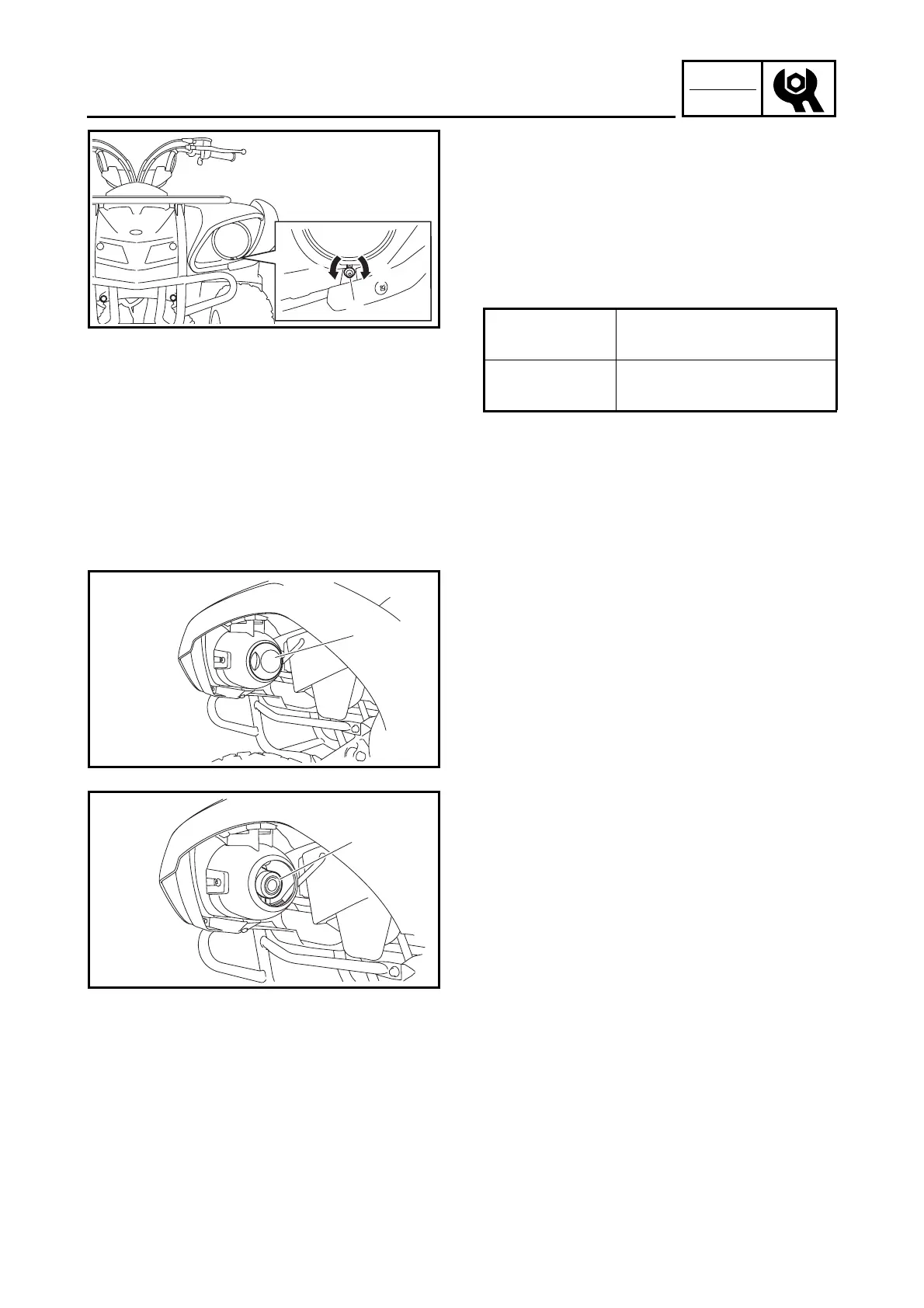

Yamaha 3FA-AE2 - HEADLIGHT ADJUSTMENT AND REPLACEMENT; Adjusting Headlight Beams; Replacing Headlight Bulb

– 22 –
CHK
ADJ
ADJUSTING THE HEADLIGHT BEAMS/
REPLACING A HEADLIGHT BULB
ELECTRICAL
EBS00122
ADJUSTING THE HEADLIGHT BEAMS
1. Adjust:
• headlight beam (vertically)
▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Turn the adjusting screw
1
in direction
a
or
b
.
▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
Direction
a
Headlight beam is
raised.
Direction
b
Headlight beam is
lowered.
b
1
a
EBS00124
REPLACING A HEADLIGHT BULB
1. Remove:
• headlight unit cover
1
1
2. Remove:
• headlight bulb holder cover
1
1
