– 6 –
SPEC

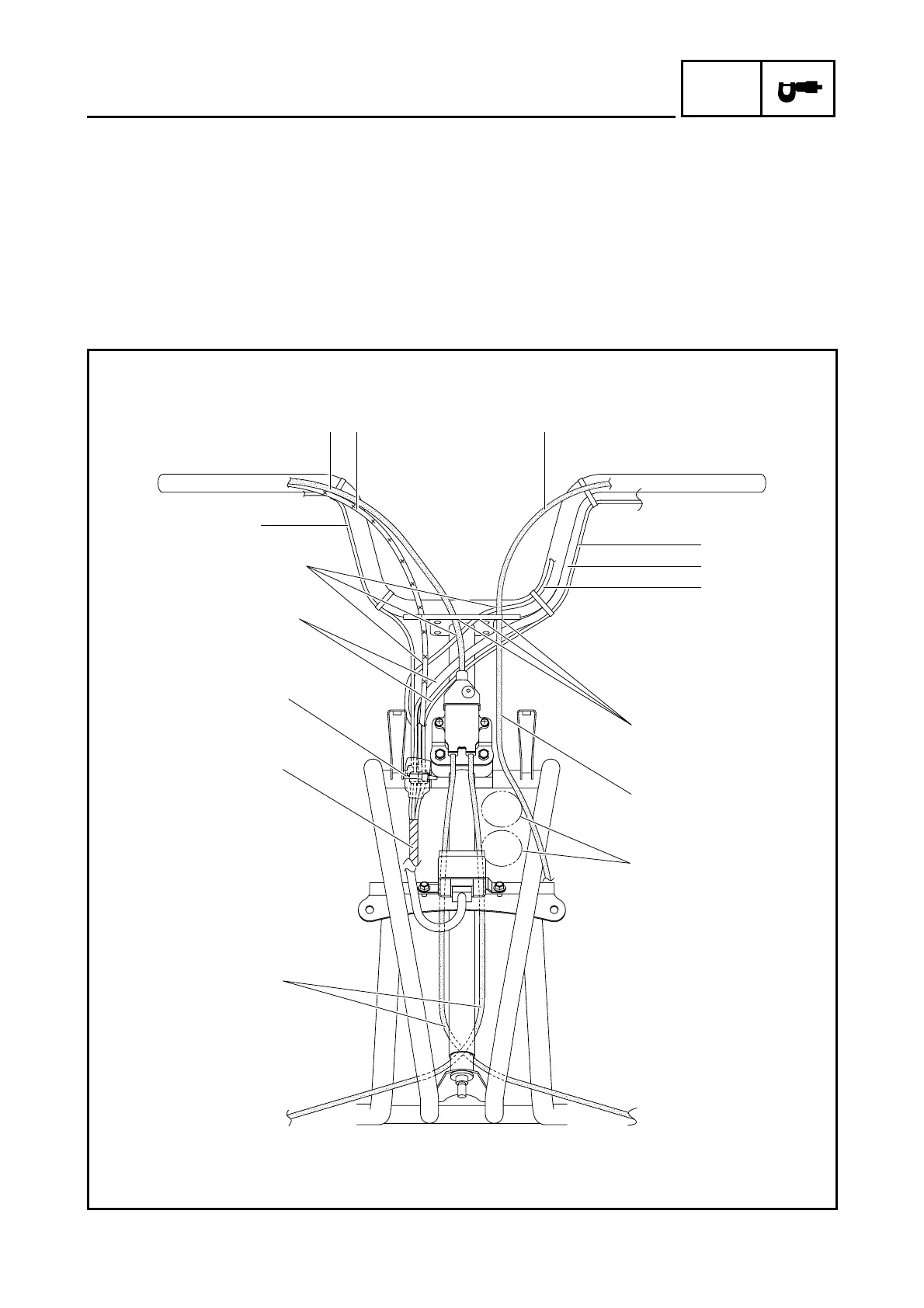

CABLE ROUTING
1 Front brake cable
2 Throttle cable
3 Rear brake cable
4 Rear brake switch lead
5 Handlebar switch lead
6 Horn switch lead (for Europe)
7 Wire harness
8 Front brake switch lead
È Pass the front brake cable and rear brake cable
through the cable guide. (for CDN and Oceania)
Pass the front brake cable, rear brake cable, and
horn switch lead through the cable guide. (for
Europe)
É Route the rear brake cable to the inside of the
front fender bracket.
Ê Pass the air duct inlet and outlet hoses between
the brake cables.
1 2 3
4
8
5
6
Î
È
É
Ê
Í
Ë
Ì
7
To Next Page
