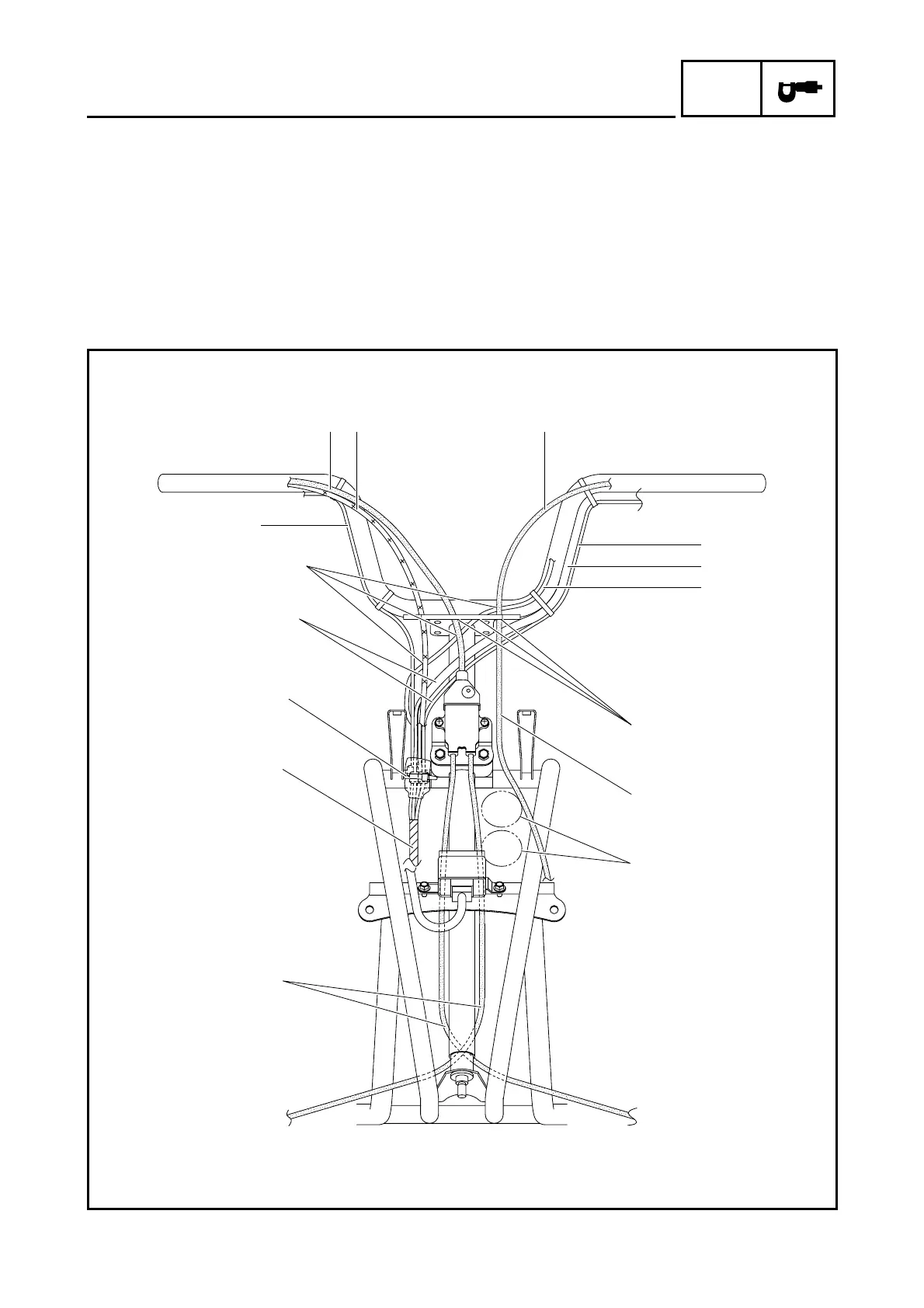

CABLE ROUTING
Ë Cross the front brake cables behind the steering
shaft. Route the right front brake cable in front of
the left front brake cable.
Ì Put the cover on the couplers, and then fasten a
plastic band around the middle of the cover.
Í Route the rear brake switch lead and the handle-
bar switch lead behind the throttle cable and the
rear brake cable.
Î Route the horn switch lead behind the coupler
cover, throttle cable, front brake cable, and rear
brake cable. (for Europe)
