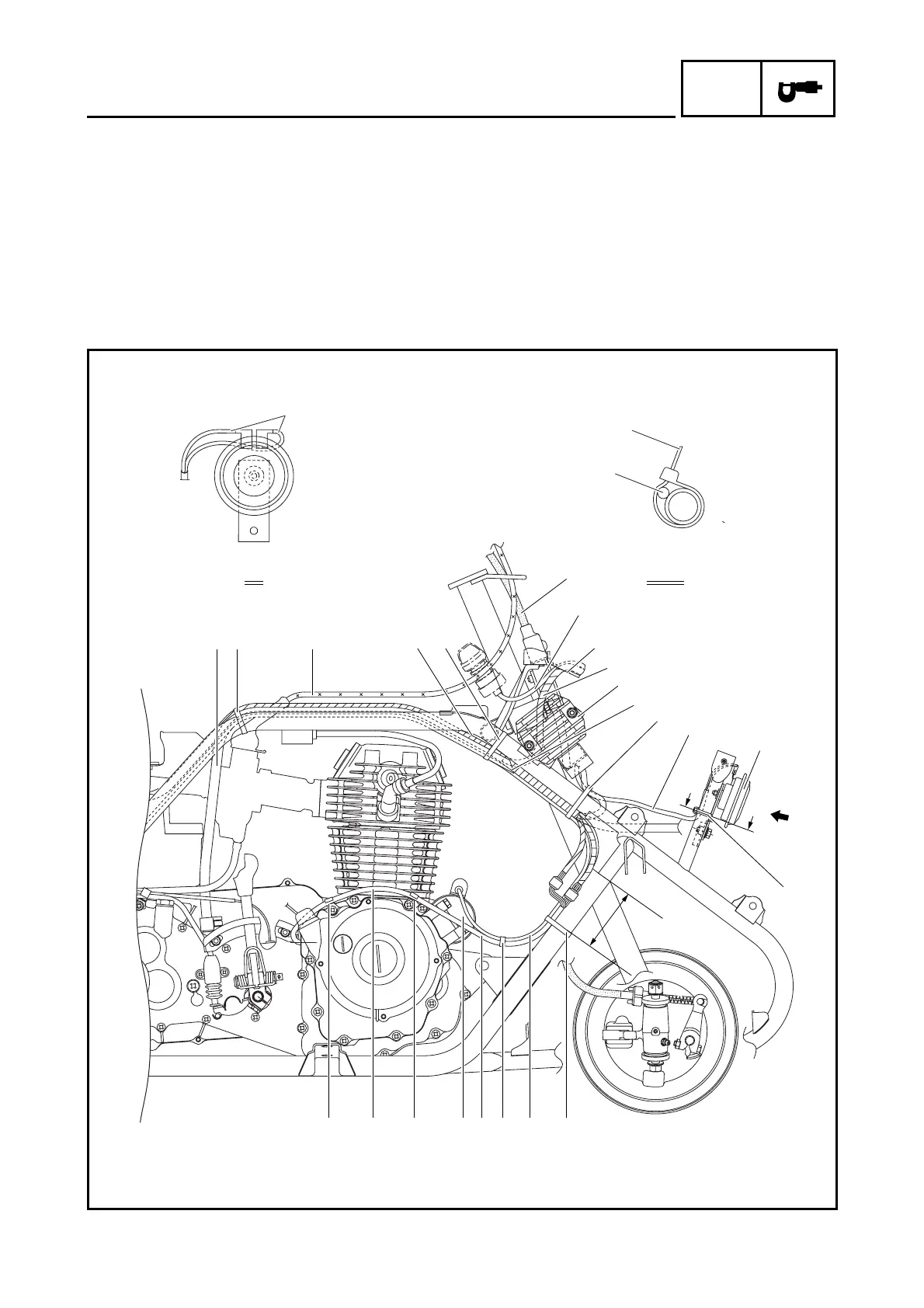

CABLE ROUTING
1 Transmission case breather hose
2 Throttle cable
3 Front brake cable
4 Main switch lead
5 Wire harness
6 Rectifier/regulator
7 Horn lead (for Europe)
8 Horn (for Europe)
9 Starter motor lead
0 A.C. magneto lead
A Starter motor
È Fasten the wire harness, starter motor lead, and
transmission case breather hose to the frame
with a plastic band.
É Route the wire harness, starter motor lead, and
the transmission case breather hose under the
frame cross member.
