– 9 –
SPEC

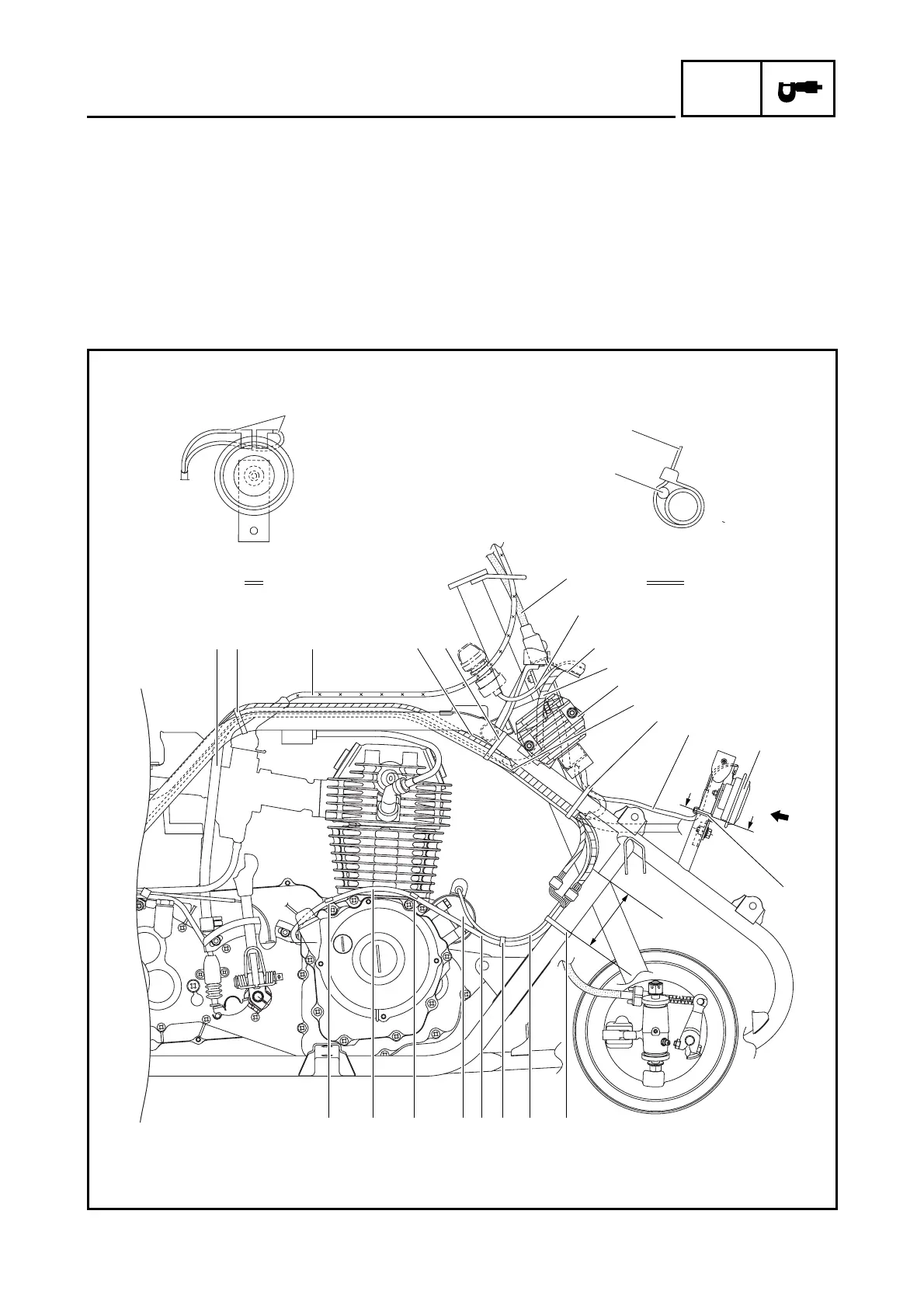

CABLE ROUTING
Ê Fasten the wire harness, starter motor lead, and
transmission case breather hose to the frame
with a plastic band. Be sure not to pinch the
transmission case breather hose. The end of the
plastic band should be toward the front of the
vehicle, facing inward.
Ë Pass the main switch lead and wire harness
through the hole in the front fender. Do not leave
any slack in the main switch lead and wire har-
ness under the front fender.
Ì Face the end of the transmission case breather
hose down.
Í Fasten the wire harness, starter motor lead, and
rectifier/regulator lead to the frame with a plastic
band. (for CDN and Oceania)
Fasten the wire harness, starter motor lead, rec-
tifier/regulator lead, and horn lead to the frame
with a plastic band. (for Europe)
Î Fasten the horn lead to the front fender bracket
with a plastic band just above the horn bracket.
(for Europe)
A B-B
7
7
Ô
1
È
2
3
4
Ë
5
6
Ì
Í
Î
7
8
É
9
ÑÐ
0A
ÒÓÒ
Ê
B
A
B
Ï
