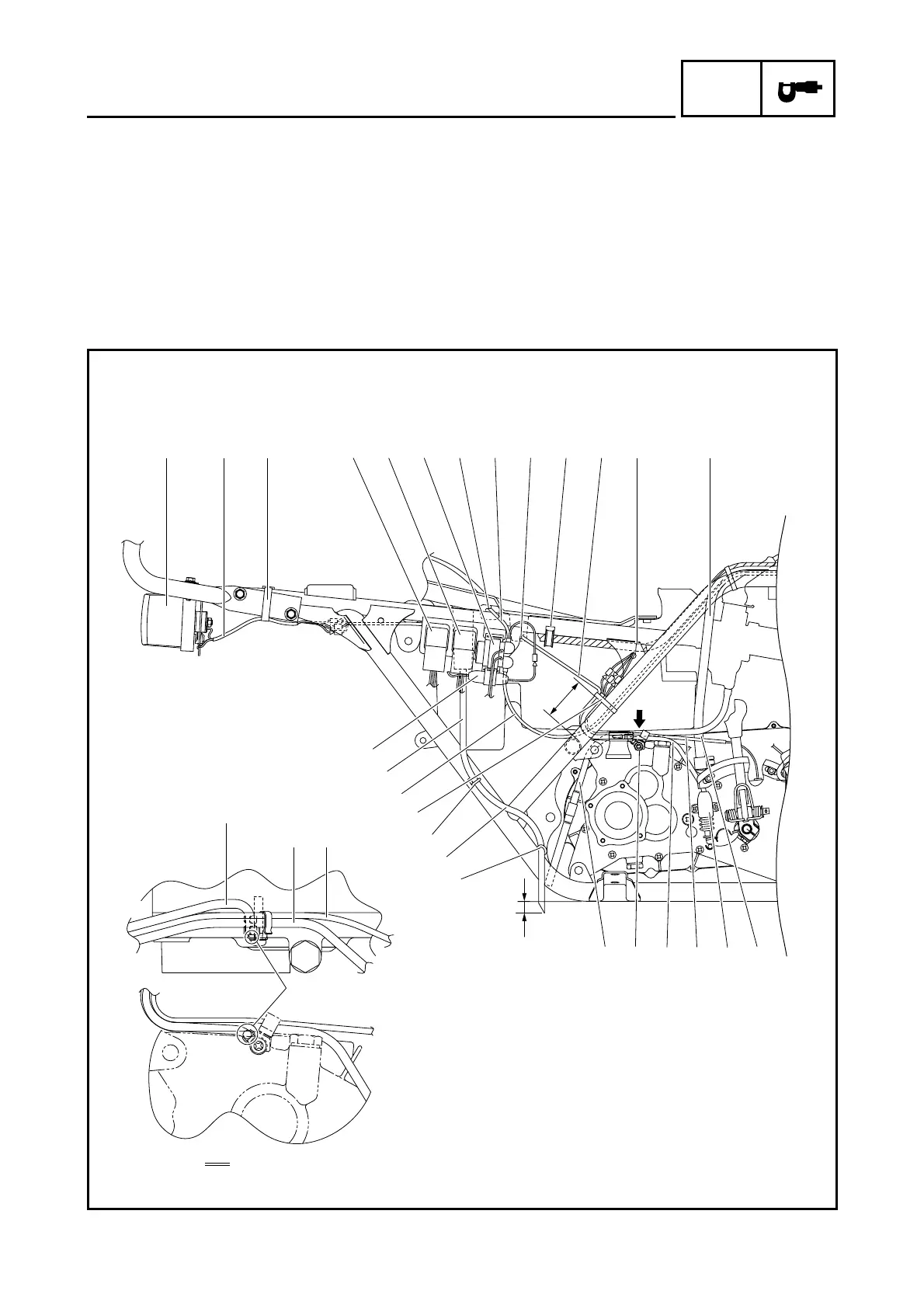

CABLE ROUTING
1 Tail/brake light
2 Tail/brake light lead
3 Reverse relay
4 Starting circuit cut-off relay
5 Starter relay
6 Positive battery lead
7 Negative battery lead
8 Transmission case breather hose
9 Reverse switch
0 Neutral switch lead
A Reverse switch lead
B Starter motor lead
C Battery breather hose
D Fuse holder
