Yamaha 3FA-AE2 - Page 21

– 13 –
SPEC

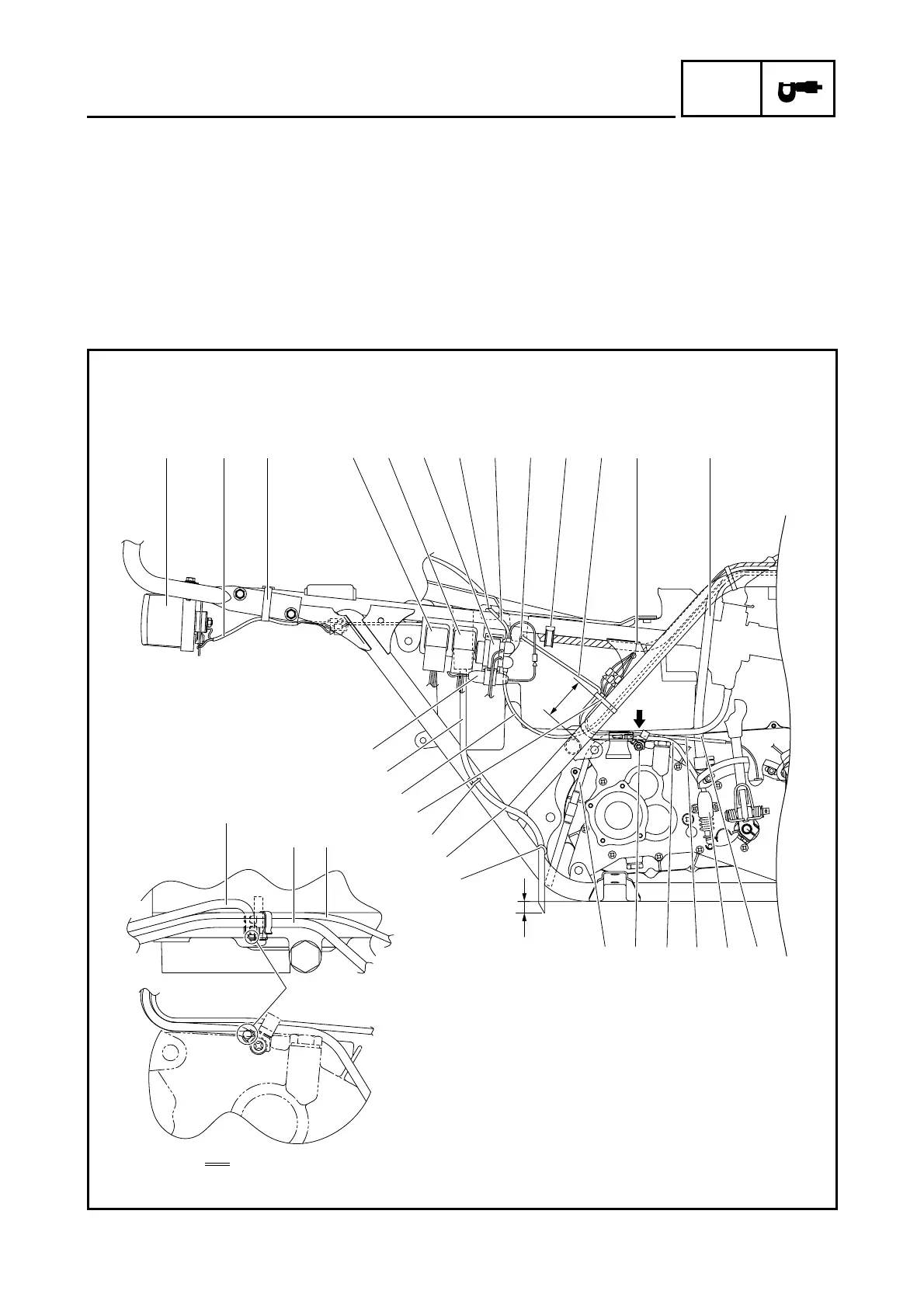

CABLE ROUTING
Ñ Pass the battery breather hose through the
guide.
Ò Route the battery breather hose so that there is
no slack.
Ó Fasten the negative battery lead, neutral switch
lead, reverse switch lead, and starter motor lead
to the frame with a plastic band. The end of the
plastic band should be toward the rear of the
vehicle, facing inward.
Ô 60 mm (2.36 in)
Õ Do not straighten the negative battery lead ter-
minal. The negative battery lead should be bent
as shown.
