– 14 –
SPEC

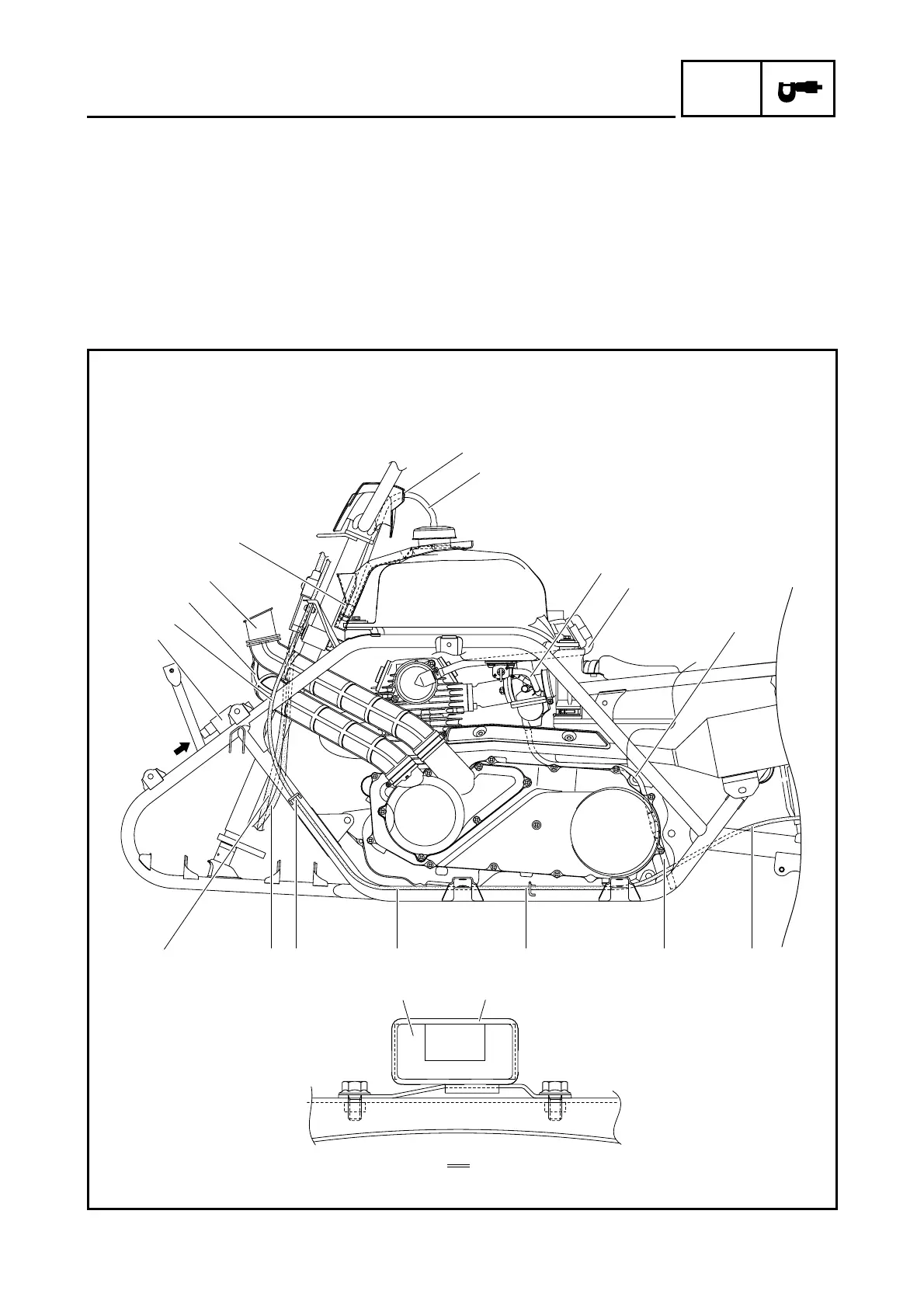

CABLE ROUTING
1 C.D.I. unit
2 Air duct inlet hose
3 Air duct outlet hose
4 Fuel tank breather hose
5 Fuel hose
6 Crankcase breather hose
7 Fuel overflow hose
8 Rear brake cable
9 Front brake cable (left)
0 Front brake cable (right)
A C.D.I. unit holder
È Route the rear brake cable to the outside of the
frame.
É Place the end of the fuel tank breather hose in
the rubber fuel overflow tray.
Ê Pass the fuel tank breather hose through the
hole in the handlebar cover.
Ë Route the fuel overflow hose to the outside of
the engine bracket. Keep the hose as far away
as possible from the exhaust pipe.
Ì Pass the rear brake cable through the swingarm.
Í Pass the rear brake cable through the guide.
A
A1
Ê
É
3
0 9 8 7
Í Í Ì
2
È
1
4
5
6
Ë
A
