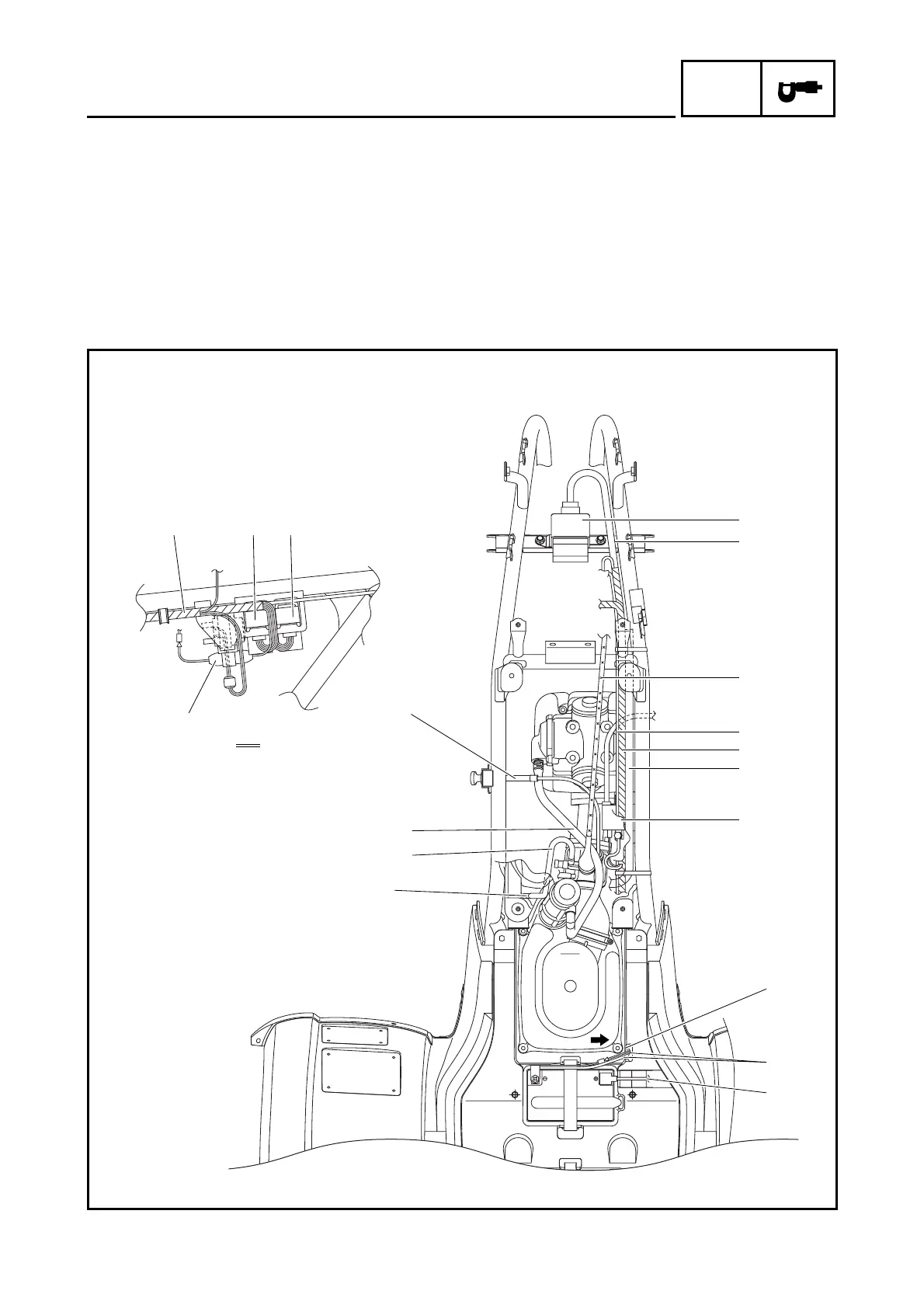

CABLE ROUTING
1 C.D.I. unit
2 Throttle cable
3 Starter motor lead
4 Wire harness
5 Transmission case breather hose
6 Ignition coil
7 Negative battery leads
8 Positive battery lead
9 Air vent hose
0 Crankcase breather hose
A Starter cable
B Starting circuit cut-off relay
C Reverse relay
D Fuse holder
