– 16 –
SPEC

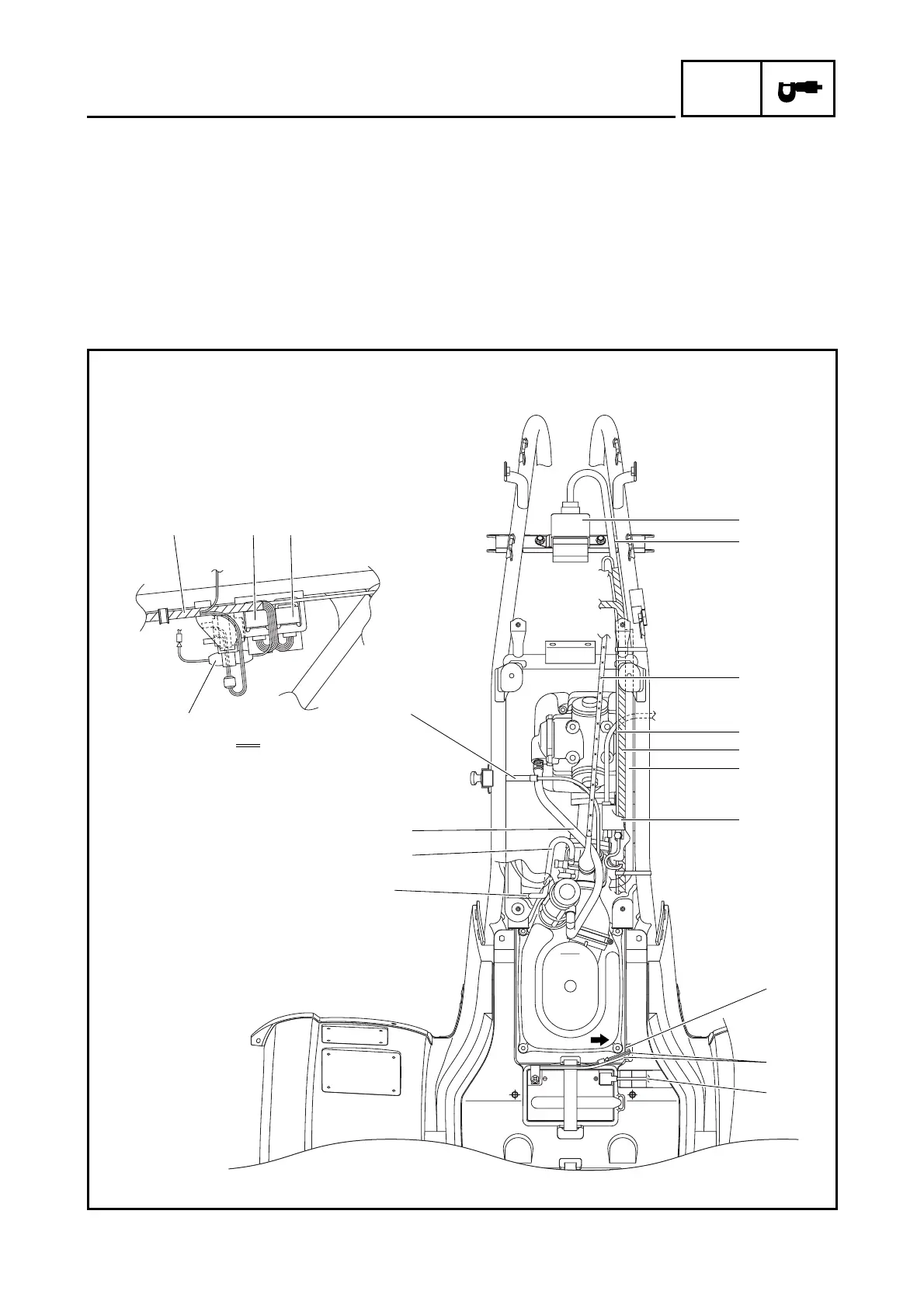

CABLE ROUTING
È Route the C.D.I. unit lead over the front shock
absorber bracket.
É Route the negative battery leads under the
frame.
Ê Route the positive battery lead over the frame.
Ë Pass the air vent hose through the hole in the
fuel tank from the top. The end of the air vent
hose should extend 15 ~ 20 mm (0.59 ~ 0.79 in)
from the hole.
Ì Do not kink the air vent hose.
Í Pass the crankcase breather hose between the
starter cable and throttle cable.
Î Route the starter cable over the crankcase
breather hose and under the throttle cable.
1
2
3
4
5
6
É
7
8Ê
È
ÎA
Í0
Ì9
Ë
4 B
D
C
A
A
