5-29

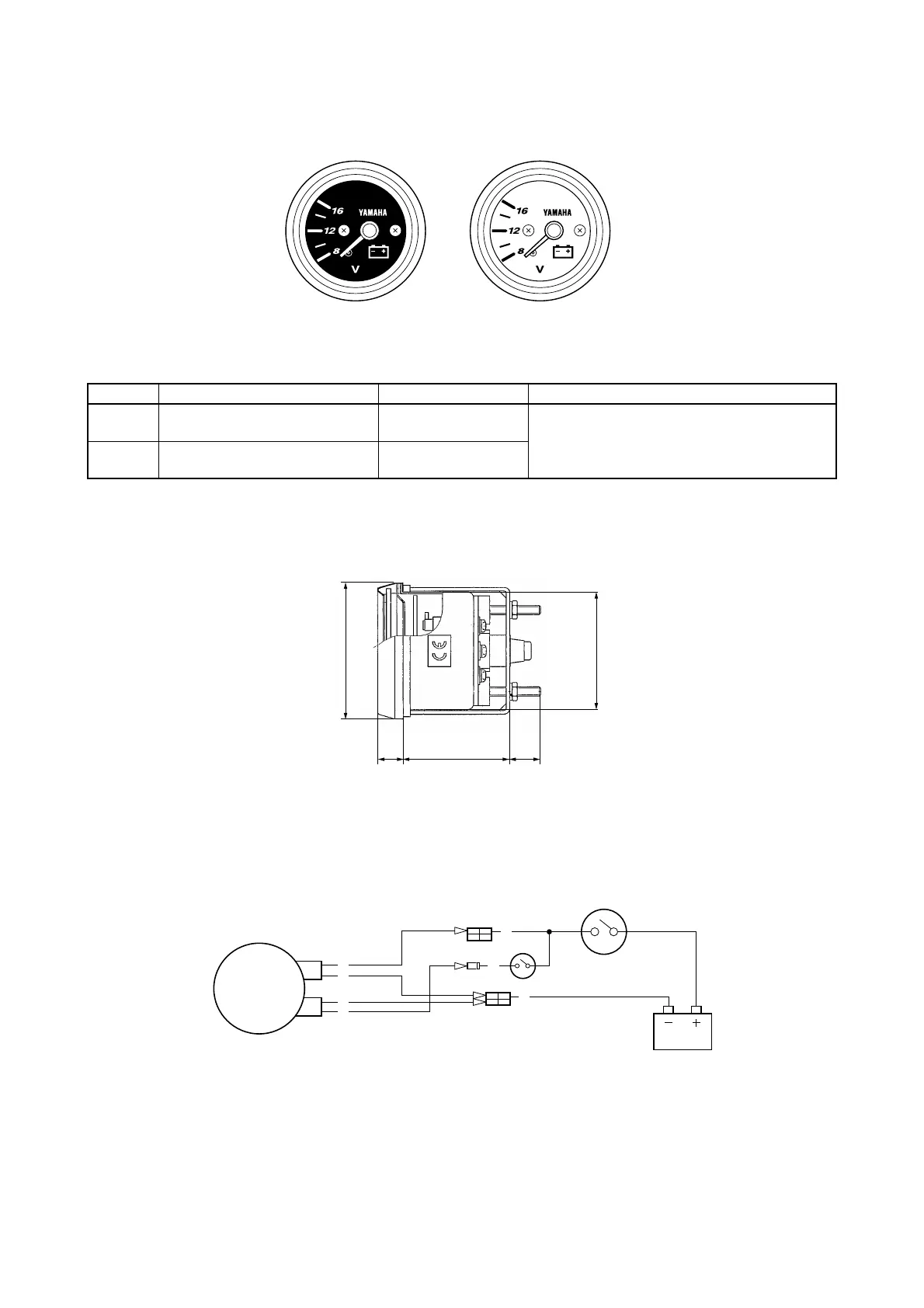

VOLTAGE METER
The voltage meter provides information about the charging condition of the battery.
VOLTAGE METER TYPES AND APPLICATIONS
VOLTAGE METER DIMENSIONS
WIRING THE VOLTAGE METER
Ref. No. Description Part No. Applicable model
1
DC 12 volt power supply
Black panel
6Y7-83503-00
All electrical start models
2
DC 12 volt power supply
White panel
6Y7-83503-10
12
60 (2.36)
11 (0.43)
46.6 (1.83)
13.7 (0.54)
52 (2.05)
mm (in.)
Y
B
B
L
Battery
IG switch
Voltage meter
Batt.+12V
Y
B
Lamp switch
L
