Yamaha 85AED - Example for Battery Cable Wiring (Twin Engine Application)

8-7
BATTERY WIRING

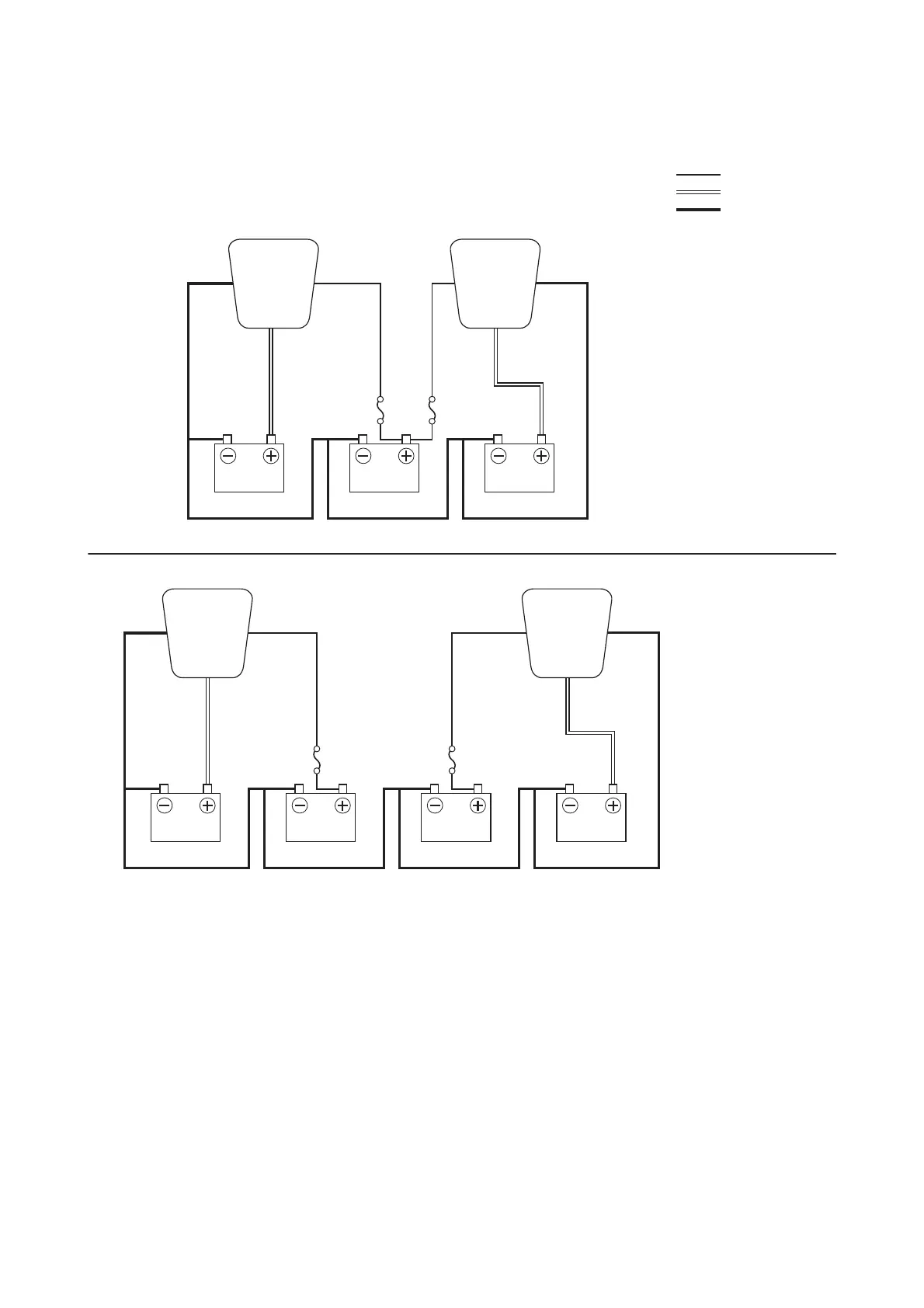

EXAMPLE FOR BATTERY CABLE WIRING (TWIN ENGINE APPLICATION)
Fuse
Fuse
Main battery (S) Main battery (P)House battery
Fuse
House battery (S) Main battery (P)House battery (P)
Fuse
Main battery (S)
Motor
(P)
Motor
(S)
Motor
(P)
Motor
(S)
Isolator cable
Battery cable (+)
Battery cable (–)
Applicable models:
* F150 (2009 and later model)
* F175/200 (L4-2.8L)
* F200/225 (V6-3.3L)
* F200/225/250 (V6-3.3L w/ VCT)
(2008 and later models)
* F225/250/300 (V6-4.2L)
* F350
Applicable models:
Isolator equipped models
